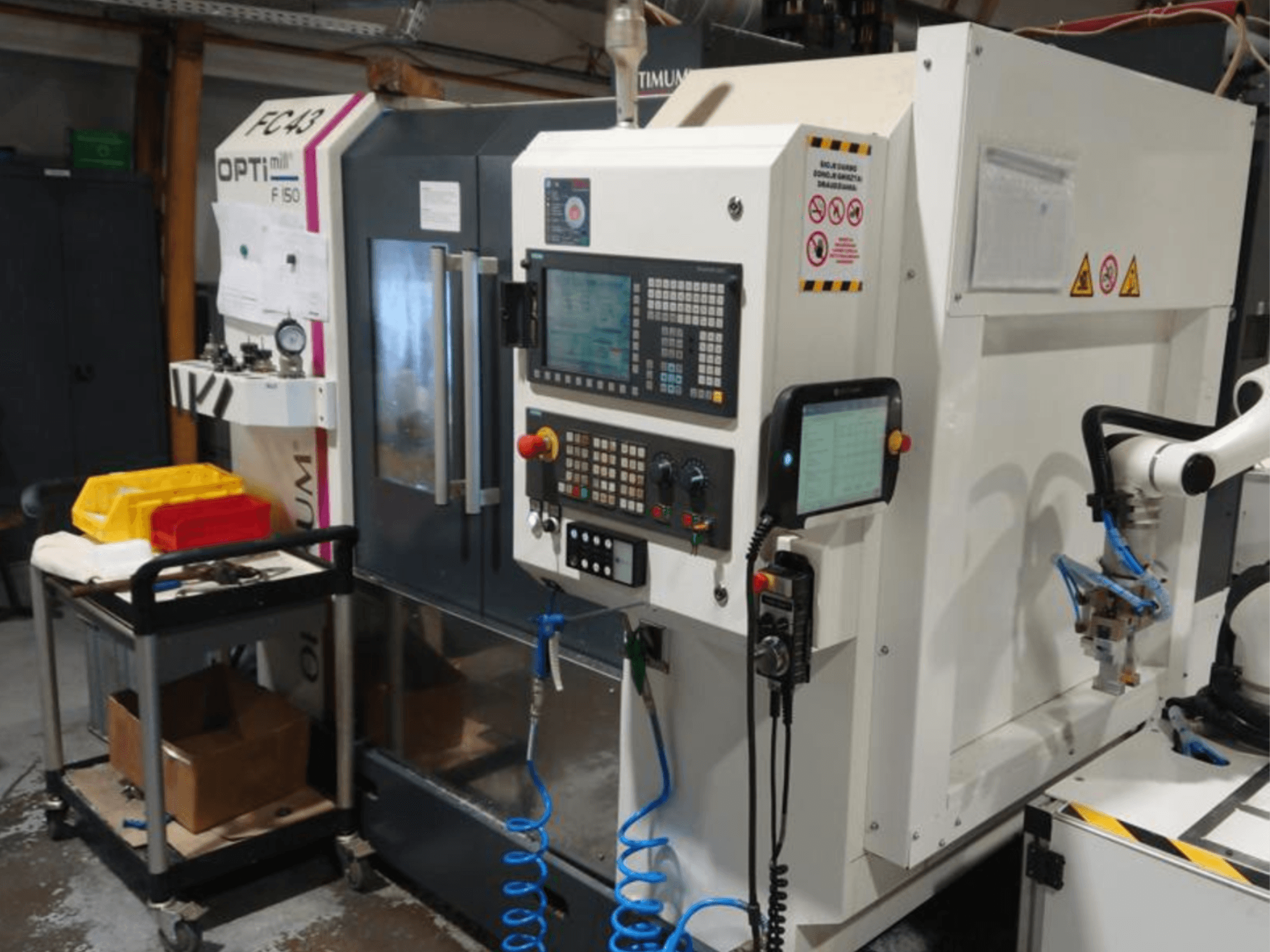

Optimum - Optimill F150LT-MIL-OPT-2017-00001

Siemens Sinumerik 828D

System software: SW 26x

CNC memory: 5 MB

Look Ahead: 100

Control cabinet with heat exchanger

Connections: RJ45 + USB + 230 V

Fast motion speed (X/Y/Z): 24000 mm/min

Feed speed (X/Y/Z): 10000 mm/min

Repetition accuracy: ±0.005 mm

Positioning accuracy: ±0.005 mm

Table size: 900 mm x 410 mm

T-slots: 4, 16 mm slots, 102 mm spacing

Maximum table load: 350 kg

Clearance spindle to table: Min 102 mm, Max 562 mm

Vertical spindle type: SK40 DIN 69871

Speed range: 10 – 10000 rpm

Power (S1): 9 kW

Power (S6 30%): 21.2 kW

Torque (S1): 57 Nm

Torque (S6 30%): 135 Nm

Vertical spindle reach: 480 mm

Number of tools supported: 256

Tool Changer: Carousel type

Tool capacity: 16 tools

Max. tool diameter: 89 mm

Max. tool weight: 8 kg

Tool change time (T–T): 9 s

Coolant tank: 210 L

Coolant pumps: 3 × 1.27 kW

Chip conveyor: Screw type

Integrated chip flush system

Portable electronic handwheel

Telescopic guideway covers (XYZ)

Machine light

High-torque servo drives on all axes

Recirculating ball rail system

SIEMENS 2-year warranty
