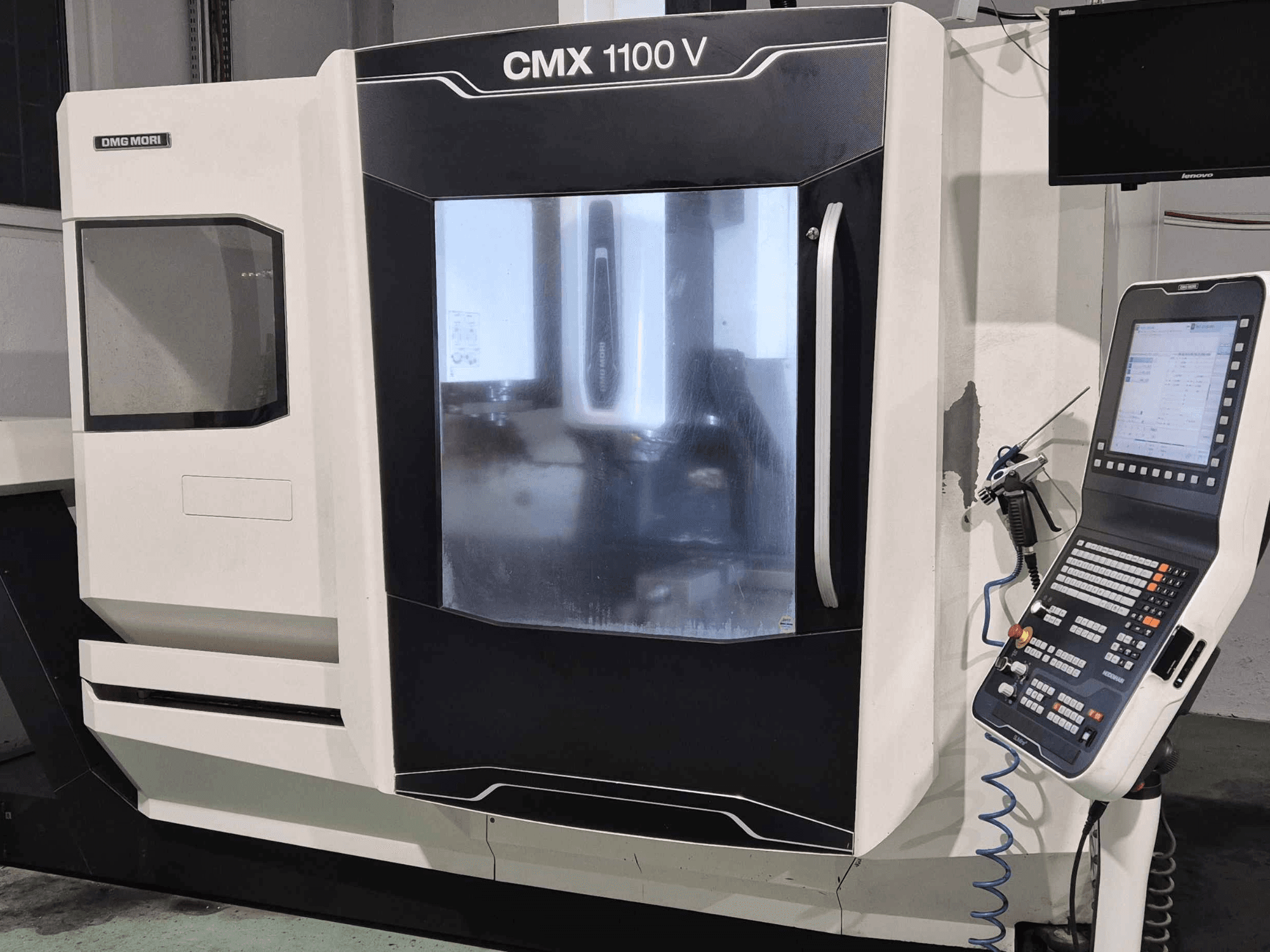

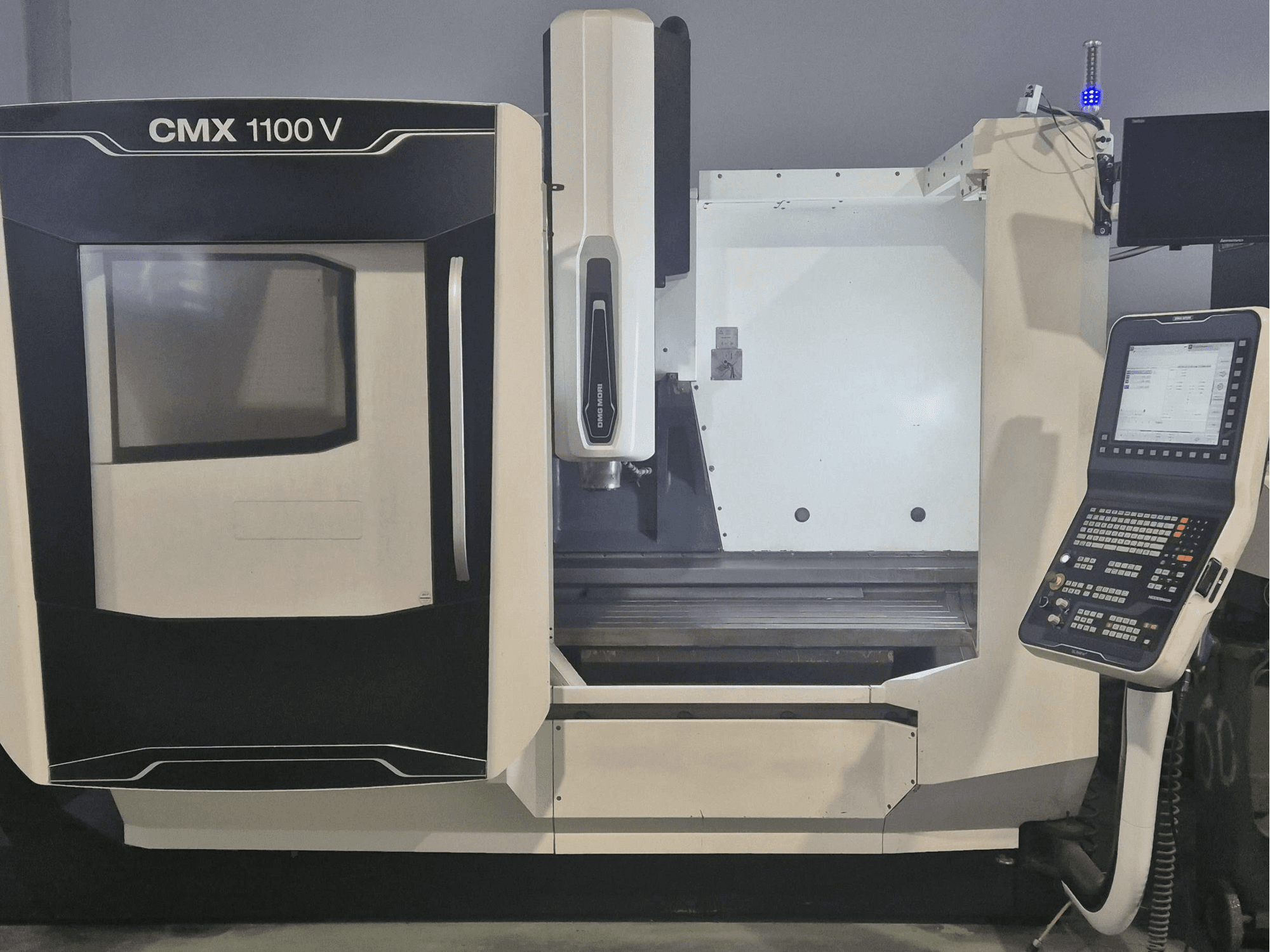

DMG MORI - CMX 1100 VPL-MIL-DMG-2017-00002

• Operating hours:

  • Spindle hours after replacement: 2,900 h

  • Spindle hours (machine counter): 32,420 h

  • Power-on hours (counter): 60,300 h

• Condition: Powered on and running in production; inspection possible (operation, geometry, overall condition)

• Worktable size: 1400 × 560 mm

• Axis dynamics: Rapid traverse 30 m/min (linear axes)

• Spindle:

  • Tool clamping: DIN 69872

• Tool magazine: 30-position chain-type magazine with double gripper

• Cooling/media: Coolant–air switching via M-function (external), chip tray

• CNC control: HEIDENHAIN TNC 620 (3D) with ASCII keyboard and 15" monitor

• Measuring systems: Direct measuring systems (linear scales) on X/Y/Z; air purge for measuring system

• Additional machine options:

  • Safe voltage package: X and Y axis motors with brake, overvoltage limiter, undervoltage monitoring with emergency stop trigger

• Software options – HEIDENHAIN:

  • Option 3 (#21): M120 tool radius compensation for contouring, LOOK AHEAD up to 99 blocks, 3D machining, M118 handwheel positioning during program execution

Additional equipment

• Scraper-type chip conveyor (left side)

• Coolant tank, 250 l

• Manual wash gun for machining area

• 4-color signal tower

• HEIDENHAIN probing package: Wireless workpiece measuring probe and probe calibration ring

• Manual handwheel (portable control panel)

Additional information

• A brand-new original DMG spindle was installed by DMG Service in November 2024

• The service report includes both the spindle measurements and the machine geometry measurements taken after the replacement
