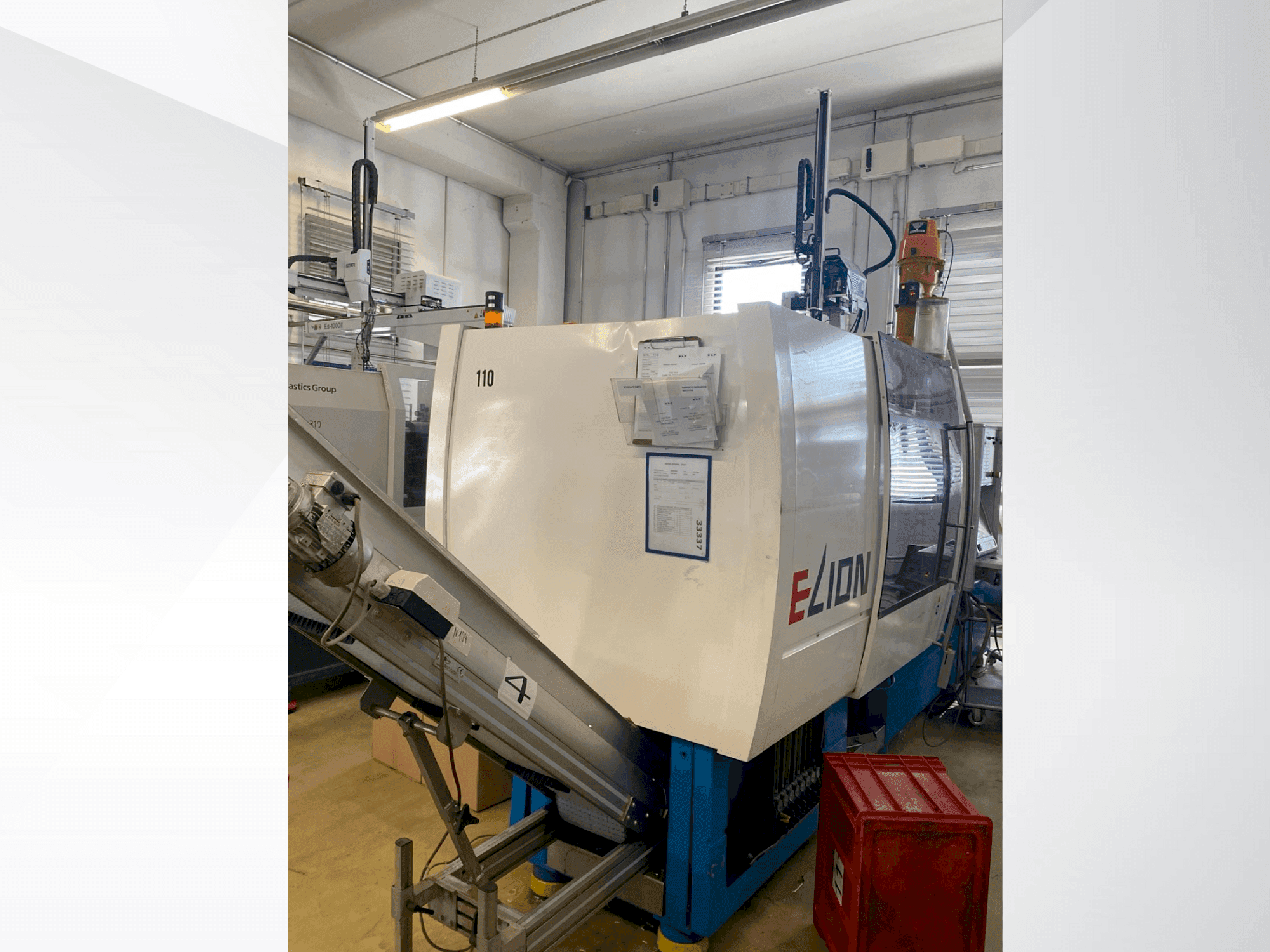

Netstal - ELION 800-270FCH-INJ-NET-2009-00001

Additional Equipment

• - Core pull: 0 units

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max metering stroke: 128 mm
  • - Max shot volume: 160. 8 cm³
  • - Standard injection flow rate: 314. 2 cm³/s // power injection flow rate: 565. 5 cm³/s
  • - Max injection speed standard/power: 250 / 450 mm/s // max screw speed force/speed/master: 400 / 530 / 550 rpm
  • - Max torque force: 480 nm // max torque speed: 330 nm // max torque master: 480 nm
  • - Heating capacity: 17. 7 kw
  • - Opening force: 800 kn // max retraction force: 27 kn
  • - Max mold weight: 1174 kg
  • - Dry cycle stroke: 1. 3 – 287 s – mm
  • - Nozzle contact force: 25 / 50 kn // nozzle retraction stroke: 510 mm
• Qualitative Machine Benefits:
  • - High injection pressure: 1690 bar
  • - High injection flow rate: 314. 2 cm³/s (standard), 565. 5 cm³/s (power)

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
