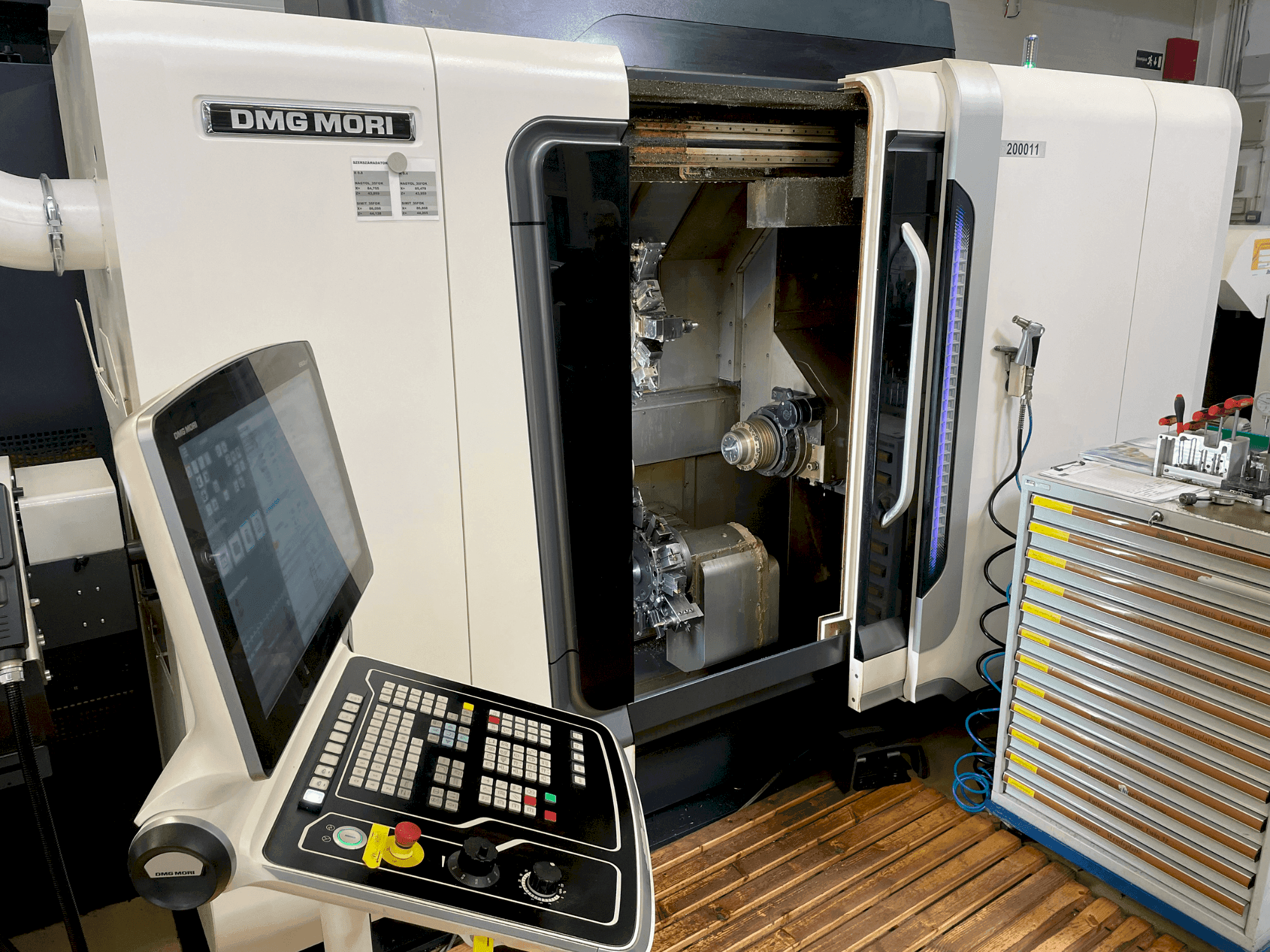

DMG MORI - Sprint 50 2THU-TUR-DMG-2018-00001

Machine Benefits

Technical Machine Benefits

• Control unit type: panel
• Control unit screen: siemens 840 d - sl
• Chuck mount diameter: 140 mm
• Self-centering diameter: 140 mm
• Spindle diameter: 120/15 mm
• Nominal torque (s1): 75 nm
• Travel: 145 mm(x3) / 380 mm(z3) / 510 mm (tailstock axis) / 220 mm x1 / 35 mm y1 / ±35 mm y2 / 350 mm z1 / 350 mm z2 / 125 mm x2
• Max. Speed: 30 mm/min(x3) / 60 mm/min(z3) / 3 mm/min (tailstock axis) / 30 mm/min x1 / 15 mm/min y1 / 15 mm/min y2 / 60 mm/min z1 / 60 mm/min z2 / 30 mm/min x2
• Max. Acceleration: 7 m/s²
• Nominal thrust: 3750 n(x3) / 3200 n(z3) / 3000 n (tailstock axis) / 4500 n x1 / 4500 n y1 / 4600 n y2 / 3200 n z1 / 3200 n z2 / 4500 n x2

Extra Information

Machine still under power
