Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MLM - Ploter CNCDE-MIL-MLM-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MLM Ploter CNC Milling machine
This MLM Ploter CNC Milling machine was manufactured in the year 2017 in Poland. It has 4 axis. The machine has a spindle speed of 18000 rpm.
Overview
- brand: MLM
- year: 2017
- MODEL: Ploter CNC
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
Technical Information - MLM Ploter CNC
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- The portal passage width is 2100 mm.
- The travel distances are approx. 1980 x 2970 mm.
- The spindle is a hiteco iso 30 tool change spindle with 8. 2 kw and rotates up tup to 24000. O
- An oscillating tangential knife is also installed.
Extra Information

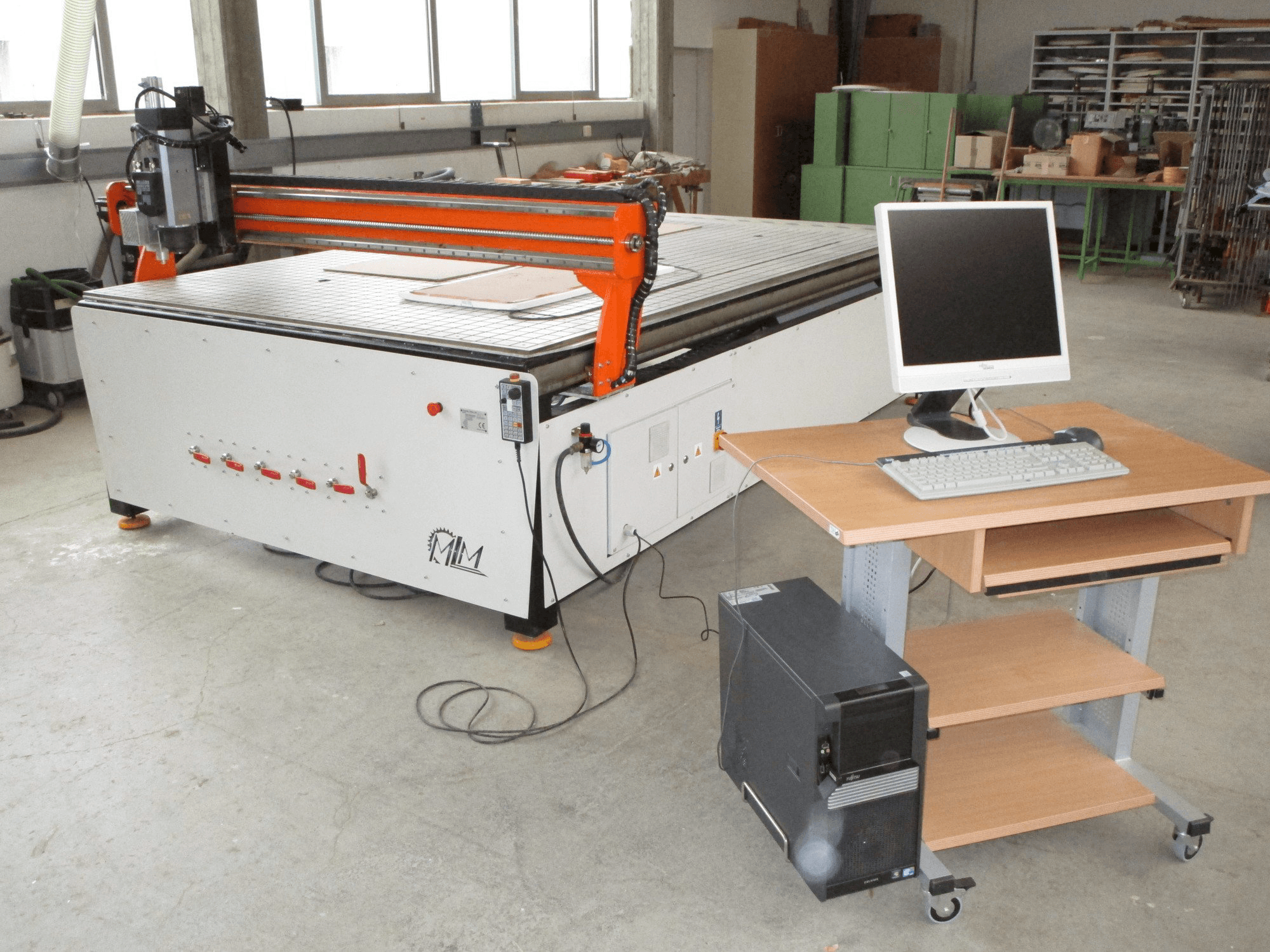

Portal milling machine with vacuum table 8 kW Tool change spindle and additional oscillating cutter with 4-axis Year of construction 2017. Very good condition. Very few operating hours. Spindle: Hiteco / 18000 RPM Equipped with tangential knife Working area approx. 2 x 3 m. Control system: CNC Graf control system from Boenigk with additional hand terminal Siemens workstation as control computer. Siemens side channel blower.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
