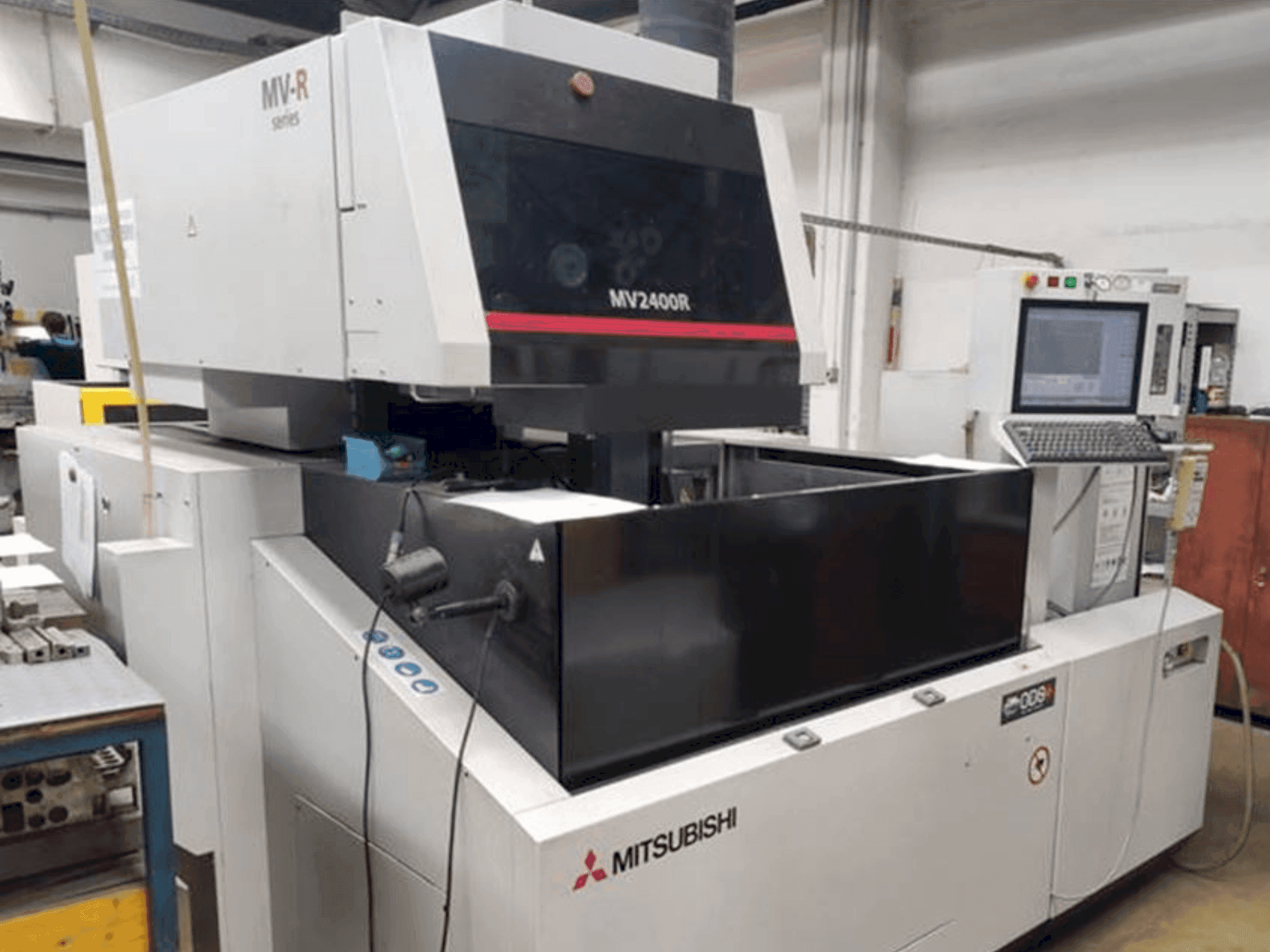

This 3-axis Mitsubishi Electric MV2400R wire EDM machine was manufactured in 2013. It features a PC-based control unit with a 15" LCD touchscreen, supporting 2D/3D CAM and graphics verification. Capable of handling workpieces up to 1050 x 820 x 305 mm and 1500 kg, it offers a machining travel of 600 x 400 x 310 mm. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi Electric MV2400R machine we have for sale. Contact us for more information.
Overview
- brand: Mitsubishi Electric
- year: 2013
- MODEL: MV2400R
- application type: EDM
- Location: Slovenia
- machine type: Wire EDM Machine
- availability: Immediately
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi Electric MV2400R
General Data
- Machine weight: 3500 kg
Control Unit
- Brand: MITSUBISHI
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 nmm
- Z-AXIS Movement: 310 mm
Workpiece
- Workpiece x: 820 mm
- Workpiece y: 305 mm
- Workpiece z: 1050 mm
- Workpiece weight: 1500 kg
Additional Equipment
- - Wire diameter: 0.1 – 0.3 mm
Additional Information
- Technical Machine Benefits:
- - Table dimensions: 840 x 640 mm
- - Max. Taper angle: 15/260
- - Power supply: 3pe 50/60 hz ac200/220v (35 a)
- - Air source: 0. 5 mpa (75 l/min)
- - Pc technology with 15" lcd color screen, touch screen, and mouse
- - Electronic manual control panel
- - Machining support with 2d/3d cam and graphics verification
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
