Mitsubishi EA8

Photo Gallery

Mitsubishi - EA8PL-EDM-MIT-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

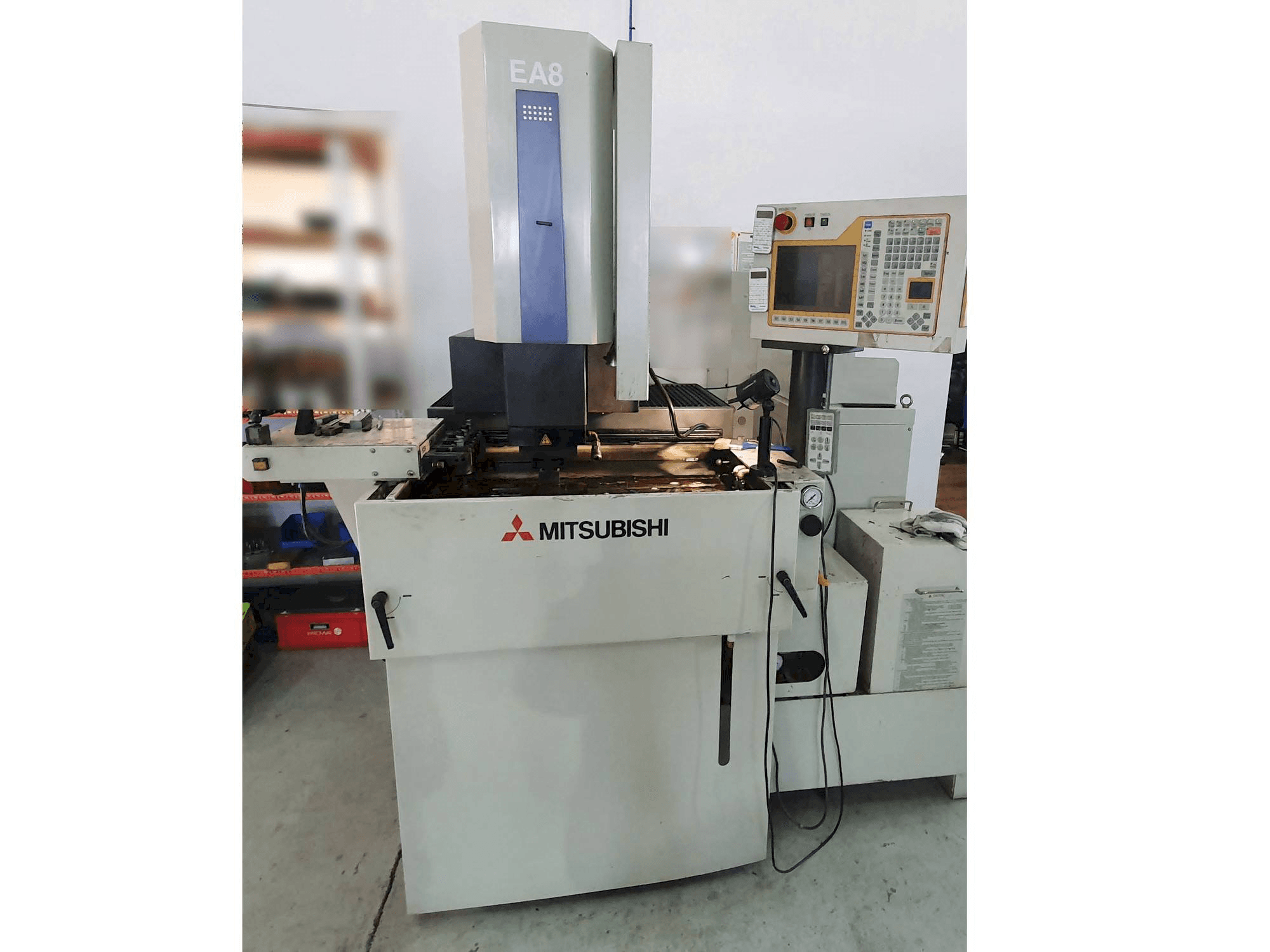

This Mitsubishi EA8 Erosion Machine was built in the year 1999 in Japan. It is equipped with a Mitsubishi FP-60EA Control unit. This machine includes a handheld remote, a fire extinguishing system and works with a EROWA system. It is in very good condition and still at production. This machine presents its full documentation available.

Overview

brand: Mitsubishi
year: 1999
MODEL: EA8
application type: EDM
Location: Poland
machine type: Wire EDM Machine
control unit brand: MITSUBISHI

Technical Information - Mitsubishi EA8

General Data

Measurements width: 2046 mm
Measurements depth: 2177 mm
Measurements height: 2020 mm
Machine weight: 1200 kg

Control Unit

Model: FP-60EA
Brand: MITSUBISHI

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 550 kg

Table

Outer length: 500 mm
Inner length: 350 mm

Media

Main electronic connection: 200/220 V 3 PE - 50/50 Hz

Additional Information

Additional equipment

Handheld remote
Fire extinguishing system

Machine Benefits

Qualitative Machine Benefits

The machine is in very good condition and still at the production.
Full documentation available.
There are no tooling included in the offer.

Technical Machine Benefits

C axis rotation: 0. 001 deg
Max. Workpiece dimensions: 740 x 470 x 150 mm
Max. Fluid level: 200 mm
System erowa
Max. Electrode weight: 5 kg
Atc electrons: 4 pcs
Dielectric fluid reservoir: 196 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
