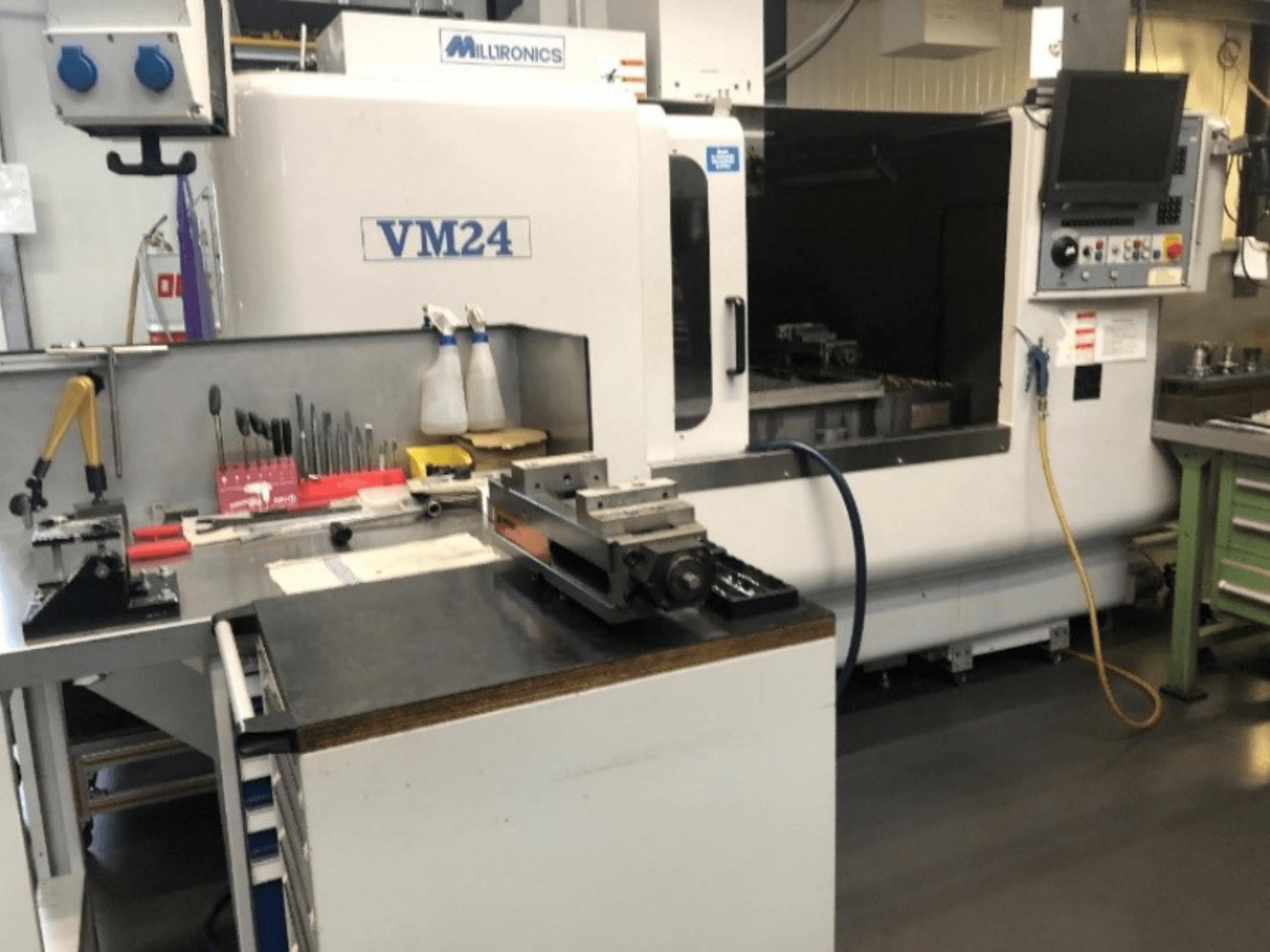

Machinery workspace featuring the Milltronics VM24 CNC machine. Front view with tools and equipment on a workbench.
Machinery workspace featuring the Milltronics VM24 CNC machine. Front view with tools and equipment on a workbench.

MILLTRONICS - Vm24DE-MIL-MIL-2001-00001

£ 12,342
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

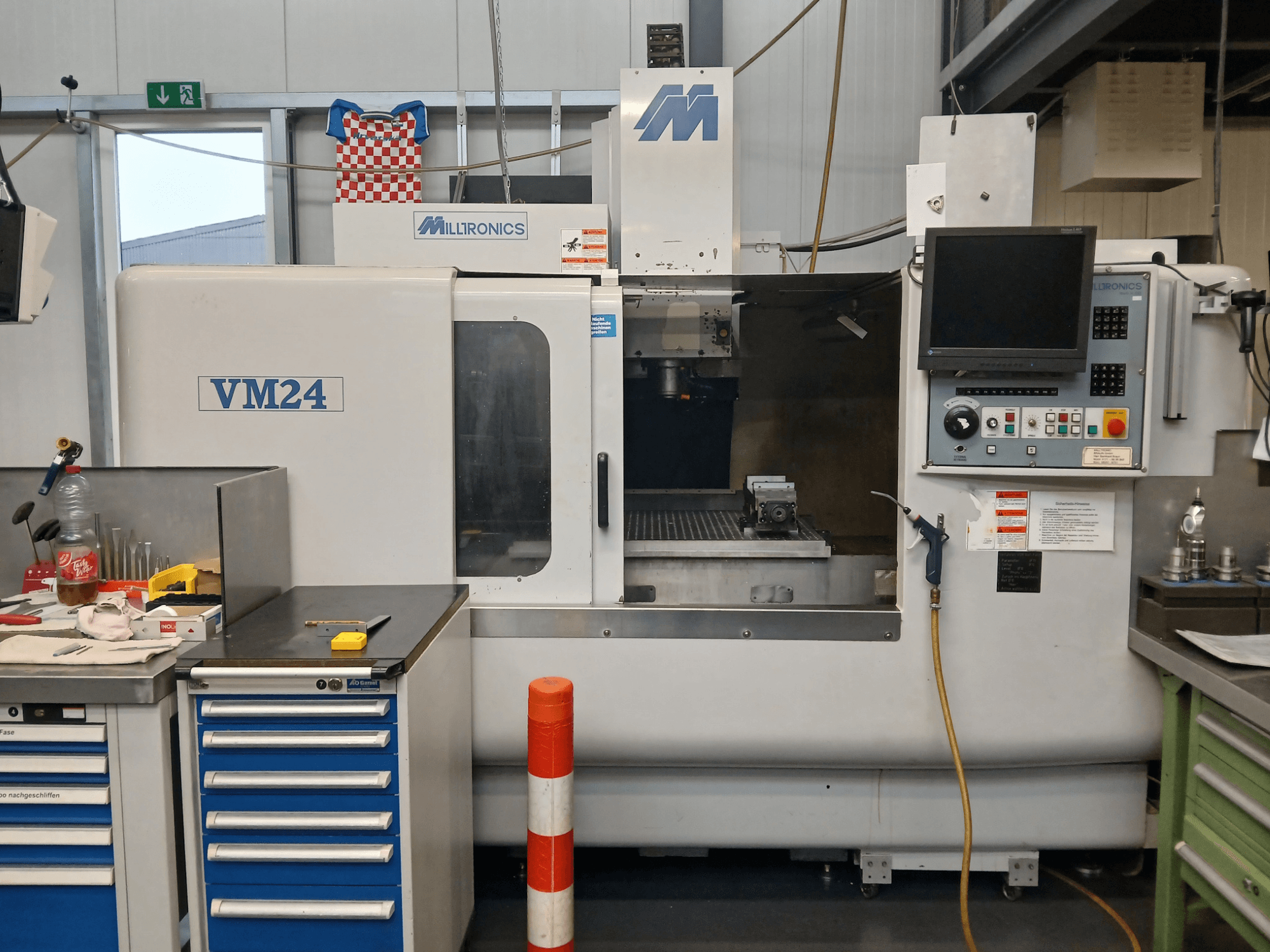

This 3-axis MILLTRONICS Vm24 vertical machining center was manufactured in 2001. It features a table size of 610 x 1140 mm, X/Y/Z travel of 1016/610/610 mm, and a spindle motor with 7.5/11 kW power. The machine supports a maximum workpiece weight of 900 kg and includes a 20-station tool changer. Ideal for detailed machining tasks. Contact us for more information about this machine.

Overview

  • brand: MILLTRONICS
  • year: 2001
  • MODEL: Vm24
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - MILLTRONICS Vm24

Dimensions

  • Machine Weight: 5000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 5.5 kg
  • Spindle Power: 11 kW
  • Spindle Speed: 5000 RPM
  • Taper Size: SK 40

Additional Information

  • Table size: 610 x 1140 mm

  • Distance between column and spindle: 635 mm

  • Distance between table and spindle: 100–710 mm

  • Max. workpiece weight: 900 kg

  • T-slots: 5/16 mm

  • Spindle taper: SK40/BT / DIN 69871

  • Gearbox (manual): 2 stages

  • Spindle speeds: Infinitely variable from 100–5000 rpm

  • Vector-controlled frequency converter: 150–6000 rpm

  • THK linear guides with very high rigidity, digital AC feed drives

  • Rapid traverse X/Y/Z axes: 20 m/min

  • Feed rate: 2.5–7500 mm/min

  • Positioning accuracy: ±0.010 mm

  • Repeatability: ±0.005 mm per 250 mm increment

  • Tool changer: plate with 20 stations

  • Max. tool diameter: 100 mm

  • Tool change time (chip-to-chip): approx. 8 seconds

  • Coolant system: 95 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
