➤ Used Milacron ELEKTRON 75 For Sale | gindumac.com

Show in original language

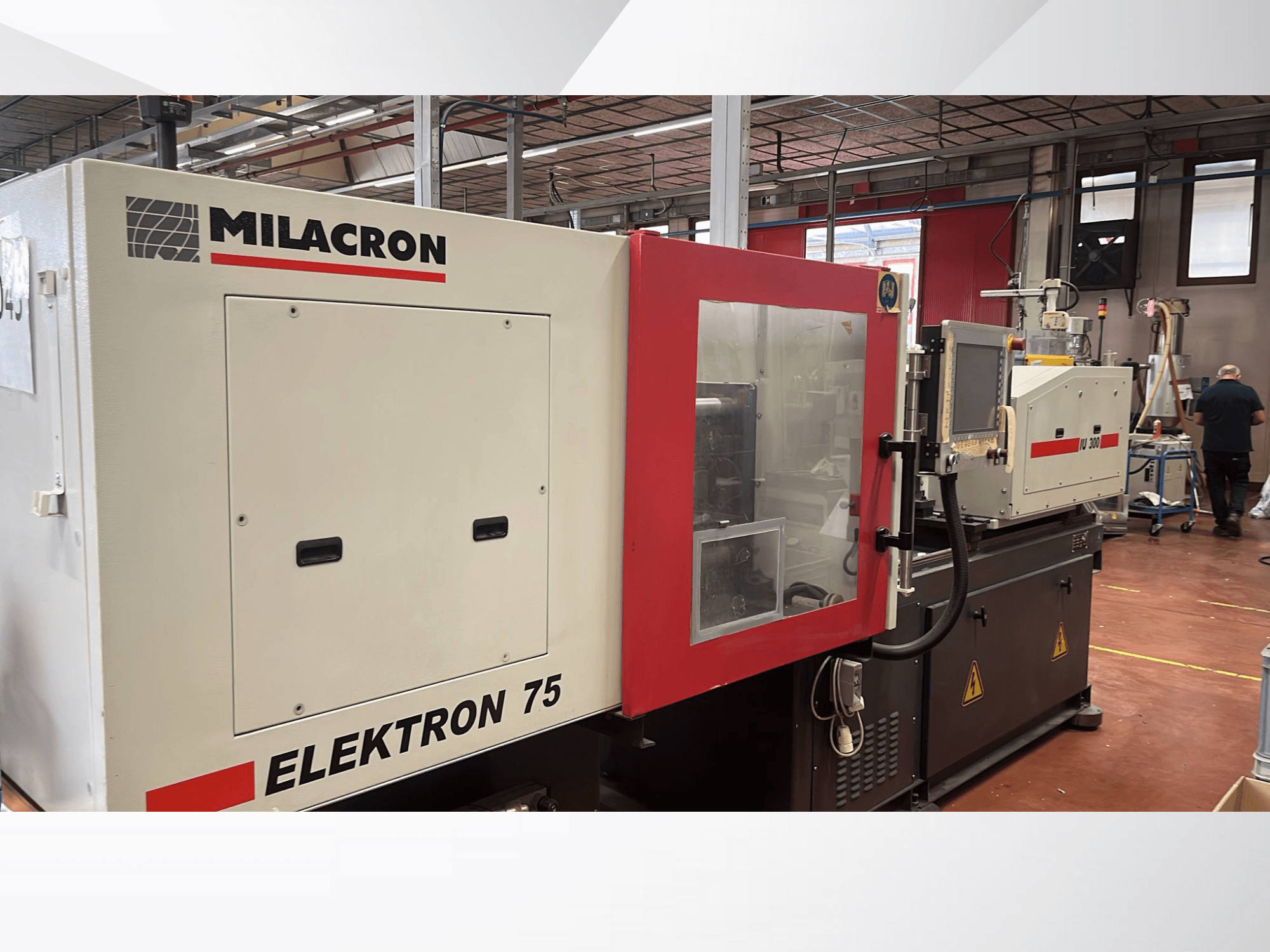

This Milacron ELEKTRON 75 was manufactured in 2011. It features a screw diameter of 18 to 32 mm and a clamp force of 750 kN. The machine dimensions are 4.36 × 1.42 × 1.95 m, and it weighs 4700 kg. If you are looking to get high-quality injection moulding capabilities, consider the Milacron ELEKTRON 75 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Milacron
year: 2011
MODEL: ELEKTRON 75
application type: Injection Moulding
Location: Italy
machine type: Electrical Injection Moulding Machine

Technical Information - Milacron ELEKTRON 75

General Data

Measurements width: 1.42 m MM
Measurements depth: 4.36 m MM
Measurements height: 1.95 m MM
Machine weight: 4700 kg

Additional Information

Additional information

Clamp Force: 750 kN
Injection Unit: 300
Screw Diameter (mm): A 18 / B 25 / C 32
Injection Pressure (bar): A 2500 / B 1943 / C 1488
Shot Volume (cm³): A 103 / B 140 / C 183
Shot Weight (PS g): A 113 / B 154 / C 201
Injection Rate (cm³/s): A 117 / B 159 / C 208
Screw Stroke (mm): 165
Screw L/D Ratio: 25
Plasticizing Capacity (g/s): A 9.2 / B 11.2 / C 11.2
Screw Speed (rpm): 125
Tie Bar Distance: 575 × 570 mm
Platen Size: 750 × 765 mm
Min Mould Height: 250 mm
Max Mould Height: 480 mm
Opening Stroke: 320 mm
Max Daylight: 800 mm
Ejector Stroke: 150 mm
Ejector Force (kN): 25
Mould Platen Hole Spacing: 405 × 380 mm
Mould Weight Max (kg): 400
Number of Core Pullers: 4 + 1
Nozzle Radius: R = 300 mm
Nozzle Orifice: Ø 48 mm
Hydraulic Oil Capacity: 97 / 130 L
Thread Size for Mounting: M10

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
