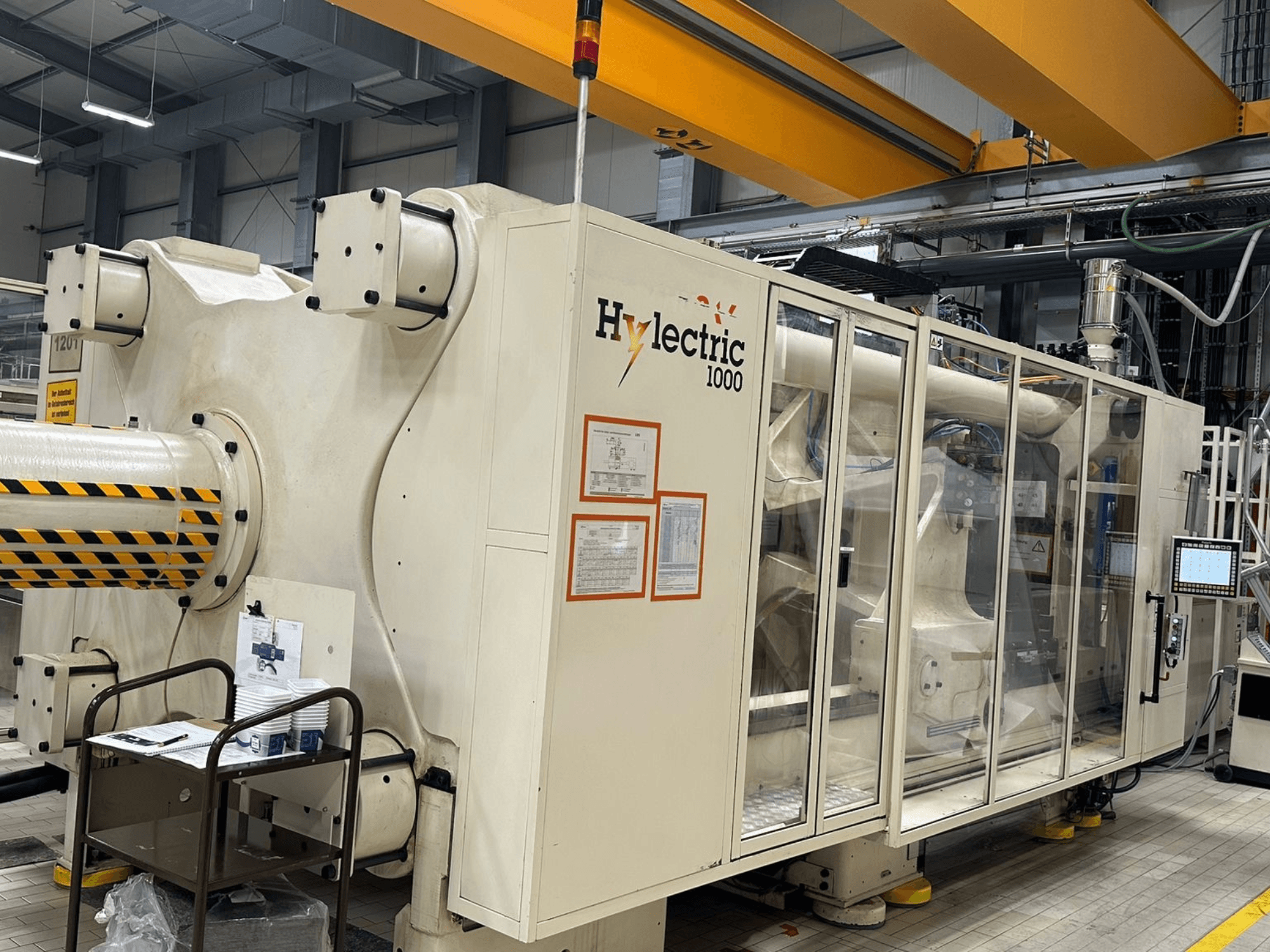

Husky - Hylelectric H1000 RS95/80CH-INJ-HUS-2005-00001

- Working Hours (SAP): 115,857.21 h

- Working Hours (Physical Counter / Total): 137,414.83 h

- Clamping Force: 10000 kN (1000 t)

- Mold Installation Height min/max: 900 / 1300 mm

- Opening Stroke min/max: 1330 / 2000 mm (Max Stroke on HMI Screen: 1474.8 mm)

- Distance Between Tie Bars (H x V): 1550 x 1320 mm

- Tie Bar Diameter: 240 mm

- Total Platen Size: 2070 x 1840 mm

- Centering Hole FS / BS: 200 / 200 mm

- Ejector Type: Hydraulic

- Ejector Stroke max: 250 mm

- Water Circuits: 25

- Take-out Handling / Stacking Unit: Brink BJ02-2025 Pro2023 (additional equipment)

- Screw Diameter: 80 mm

- Dosier Stroke max: 425 mm

- Max Screw Speed: 298.0 rpm

- Max Shot Weight: 1546 g

- Max Injection Pressure: 2280 bar (2284.4 bar on HMI screen)

- Max Injection Flow / Rate: 2136.0 cm³

- Screw L/D Ratio: 25.0 : 1

- Core Pulls Pneumatic: 2

- Core Pulls Hydraulic: 2

- Air Valve Quantity: 16

- Interface for Handling Euro Map: 67

- Software Version: 2010.3-005

- Power Rating Machine / Connection Value: 120 kW

- Total Machine Weight (Nameplate): 57,040 kg (57 t)

- Electrical Supply Connection: 400 V, 633 A, 50 Hz (3 / N + PE)

- Hydraulic Pressure Max: 18 MPa (180 bar)

- Oil Volume: 1200 L
