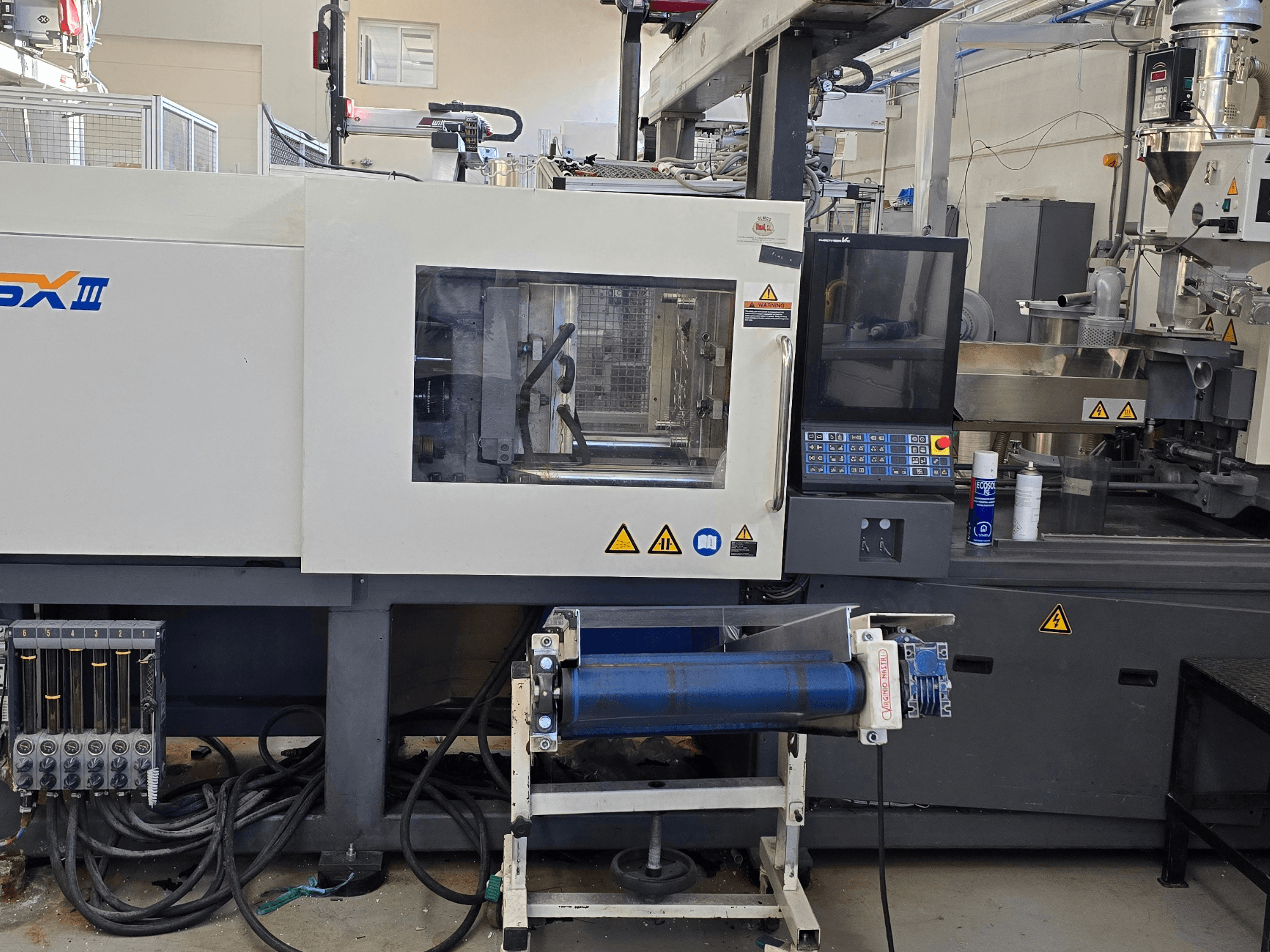

SHIBAURA - EC130SXIII-4A ES-INJ-SHI-2019-00001

Distance between tie bars (H x V): 510 x 460 mm

Platen dimensions (H x V): 720 x 670 mm

Mold opening stroke: 400 mm

Max. distance between platens: 950 mm

Mold height (min–max): 180–550 mm

Ejection force: 30 kN (3.0 tf)

Ejection stroke: 90 mm

Injection unit code: 14

Nozzle touch force: 17.7 kN (1.8 tf)

Injection speed (standard): 300 mm/s

Injection speed (high torque): 200 mm/s

Injection speed (high speed): 400 mm/s

Main breaker capacity (standard/high torque): 100 A

Main breaker capacity (high speed): 125 A

Transformer (standard): 75 kVA
