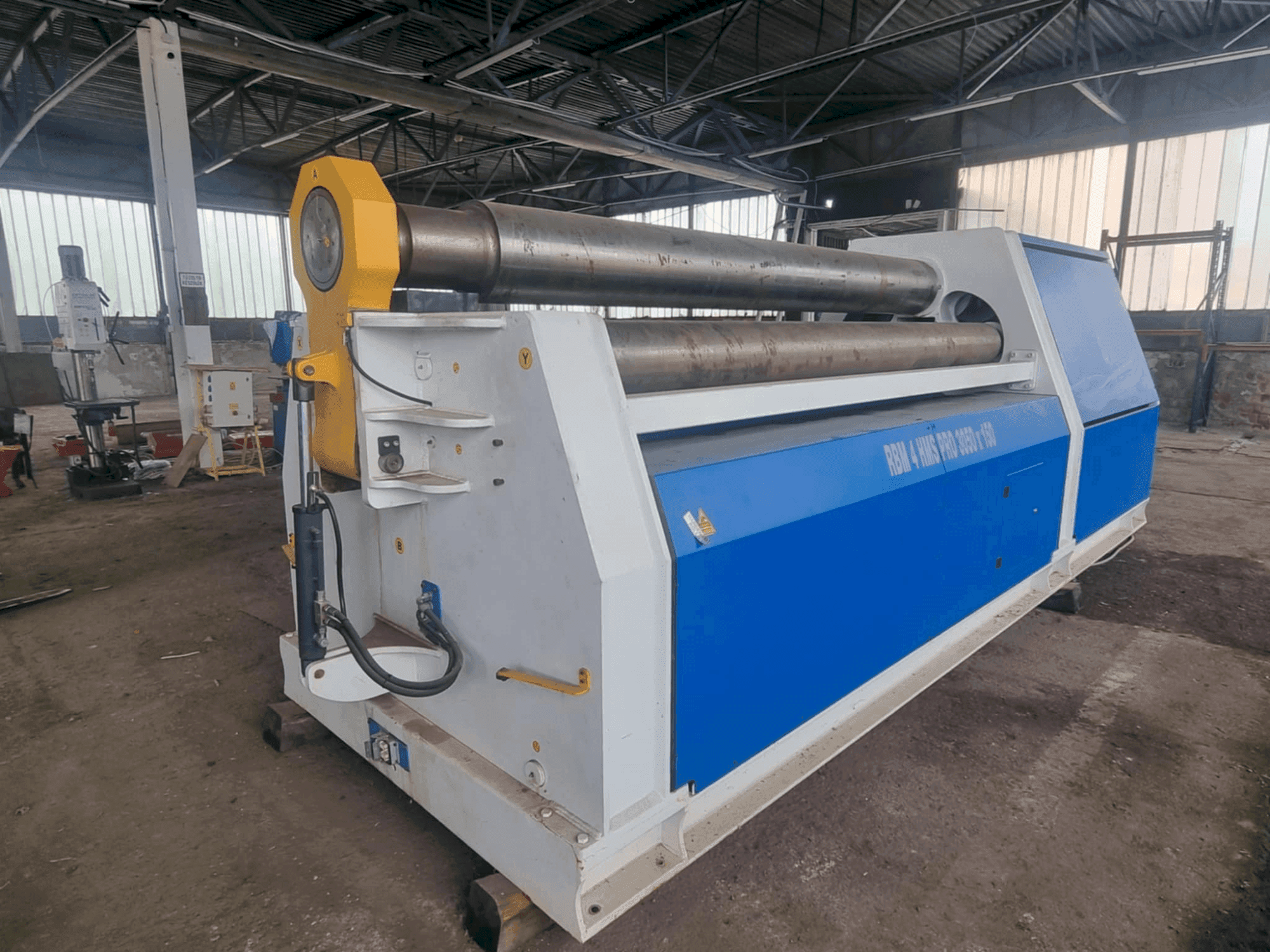

This Metallkraft RBM 4 HMS Pro 3050-150 plate rolling machine was manufactured in 2022. It features a robust welded construction, induction-hardened rollers, and a hydraulic drive for the upper roller. The machine includes three digital displays for precise roller adjustments and a hydraulic folding plate for easy workpiece removal. Ideal for heavy industrial use with options for conical bending. Contact us for more information about this machine.
Overview
- brand: Metallkraft
- year: 2022
- MODEL: RBM 4 HMS Pro 3050-150
- application type: Rolling
- Location: Hungary
- machine type: Plate Rolling Machine
Technical Information - Metallkraft RBM 4 HMS Pro 3050-150
Dimensions
- Machine Depth: 5400 mm
- Machine Height: 1950 mm
- Machine Weight: 8500 kg
Additional Information
Additional equipment
- Teach-In NC control for automated bending processes (optional)
- Mechanical auxiliary arm for handling heavy workpieces (optional)
- Hydraulic side supports for stabilizing long sheets (optional)
- Infinitely adjustable bending speed (optional)
Machine Benefits
Qualitative Machine Benefits
- Three digital displays for precise adjustment of the roller position
- Hydraulic folding plate for easy removal of the finished workpiece
- Movable control panel for comfortable operation
- Conical bending option
- Hydraulic balancing system for the rollers to ensure parallelism
- Safety emergency stop system
Technical Machine Benefits
- Maximum working width: 3050 mm
- Upper roller diameter: 300 mm
- Rolling speed: 1. 5 – 5 m/min
- Minimum bending diameter: 450 / 1500 mm
- For steel with 400 n/mm² strength, the machine allows pre-bending of 10/12 mm, full bending of 12/15 mm, and conical bending of 6/7. 5 mm.
- For stainless steel (va), the machine allows full bending of 9/11. 2 mm and conical bending of 4. 5/5. 6 mm.
- For aluminum, the machine allows full bending of 14. 4/18 mm and conical bending of 7. 2/9 mm.
- Heavy, robust welded construction for industrial use
- Induction-hardened rollers, suitable for bending stainless steel
- Hydraulic drive for the upper roller with planetary gear
Extra Information
Technical Specifications Maximum working width: 3050 mm Upper roller diameter: 300 mm Rolling speed: 1.5 – 5 m/min Drive motor power: 11 kW Minimum bending diameter: 450 / 1500 mm Bending Capacities Steel (400 N/mm²): Pre-bending: 10 / 12 mm Full bending: 12 / 15 mm Conical bending: 6 / 7.5 mm Stainless steel (VA): Full bending: 9 / 11.2 mm Conical bending: 4.5 / 5.6 mm Aluminum: Full bending: 14.4 / 18 mm Conical bending: 7.2 / 9 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
