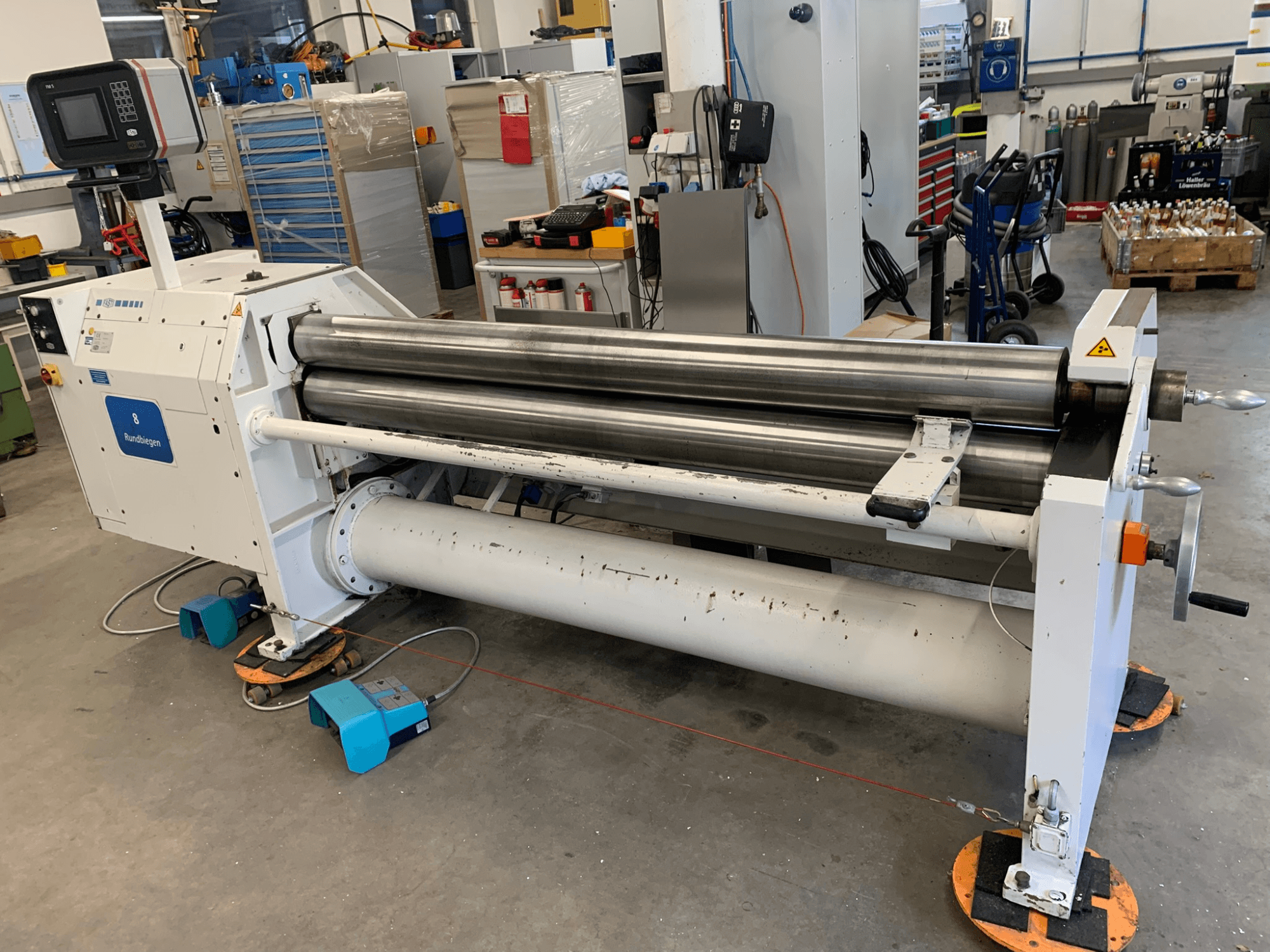

Plate rolling machine manufactured in 2000. This FASTI 136-20-4.5 features a capacity of 2040 x 4.5 mm at 400 N/mm² tensile strength and weighs 2110 kg. It is equipped with a Fasti-Matik 5 R control unit and operates at 400 V. If you are looking to get high-quality plate rolling capabilities, consider the FASTI 136-20-4.5 machine we have for sale. Contact us for further details.
Overview
- brand: FASTI
- year: 2000
- MODEL: 136-20-4.5
- application type: Rolling
- Location: Germany
- machine type: Plate Rolling Machine
Technical Information - FASTI 136-20-4.5
Dimensions
- Machine Weight: 2110 kg
Technical Specification
- Max. Sheet Thickness: 4.5 mm
- Working Length: 2040 mm
Additional Information
- Capacity: 2040 x 4.5 mm (at 400 N/mm² Tensile Strength)
- Weight: 2110 kg
- Control Unit Model: Fasti-Matik 5 R (FM 5 / FM 5 R)
- Operating Voltage: 400 V (3/N/PE~)
- Frequency: 50 Hz
- Control Voltage: 230 V AC / 24 V DC / 24 V AC
- Connected Load: 6.356 kW
- Nominal Current: 15.7 A
- Circuit Diagram No.: 10X0001 B
- Included Equipment: Control unit operating manual, machine instruction handbook
- Working Hours: estimated as very low
- Saving programs to the 3.5-inch floppy drive does not work (no access). It may be possible to replace it, though or the values must be entered manually.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
