MECOF - CS 88 G IT-MIL-MEC-1990-00001

£ 28,740
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

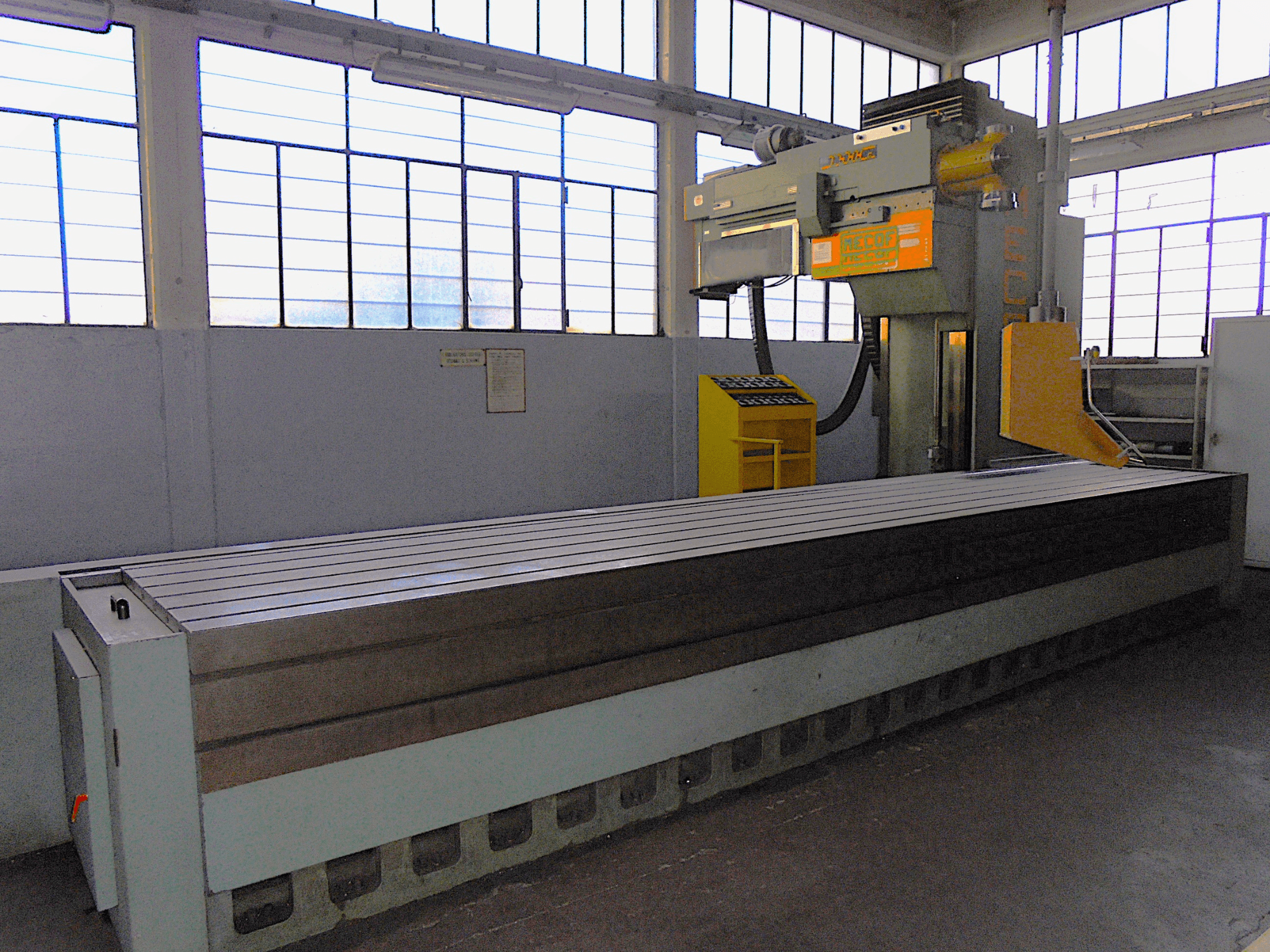

This 3s MECOF CS 88 G Bed Type Milling Machine was manufactured in 1990. It features a working table length of 6,000 mm and a maximum permissible load of 8 tons per meter. The spindle motor power is 14.7 kW, with a speed range of 10 – 1,207 rpm. If you are looking to get high-quality milling capabilities, consider the MECOF CS 88 G machine we have for sale. Contact us for further details.

Overview

  • brand: MECOF
  • year: 1990
  • MODEL: CS 88 G
  • application type: Milling
  • Location: Italy
  • machine type: Bed Type Milling Machine
  • control unit brand: HEIDENHAIN

Technical Information - MECOF CS 88 G

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: T355A

Dimensions

  • Table Length: 6000 mm
  • Table Width: 1060 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 4300 mm
  • Y-axis Travel: 1000 mm
  • Z-axis Travel: 17000 mm

Technical Specification

  • Spindle Power: 14.7 kW
  • Spindle Speed: 1207 RPM
  • Taper Size: ISO 50

Additional Information

  • Working table

    • T-slots: 6 on table + 2 lateral

    • T-slot width: 22 mm

    • Distance between T-slots: 175 mm

    • Max permissible load: 8 tons per meter

  • Axis travels

    • X (longitudinal column): 4,300 mm (variants: 2,300 / 3,300 / 4,300 mm)

    • Y (ram cross): 1,000 mm

    • Z (vertical head): 1,700 mm (variants: 1,200 / 1,700 mm)

  • Spindle

    • Constant torque range: 10–249 rpm

    • Spindle diameter (front bearing): 90 mm

  • Feeds

    • Micrometric feed rates: up to 4,100 mm/min

    • Working feed rate: up to 4,200 mm/min

    • Rapid traverse: up to 4,600 mm/min

  • Drives & motors

    • Spindle motor: Thyssen, DC

    • Axis feed motors: Servomac

    • Lubrication and hydraulic pumps: Sever / Willi Vogel

    • Cooling system: dedicated headstock oil cooling

  • CNC control

    • Heidenhain T355A

    • Control unit: BE 412 B

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
