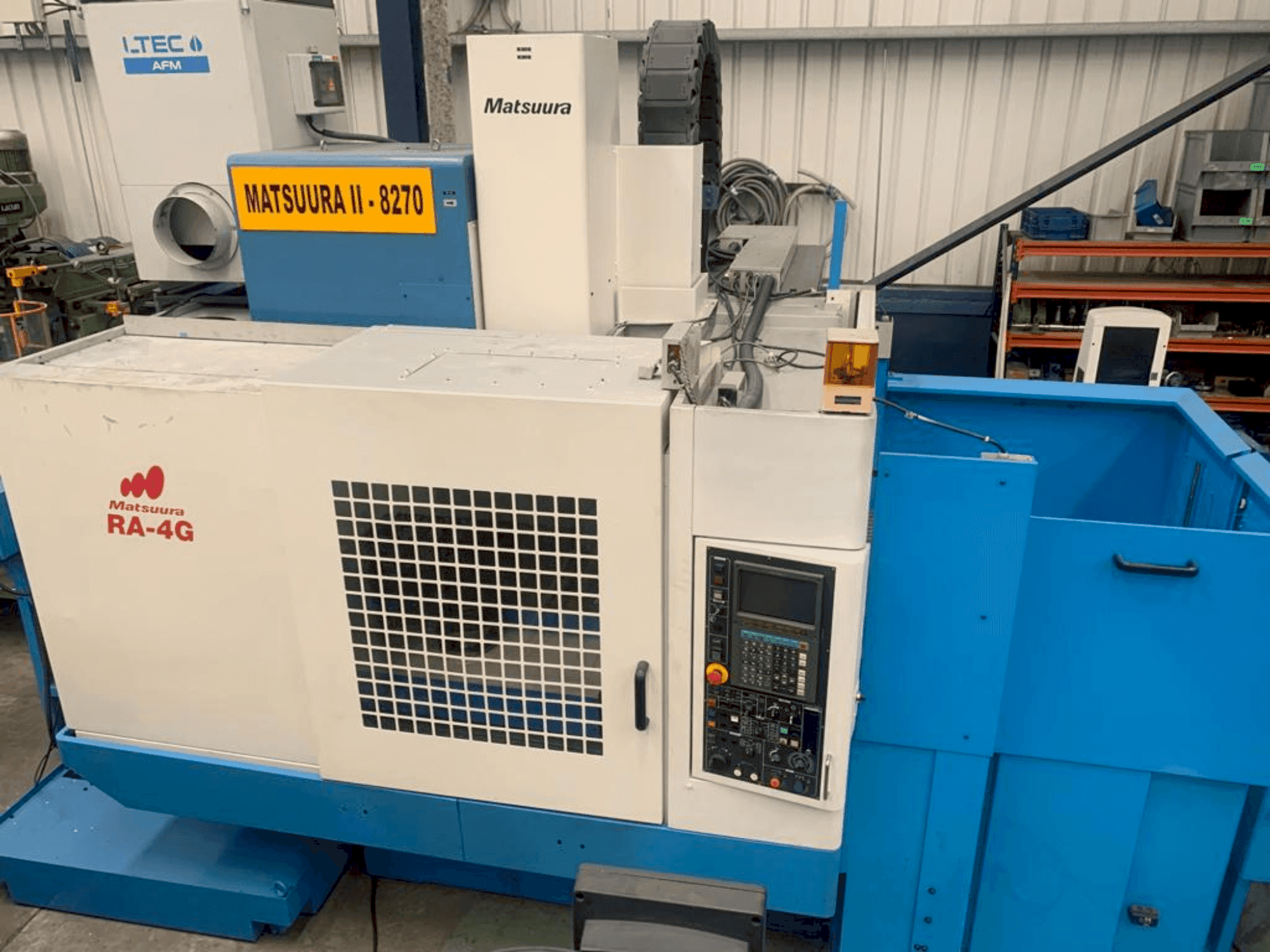

Front view of Matsuura RA-4G  machine

Matsuura - RA-4GES-MIL-MAT-1998-00001

£ 17,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Matsuura RA-4G Machining Center was manufactured in 1998. It features a YASNAC control, with X-axis travel of 1020 mm, Y-axis travel of 550 mm, and Z-axis travel of 510 mm. The machine supports a maximum pallet load of 500 kg and offers a spindle speed range of 30-8000 rpm, enhanced by internal and high-pressure cooling systems. Ideal for robust machining needs, the Matsuura RA-4G machine we have for sale. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 1998
  • MODEL: RA-4G
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: YASNAC

Technical Information - Matsuura RA-4G

Control Unit

  • Brand: YASNAC

Main drive

  • Spindle speed range: 30-8000 1/MIN

Movement

  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 510 mm

Table

  • Outer length: 1000 mm
  • Outer width: 490 mm
  • Min distance between vertical spindle and table: 150 mm
  • Max distance between vertical spindle and table: 660 mm
  • Table load: 500 kg

Media

  • Internal cooling: Yes

    Additional Equipment

    • - High-pressure cooling pump

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance between the centre of the table and the column guides : 285-835 mm
        • - Distance between the centre of the spindle and the column guides : 560 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
