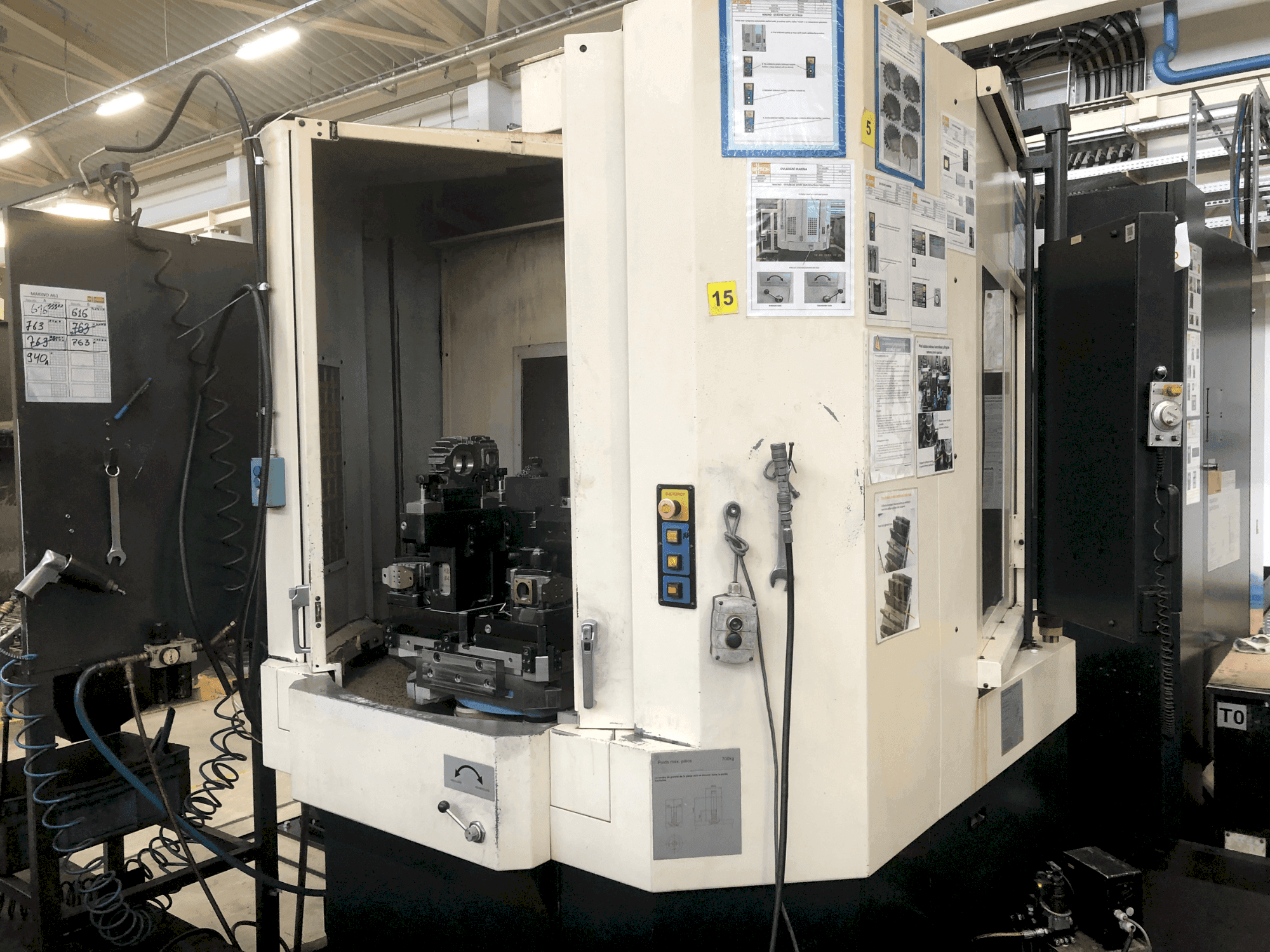

Front view of Makino a61-5XR machine
Front view of Makino a61-5XR machine

Makino - A61-5XRCZ-MIL-MAK-2005-00001

£ 37,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Makino A61-5XR was manufactured in 2005. This horizontal machining centre is equipped with a Fanuc / Pro5 control, has a table size of 500 x 500 mm, and a stroke of 730 x 650 x 730 mm. It features table indexing at 1° and an ATC with 134 positions, handling a maximum workpiece weight of 700 kg. Contact us for further details regarding this machine.

Overview

  • brand: Makino
  • year: 2005
  • MODEL: A61-5XR
  • application type: Milling
  • Location: Czech Republic
  • machine type: Horizontal Machining Centre
  • control unit brand: FANUC

Technical Information - Makino A61-5XR

General Data

  • Measurements width: 4521 mm
  • Measurements depth: 2286 mm
  • Measurements height: 2921 mm
  • Machine weight: 9500 kg

Control Unit

  • Model: Pro5
  • Brand: FANUC

Main drive

  • Spindle speed range: 15000 rpm 1/MIN
  • Tool taper: HSK-A63
  • Number of axis: 4

Movement

  • X-AXIS Movement: 730 mm
  • Y-AXIS Movement: 650 mm
  • Z-AXIS Movement: 730 mm
  • B-AXIS Movement: -60°/+150°
  • C-AXIS Movement: 360°

Workpiece

  • Workpiece weight: 700 kg

Table

  • Outer length: 500 mm
  • Outer width: 500 mm

    Additional Information

    Additional equipment

    • Machine Specific Data

    Machine Benefits

    Technical Machine Benefits

    • Atc 134 positions
    • Table indexing: 1°

    Extra Information

    MACHINE STILL UNDER POWER

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
