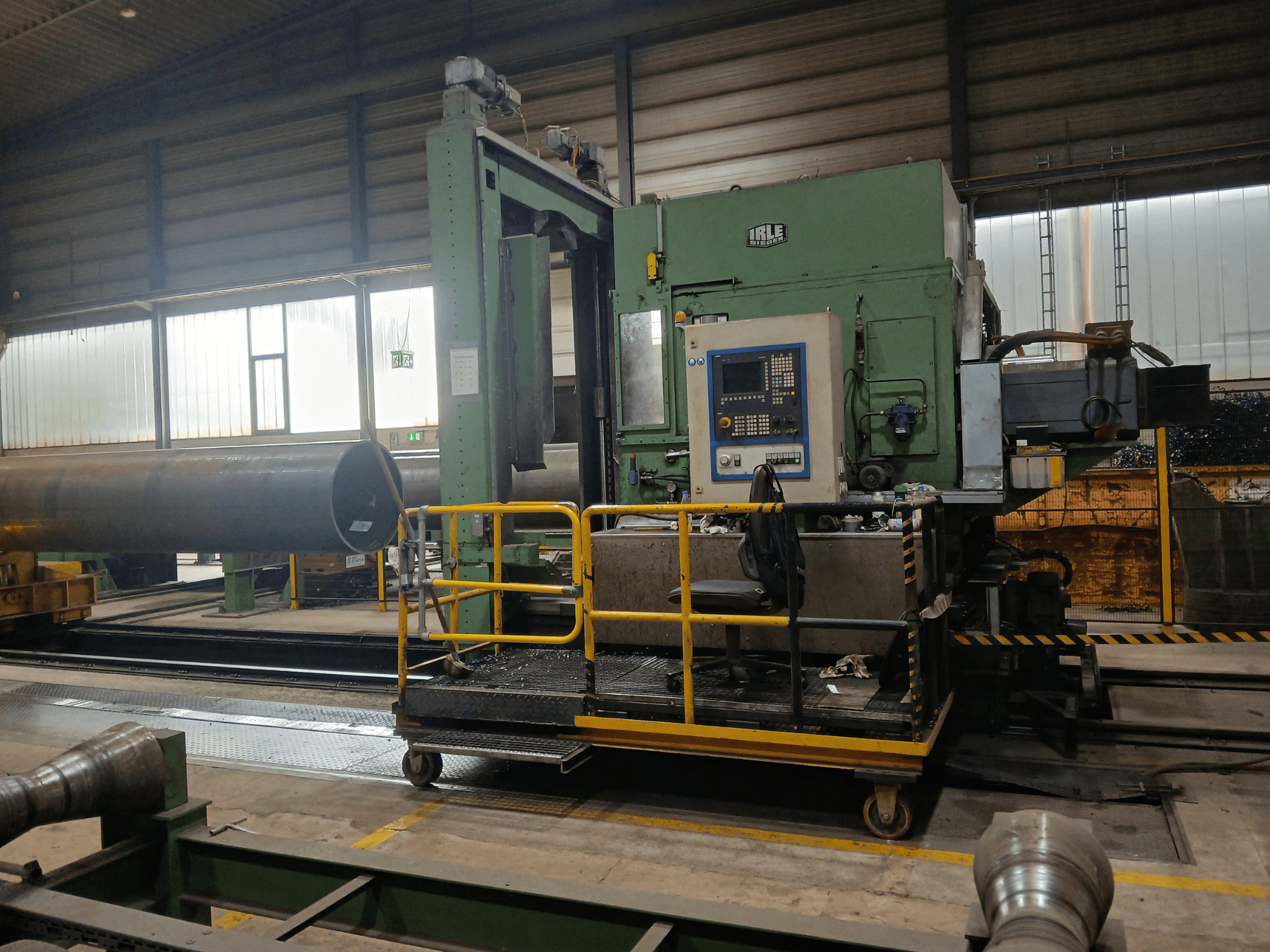

Horizontal machining centre manufactured in 2004. This IRLE IRD 1600 CNC features a maximum pipe diameter processing capability of 1,625 mm and a maximum pipe length of 13,200 mm. It supports a maximum pipe wall thickness of 70 mm and can handle pipe weights up to 250 kN. If you are looking to get high-quality machining capabilities, consider the IRLE IRD 1600 CNC machine we have for sale. Contact us for further details.
Overview
- brand: IRLE
- year: 2004
- MODEL: IRD 1600 CNC
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - IRLE IRD 1600 CNC
Movement
- Number of Axes: 2
- X-axis Travel: 650 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 100 kW
- Spindle Speed: 105 RPM
Additional Information
- Max. Pipe Diameter to be Processed: 1,625 mm
- Min. Pipe Diameter to be Processed: 406 mm
- Max. Pipe Length to be Processed: 13,200 mm
- Min. Pipe Length to be Processed: 6,000 mm
- Min. Pipe Wall Thickness: 12 mm
- Max. Pipe Wall Thickness (Copying Process): approx. 40 mm
- Max. Pipe Wall Thickness (CNC Operation): 70 mm
- Max. Pipe Weight to be Supported: 250 kN
- Height between Hall Floor and Pipe Inlet: 800 mm
- Total Machine Length: approx. 24,000 mm
- Total Machine Width: approx. 4,100 mm
- Total Height from Floor to Top of Clamping Vise: 5,000 mm
- Total Machine Weight: approx. 700 kN
- Operating Voltage: 400 V, 3-phase, 50 Hz
- Control Voltage: 220 V DC / 50 Hz
- Nominal Operating Current: 400 A
- Intermediate Bed - Bed Length: approx. 3,950 mm
- Intermediate Bed - Bed Width: approx. 1,800 mm
- Intermediate Bed - Bed Height (incl. chassis): approx. 600 mm
- Intermediate Bed - Travel Speed on Foundation Rails: 500 - 5,000 mm/min
- Intermediate Bed - Drive Motor Power: 5.5 kW
- Headstock - Faceplate Speed Range: 7 - 105 min⁻¹
- Headstock - Motor Speeds: 300 - 4,500 min⁻¹
- Headstock - Motor Power: 100 kW
- Headstock - Motor Power (S1 Duty Cycle): 105 kW
- Headstock - Max. Faceplate Torque (S1 Duty): 33,000 Nm
- Headstock - Characteristic Speed: 27 min⁻¹
- Headstock - Main Spindle Diameter (Front Bearings): 300 mm
- Faceplate (X-Axis) - Faceplate Diameter: approx. 1,950 mm
- Faceplate (X-Axis) - NC Tool Support Travel Range: approx. 650 mm
- Faceplate (X-Axis) - Tool Support Feed Rate (Infinitely Variable): 0.5 - 1,500 mm/min
- Faceplate (X-Axis) - Max. Achievable Feed Force: 25 kN
- Feed Gearbox (Z-Axis) - Headstock Feed Travel on Machine Bed: 800 mm
- Feed Gearbox (Z-Axis) - Feed Rate (Infinitely Variable via AC Servomotor): 0.5 - 200 mm/min
- Feed Gearbox (Z-Axis) - Rapid Traverse Speed: 1,500 mm/min
- Feed Gearbox (Z-Axis) - Feed Force: 30 kN
- Feed Gearbox (Z-Axis) - Feed Motor Torque: 27 Nm
- Pipe Clamping Steady Rests - Clamping Range: 406 - 1,625 mm
- Pipe Clamping Steady Rests - Pipe Weight Capacity per Steady Rest: 150 kN
- Pipe Clamping Steady Rests - Adjustable Clamping Force: 10 - 200 kN
- Pipe Clamping Steady Rests - Max. Adjusting Speed of Centrally Moving Clamping Crossbars: 600 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
