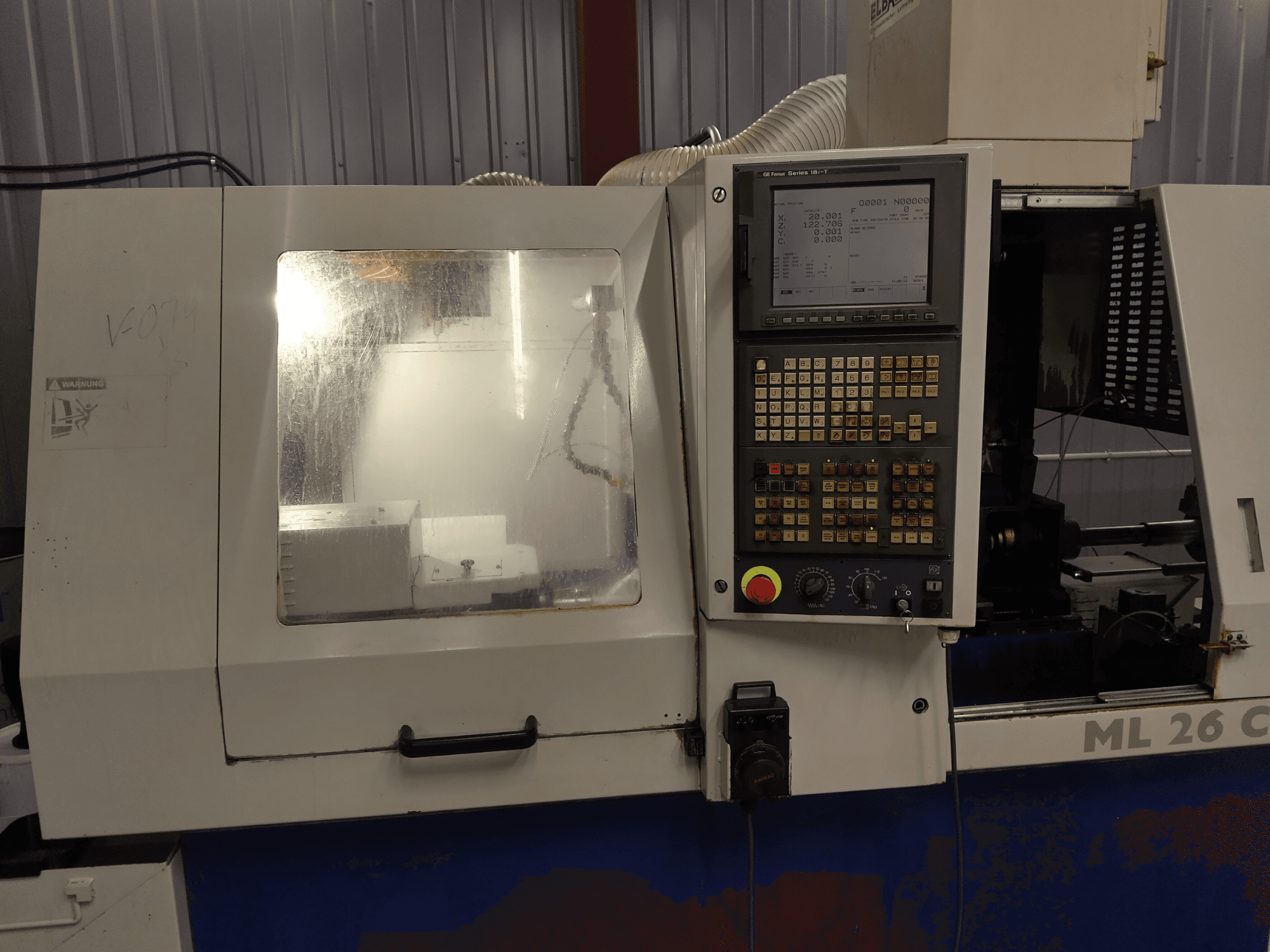

This 7-axis Maier ML 26 C1 was manufactured in 2000. It features a maximum bar diameter of 26 mm and an impressive spindle speed of 8000 rpm. The machine includes 5 turning tools and 3 axial drilling tools, along with a bar feeder model Iemca Boss 322r-E. If you are looking to get high-quality turning capabilities, consider the Maier ML 26 C1 swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: Maier
- year: 2000
- MODEL: ML 26 C1
- application type: Turning
- Location: Finland
- machine type: Swiss Type Turning Machine
Technical Information - Maier ML 26 C1
Movement
- Number of Axes: 7
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 26 mm
- Spindle Speed: 8000 RPM
Additional Information
Axis Head 1:
Axes: X, Y, Z, C
Z1 axis travel: 210 mm
Main spindle collet: 161E
Guide bushing: T227
Tooling: 5 turning tools (16 mm), 3 axial drilling/boring tools, 3 ER16 live tools (up to 8000 rpm)
Axis Head 2:
Axes: X, Z, C
Sub-spindle speed: up to 8000 rpm
Sub-spindle collet: 161E
Back-working: 4 tools (currently set up with 1 turning tool and 3 ER16 live tools), plus 1 ER16 live tool axial with the sub-spindle
Maintenance (2025–2026):
Replaced all pneumatic lines with new, durable lines
Replaced position sensors in main spindle mechanical lock
Replaced position sensors in sub-spindle mechanical lock
Replaced position sensors in sub-spindle work ejector
Mechanical realignment and measurement of main spindle, guide bushing, and sub-spindle
Realigned sub-spindle frame assembly and sub-spindle back-working tools
Replaced all spindle bearings in sub-spindle assembly
Replaced spindle bearings in sub-spindle axial milling tool
Refurbished live milling tools on sub-spindle side
Additional equipment
Bar feeder: Iemca Boss 322r-E, model year 2007, 17 mm guide channels
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
