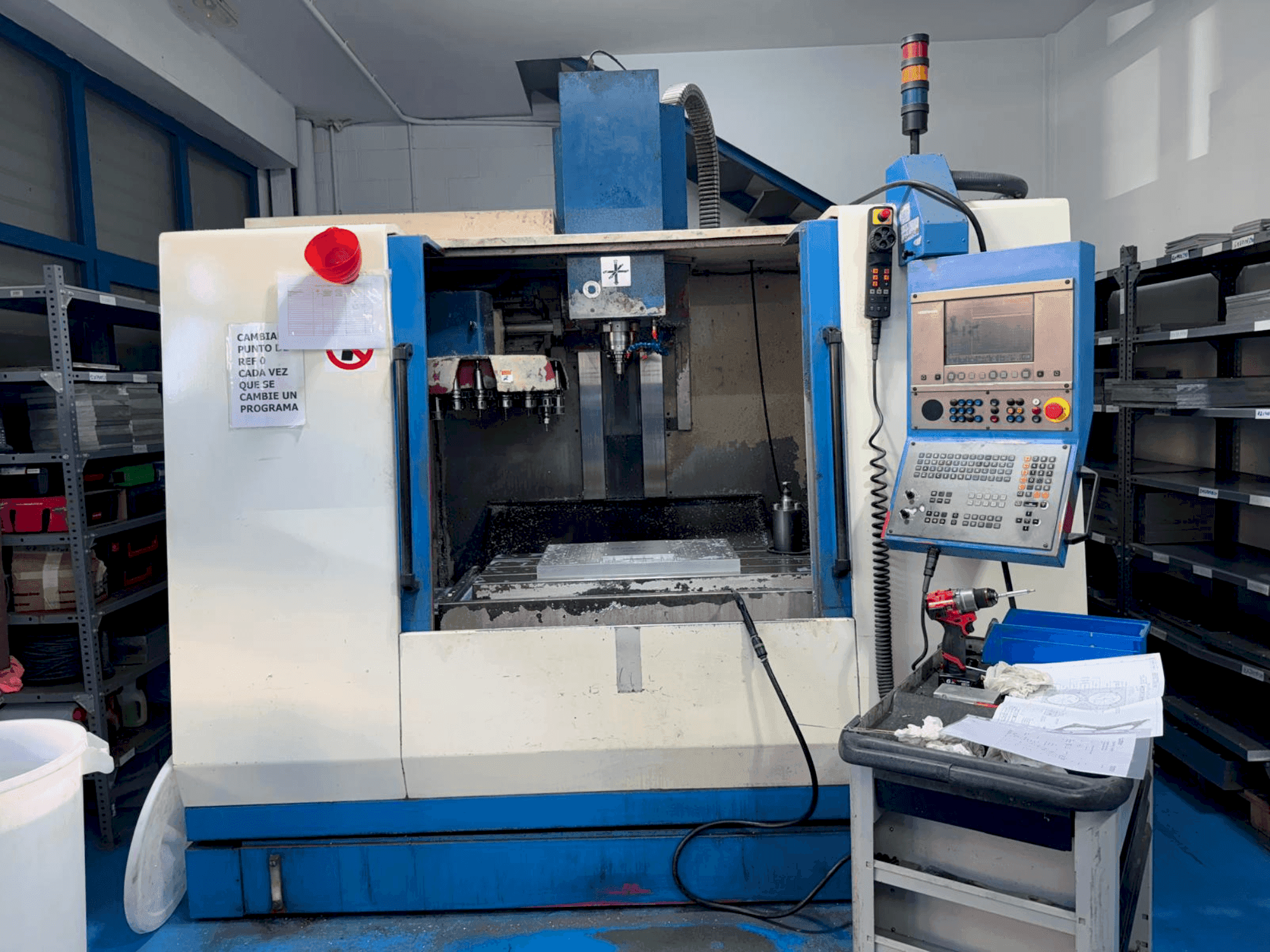

Front view of LAGUN GVC 1000  machine

LAGUN - GVC 1000ES-MIL-LAG-2003-00001

£ 14,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis LAGUN GVC 1000 vertical machining centre was manufactured in 2003. It features a HEIDENHAIN 426 control, a table surface of 1200 x 500 mm, and a maximum table load of 750 kg. The spindle operates at speeds up to 6000 r.p.m. with a main motor power of 7.5/9 kW. It includes an 18-tool automatic changer with a tool change time of 8 seconds. If you are looking to get high-quality milling capabilities consider the LAGUN GVC 1000 machine we have for sale. Contact us for more information.

Overview

  • brand: LAGUN
  • year: 2003
  • MODEL: GVC 1000
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - LAGUN GVC 1000

General Data

  • Measurements width: 2930 mm
  • Measurements depth: 2240 mm
  • Measurements height: 2750 mm
  • Machine weight: 6300 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: 426

Main drive

  • Spindle speed range: 60 - 6000 rpm 1/MIN
  • Spindle motor power: 7.5 / 9 kW
  • Tool taper: MAS-403-BT40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 510 ± 111.5 mm

Table

  • TSlots size: 20 x 135 mm
  • Number of tslots: 3
  • Table load: 750 kg

Tools

  • Number of index: 18
  • Max weight: 90 kg
  • Max tool diameter: 85 mm /135 mm
  • Max tool length: 250 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Min. /max. Distance from spindle to table: 100 ~ 610 (721. 5) mm
      • - Distance from table center to column: 260 ~ 760 mm
      • - Distance from axis center to column: 510 mm
      • - Total installed power: 17 kw
      • - Optional spindle taper: iso-40 7388/1 din 69871-a
      • - Optional speed range: 100 - 10000 rpm
      • - Table surface: 1200 x 500 mm
      • - Tool change time: 8 seconds
      • - Required air pressure: 6-7 kg/cm²
      • - Table height from floor: 910 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
