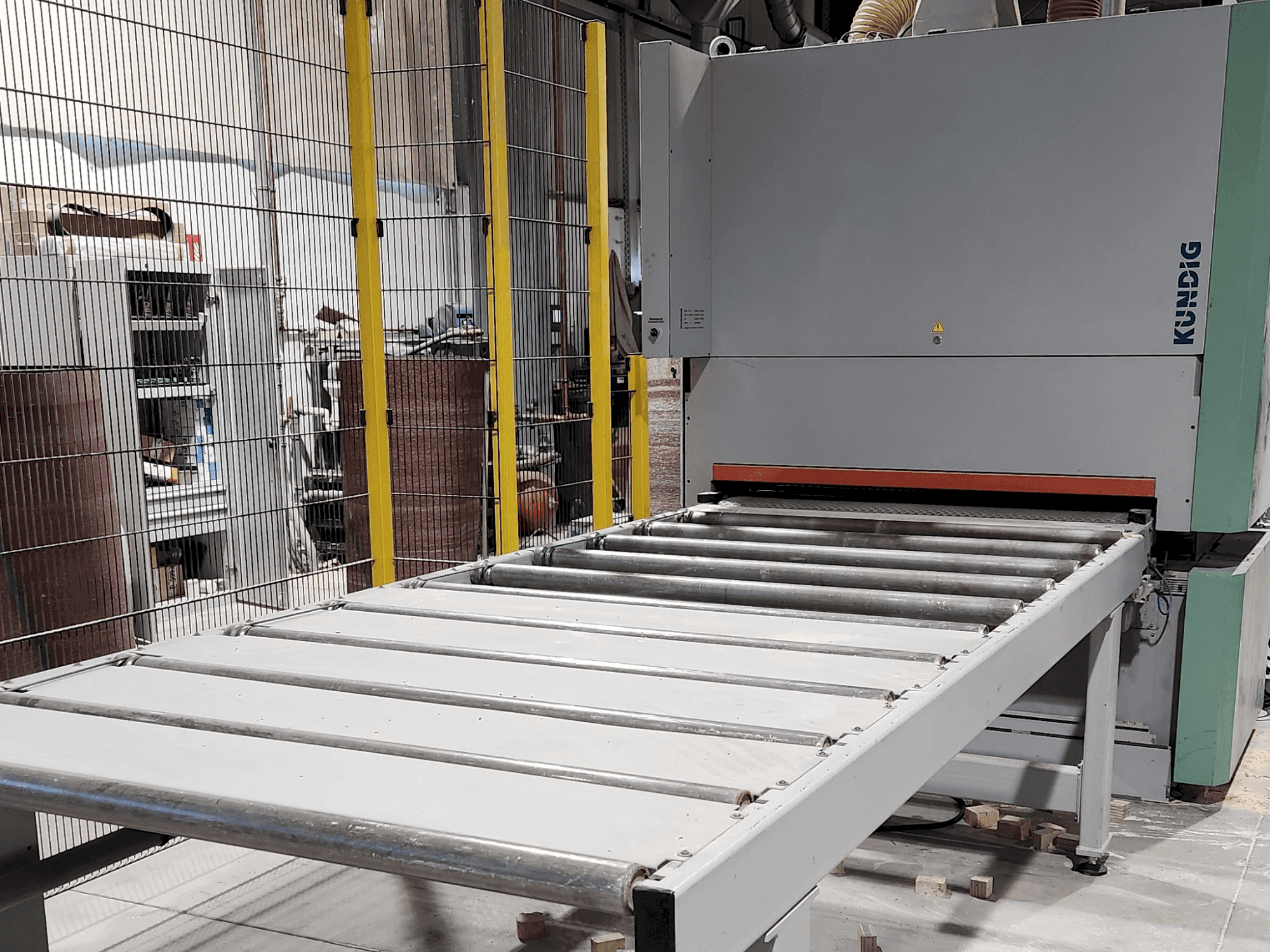

Kundig - Premium-2 1350-RGDE-SAN-KUN-2018-00001

Additional equipment

• Steel roller

• Rubber roller with a device for a needle roller (unused)

• Belt release

Machine Benefits

Technical Machine Benefits

• Control: Omron SYSMAC CP1H

• Two roller conveyors, each 3 meters long

• Sanding belts (remaining quantity unspecified)

• V-belts

• Various small parts

• Premium 2 1350 RP/RE and RE-L

• Sanding belt motor RP/RE: 15 kW

• Feed motor frequency-controlled RP/RE: 1.5 kW

• Height adjustment motor RP/RE: 0.75 kW

• Vacuum motor frequency-controlled RE-L: 2.2 kW

• Total connected load RP/RE: 17 kW

• Total connected load RE-L: 30 kW

• Operating voltage RP/RE: 400 V

• Maximum current consumption RP/RE: 36 A

• Maximum current consumption RE-L: 56 A

• Required slow-blow fuse minimum RP/RE: 40 A

• Required slow-blow fuse minimum RE-L: 63 A

• Cable cross-section reduced load RP/RE: 5x6 mm²

• Cable cross-section reduced load RE-L: 5x10 mm²

• Cable cross-section correct dimensioning RP/RE: 5x6 mm²

• Cable cross-section correct dimensioning RE-L: 5x10 mm²

• Extraction connection for 1st unit diameter RP/RE: 180 mm

• Extraction connection for 1st unit diameter RE-L: 180 mm

• Extraction connection for 2nd unit diameter RE-L: 180 mm

• Extraction connection for belt blow-off diameter RE-L: 150 mm

• Required total extraction connection diameter RP/RE: 200 mm

• Required total extraction connection diameter RE-L: 300 mm

• Air velocity at extraction openings RP/RE: 22 m/s

• Total air volume for dust extraction RP/RE: 2000 m³/h

• Total air volume for dust extraction RE-L: 5400 m³/h

• Negative pressure RP/RE: 880 Pa

• Compressed air for belt tensioning and oscillation RP/RE: 2.5 Nm³/h

• Compressed air for belt or workpiece blow-off per unit RE-L: 130 Nm³/h

• Operating pressure RP/RE: 7 bar

• Sanding belt length (all units) RP/RE: 2000 mm

• Sanding belt width (all units) RP/RE: 1350 mm

• Maximum workpiece width RP/RE: 1350 mm

• Minimum workpiece thickness RP/RE: 4 mm

• Maximum workpiece passage height RP/RE: 200 mm

• Working height including machine base RP/RE: 910 mm

• Feed speed range RP/RE: 3–15 m/min

• Total machine length RP/RE: 1690 mm

• Total machine length RE-L: 1850 mm

• Total machine width RP/RE: 1790 mm

• Machine height including base and extraction outlet RP/RE: 1950 mm

• Maximum machine height including base and extraction outlet RP/RE: 2150 mm

• Net weight approx. RP/RE: 2300 kg
