- ➤ Used Krauss Maffei KMD 75 XS/P For Sale | gindumac.com

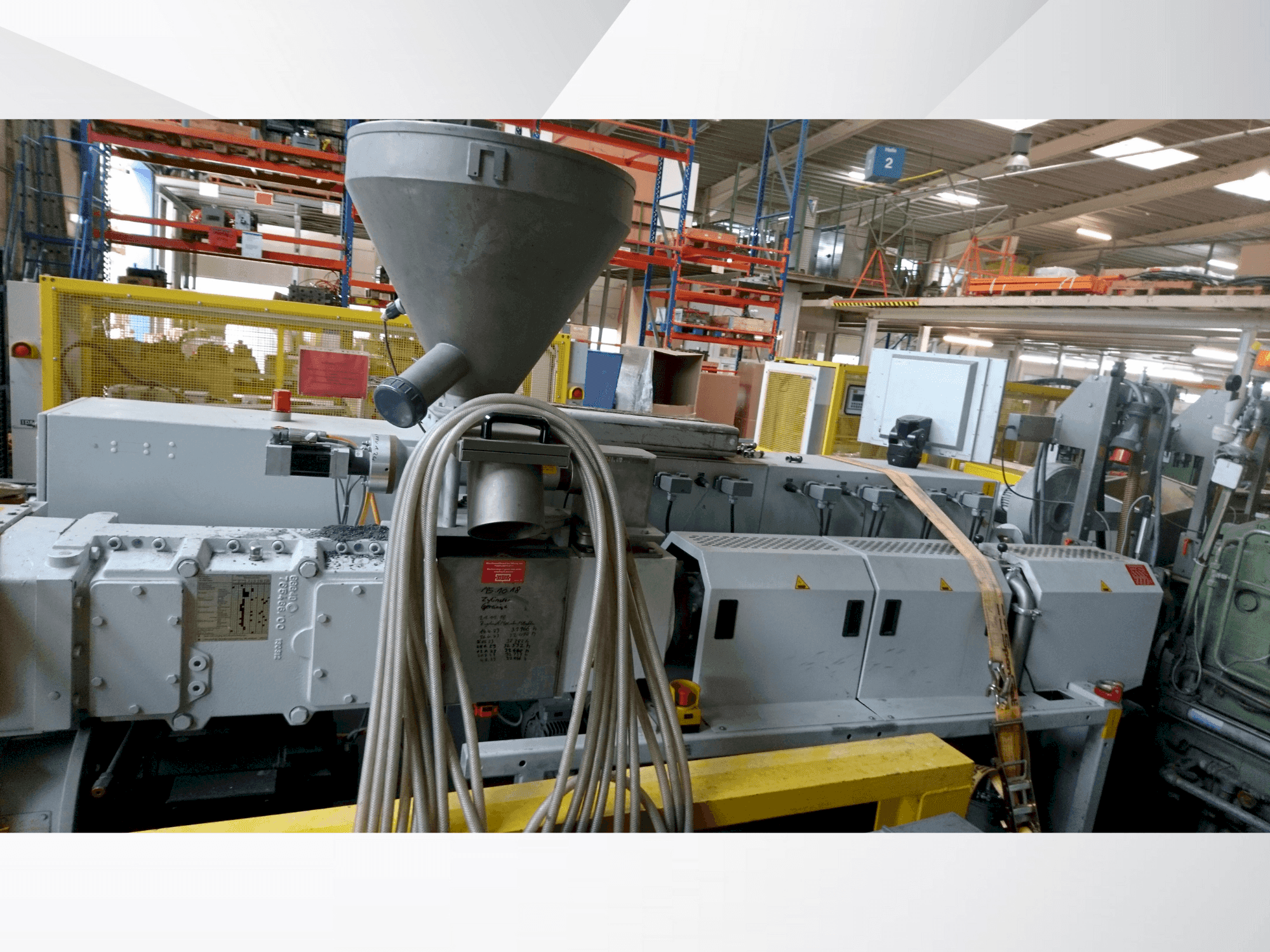

This twin screw extruder was manufactured in 2013. It features a robust 4m long base frame, galvanized and powder-coated for durability. The machine includes three liquid ring vacuum pumps and a motorized longitudinal adjustment of 400mm. It's equipped with a caterpillar haul-off capable of speeds from 0.7 to 14.0 m/min. Ideal for producing roller shutter profiles, the Krauss Maffei KMD 75 XS/P machine we have for sale represents a significant opportunity. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2013
- MODEL: KMD 75 XS/P
- application type: Extrusion
- Location: Germany
- machine type: Twin Screw Extruder
- availability: Immediately
Technical Information - Krauss Maffei KMD 75 XS/P
Additional Equipment
- - Extruder (Krauss Maffei)
- - Calibration table (Ide)
- - Haul-off (Ide)
- - Separation unit (Ide)
- - Optionally a sawing unit (Battenfeld) can be purchased
Additional Information
- Technical Machine Benefits:
- - Highly specialized for the production of roller shutter profiles from pvc-u granules using the double strand process
- - Galvanized and powder-coated base frame
- - Comprehensive water collection and separation setup, efficient blowing and hauling-off units
- - Advanced punching and cutting units
- - Extrusion height: 1000 mm / extrusion direction: from right to left / base frame: 4m long, galvanized and powder-coated
- - Liquid ring vacuum pumps: 3, single-stage design / calibration holder: 400x3950 mm / water collection tray: v2a / water collection tank and separator: pp
- - Drain diameter: nw 70 / overflow tank on the inlet side: v2a / distribution racks: 3 / longitudinal adjustment: 400 mm, motorized
- - Blower unit: frame length 2m, blowing direction in extrusion direction, air tunnel size 250x120x1800mm, manual height adjustment / empty frame: 0. 6 m long
- - Caterpillar haul-off: haul-off speed 0. 7 to 14. 0 m/min, max. Haul-off force 1000n, contact length approx. 1500 mm, hydraulic caterpillar clamping, 2 transport caterpillars with 3 duplex roller chains each, 2 guide rollers at the infeed
- - Punching unit: base frame 1m long, 2 upper punching parts mounted, travelling distance per punching slide: 25 mm, servo-motor-driven, theoretical punching force 3000n, punching stroke length 10 mm, punching sequence max 300 strokes/min
- Qualitative Machine Benefits:
- - Length encoder: 24v, 5000 pulses/revolution
- - Cross-cutting unit for double strand extrusion: travelling distance 400 mm pneumatically supported, 2 cutting heads with cross stroke approx. 65 mm each
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
