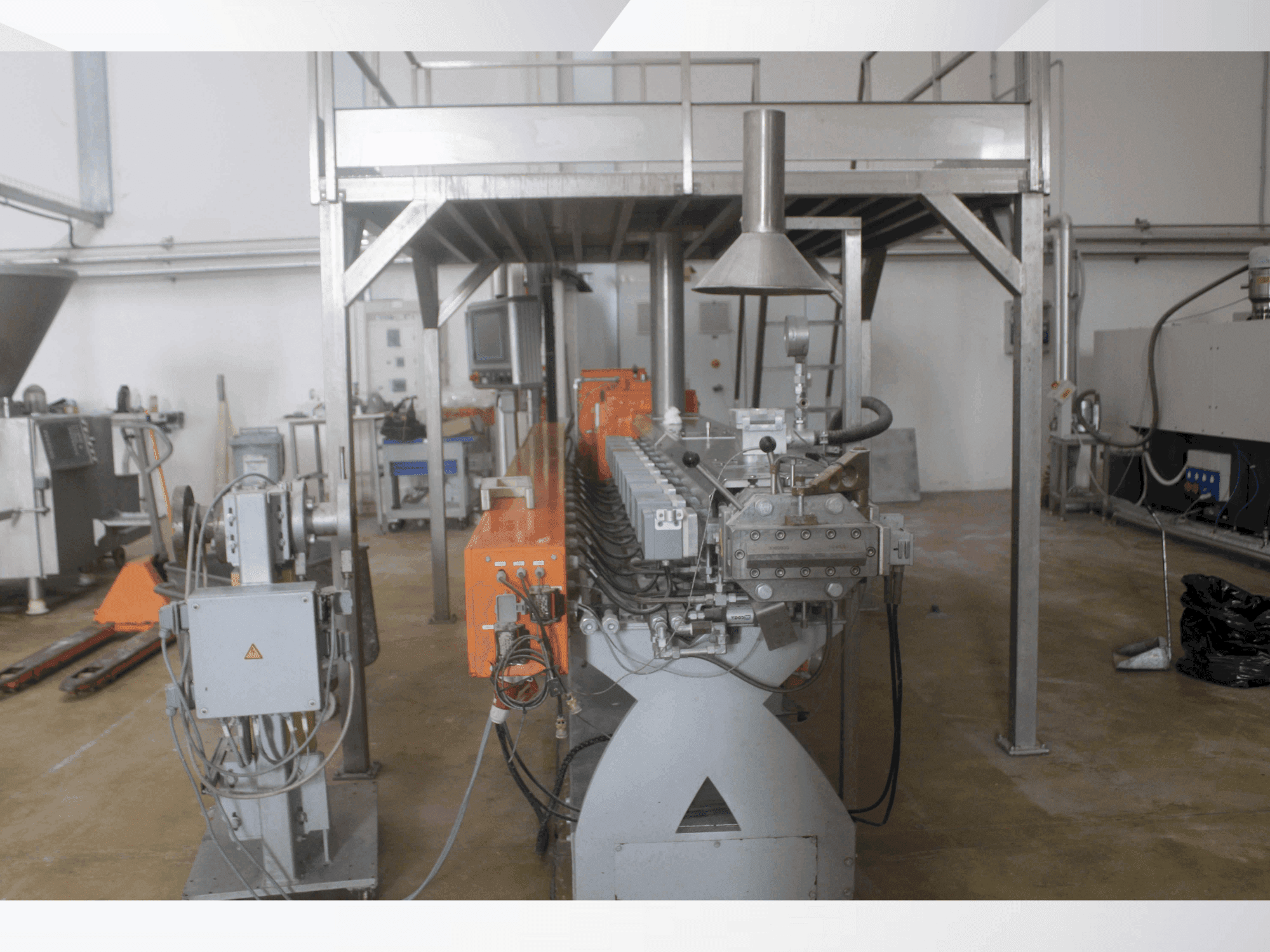

LEISTRITZ - ZSE60MAXX-48DIT-EXT-LEI-2012-00001

Additional information

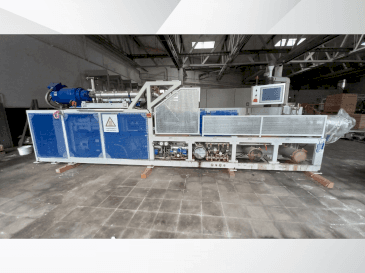

• The machine is a co-rotating twin-screw extruder designed for high-performance compounding and processing of advanced polymer materials. It is specifically configured for the production of biodegradable polymers but can be adapted to various extrusion processes. The machine is new and has never been tested.

• The machine represents a professional-grade extrusion solution for companies involved in bioplastics, masterbatch production, or specialty compounding.

Machine Data

• Screw center distance: 50.0 mm

• Feed screw diameter: 55.0 – 61.9 mm

• Screw diameter: 61.9 mm

• Diameter of kneading discs and kneading blocks: 61.7 mm

• Screw material: VSA2

• Barrel diameter: 62.3 H8

• Barrel material: VSA2

• Screw length: 48D

• Mechanical screw torque: 2 × 1375 Nm

• Drive type: Three-phase motor

• Drive power: 121 kW

• Max. motor speed: 1620 rpm

• Gear ratio: i = 4.05

• Max. screw speed: 400 rpm

• Power transmission: Safety coupling (shutdown torque 868 Nm)

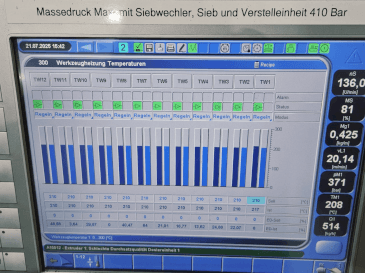

• Number of temperature-control zones: 11

• Heating power: 100.80 kW

• Number of cooling zones: 11

• Cooling type: ZIK (intensive barrel cooling)

• Feed zone cooling: Water

• Max. melt pressure: 220 bar

• Max. melt temperature: 350 °C

• Injection height: 1050 mm

• Sound power level: < 85 dB(A)

• Approx. weight: Specified on machine frame
