- ➤ Used Krauss Maffei KM125-520C2 For Sale | gindumac.com

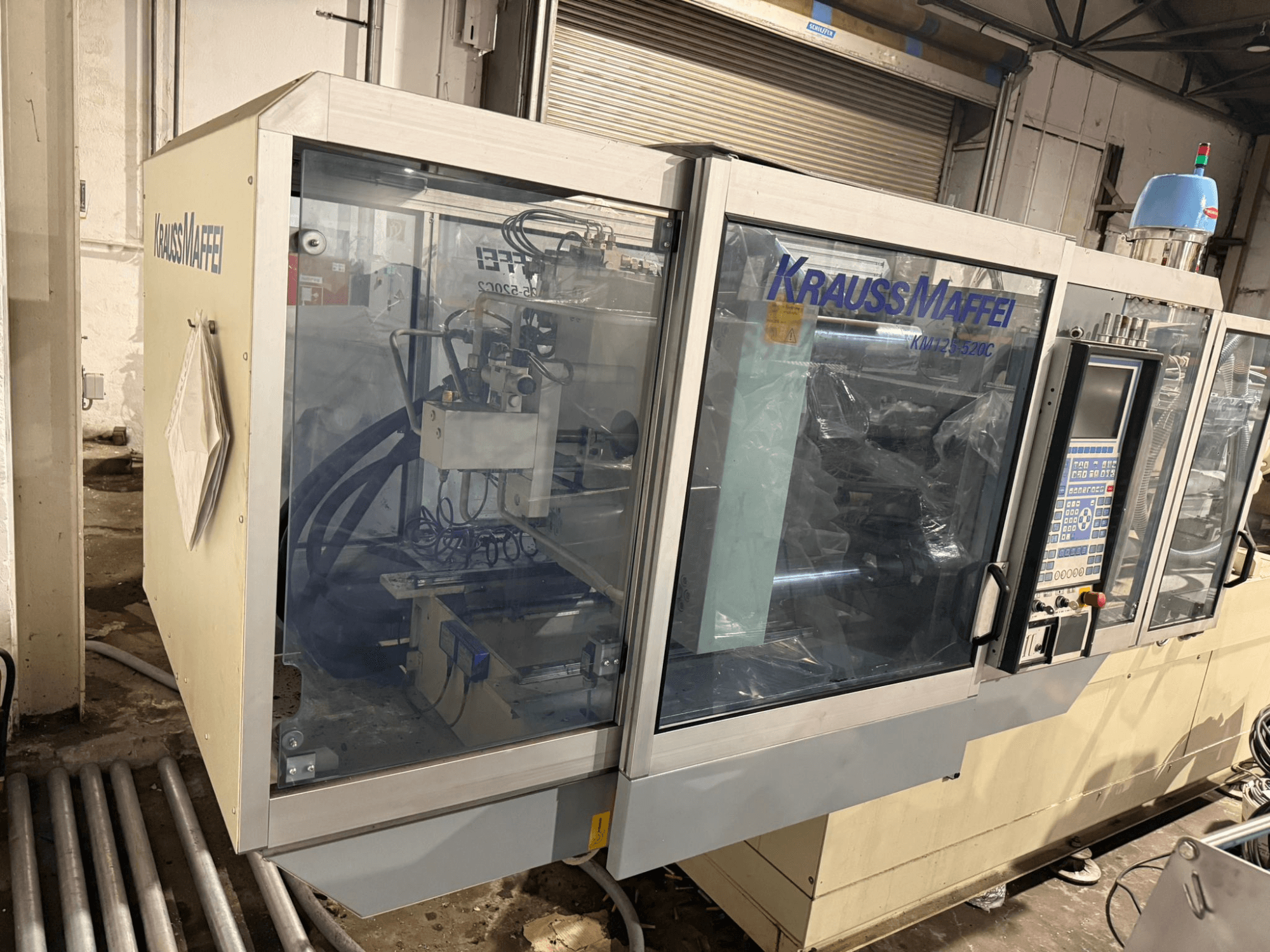

Hydraulic injection moulding machine manufactured in 2003. This Krauss Maffei KM125-520C2 features a clamping force of 1250 kN and an opening stroke of 900 mm. It has a screw diameter option of 35 / 40 / 45 mm and a shot volume of approximately 156 / 204 / 258 cm³. If you are looking to get high-quality injection moulding capabilities, consider the Krauss Maffei KM125-520C2 machine we have for sale. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2003
- MODEL: KM125-520C2
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei KM125-520C2
Dimensions
- Machine Height: 2100 mm
- Machine Length: 4400 mm
- Machine Weight: 6000 kg
- Machine Width: 1500 mm
Technical Specification
- Clamping Force: 1250 kN
Additional Information
Opening force: 35 / 28 kN
Tie bar spacing (H × V): 470 × 470 mm
Mould installation height min.: 300 mm
Opening stroke: 900 mm
Ejector stroke: 150 mm
Ejector force: 22 / 10 kN
Injection unit: SP 520
Screw diameter options: 35 / 40 / 45 mm
Shot volume: approx. 156 / 204 / 258 cm³
Injection pressure: up to approx. 1800+ bar (depending on screw)
Screw speed: approx. 391 / 489 rpm
Plasticizing rate (PS): approx. 22–41 g/s (depending on screw)
Pump motor power: 18.5 kW
Installed heating capacity: 13 kW
Oil filling quantity: 345 l
Max. mould weight: 1485 kg
Power supply: 3 phases
Operating voltage: 400 V
Frequency: 50 Hz
Additional equipment
Cooler (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
