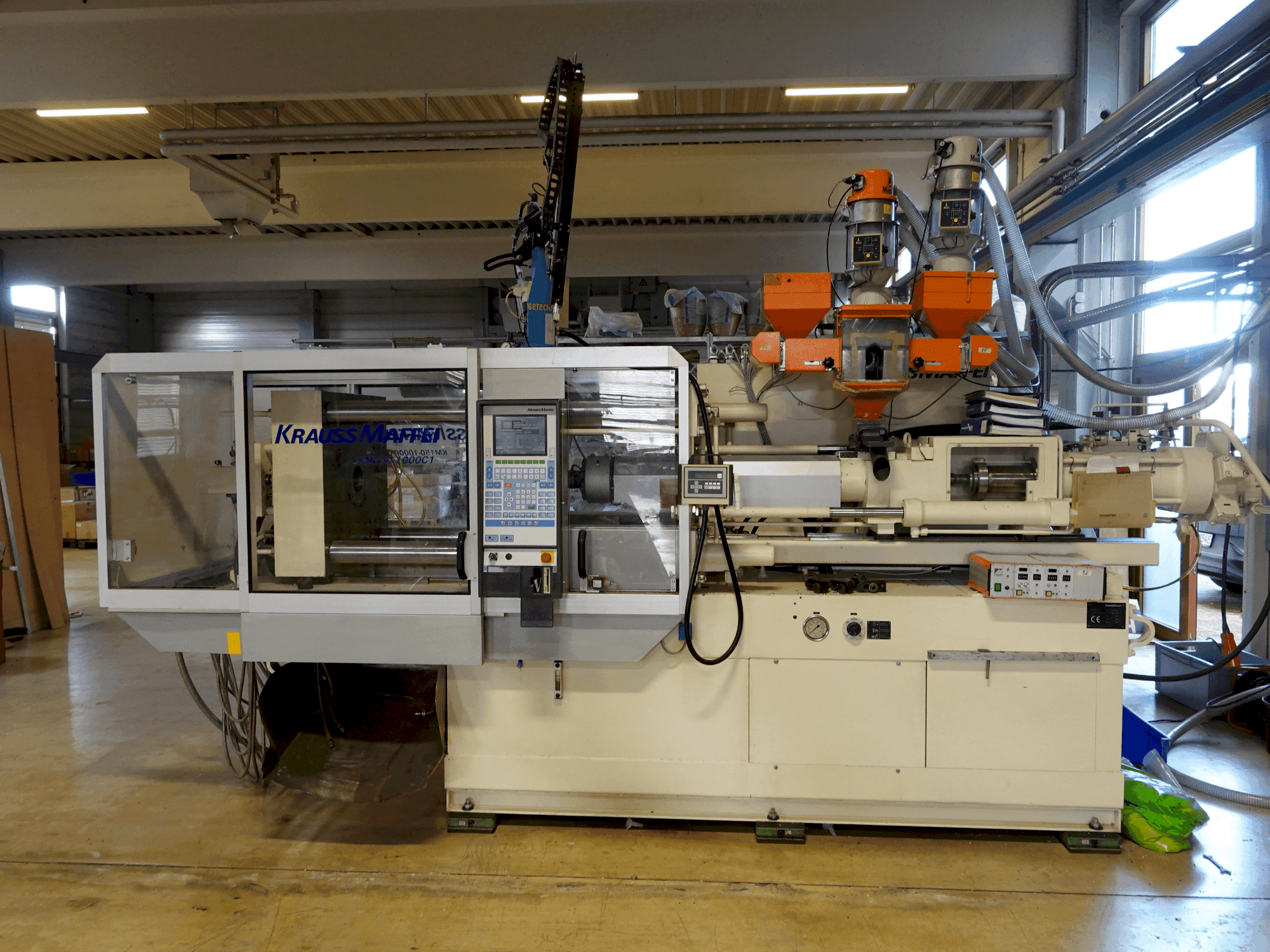

Front view of Krauss Maffei KM 150-1000 C1  machine

Krauss Maffei - KM 150-1000 C1DE-INJ-KRA-1997-00003

£ 12,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This hydraulic injection moulding machine was manufactured in 1997. It features a clamping force of 1500 kN and a screw diameter of 55 mm, suitable for precise injection moulding processes. The machine dimensions are 4.97 x 1.48 x 2.16 m, and it weighs 8 tonnes. If you are looking to get high quality moulding capabilities consider the Krauss Maffei KM 150-1000 C1 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: Krauss Maffei
  • year: 1997
  • MODEL: KM 150-1000 C1
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Krauss Maffei KM 150-1000 C1

General Data

  • Measurements width: 1480 MM
  • Measurements depth: 4970 MM
  • Measurements height: 2160 MM
  • Machine weight: 8000 KG

Injection Unit

  • Screw diameter: 55 mm
  • Shot weight: 476 g
  • Stroke volume: 523 cm³
  • Injection pressure: 1904 bar
  • Screw speed: 196/280 1/min

Clamping unit

  • Clamping force: 1500 kN
  • Opening stroke: 600 mm
  • Distance between bars: 500 x 500 mm
  • Size of mold platens: 780 x 790 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 22/11 kN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Mould opening force: 86 kn
      • - Mould installation height: 300 mm
      • - Opening width: 900 mm
      • - L/d ratio: 20 mm
      • - Nozzle contact force: 110 kn
      • - Net weight with control cabinet: 8 tonnes

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
