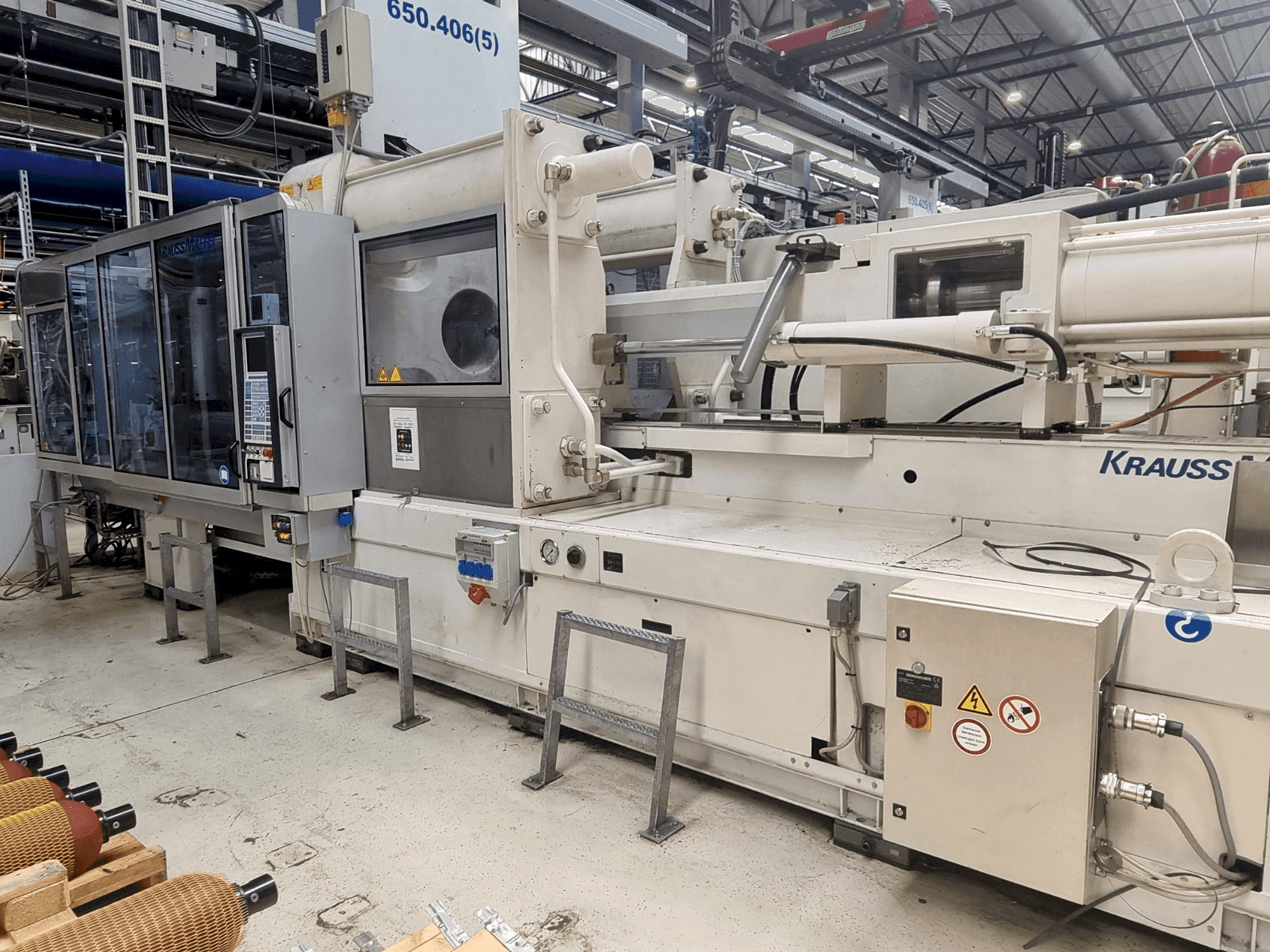

Front view of Krauss Maffei 650-2700 C2  machine

Krauss Maffei - 650-2700 C2DE-INJ-KRA-2004-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This hydraulic injection moulding machine was manufactured in 2004 by Krauss Maffei. It features a clamping force of 6500 kN and a screw diameter of 80 mm, capable of handling significant mould weights up to 11400 kg. The machine includes a horizontal assembly for efficient operation and a needle shut-off nozzle for precise injection control. A great opportunity to buy this Krauss Maffei 650-2700 C2 hydraulic injection moulding machine. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

  • brand: Krauss Maffei
  • year: 2004
  • MODEL: 650-2700 C2
  • production hours: 30870
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - Krauss Maffei 650-2700 C2

Control Unit

  • Model: 2K

Injection Unit

  • Screw diameter: 80 mm / 35 mm
  • Stroke volume: 1433 cm³ / 155 cm³
  • Injection pressure: 1800 bar
  • Plasticizing rate max.: 108 g/s / 22 g/s

Clamping unit

  • Clamping force: 6500 kN
  • Opening stroke: 1300 mm
  • Max open daylight: 1842 mm
  • Distance between bars: 1000 mm
  • Mould height min: 542 mm

    Additional Equipment

    • - Needle shut-off nozzle (Injection Unit 1): Yes
    • - Centering bar: Tecnomagnete

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Plasticising stroke (injection unit 1): 287 mm / plasticising stroke (injection unit 2): 162 mm
        • - Nozzle radius (injection unit 1): 35 mm / nozzle radius (injection unit 2): 19 mm
        • - High between tie bars: 930 mm
        • - Mould weight max: 11400 kg // max mould weight with plate: 7600 kg
        • - Accumulator number: 1
        • - Machine pre-fusing current: 250 a
        • - Heater pre-fusing current: 315 a
        • - Amount of oil: 1240 liters
        • - Clamping screw thread bwap: 16113. 56. 00
        • - Clamping screw thread fwap: 16112. 55. 00

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
