Krauss Maffei - 250-1400 C2DE-INJ-KRA-1998-00006

Name: Krauss Maffei 250-1400 C2
Brand: Krauss Maffei
SKU: DE-INJ-KRA-1998-00006
Price: 7850 GBP
Availability: InStock

£ 7,850

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 250-1400 C2 For Sale | gindumac.com

Show in original language

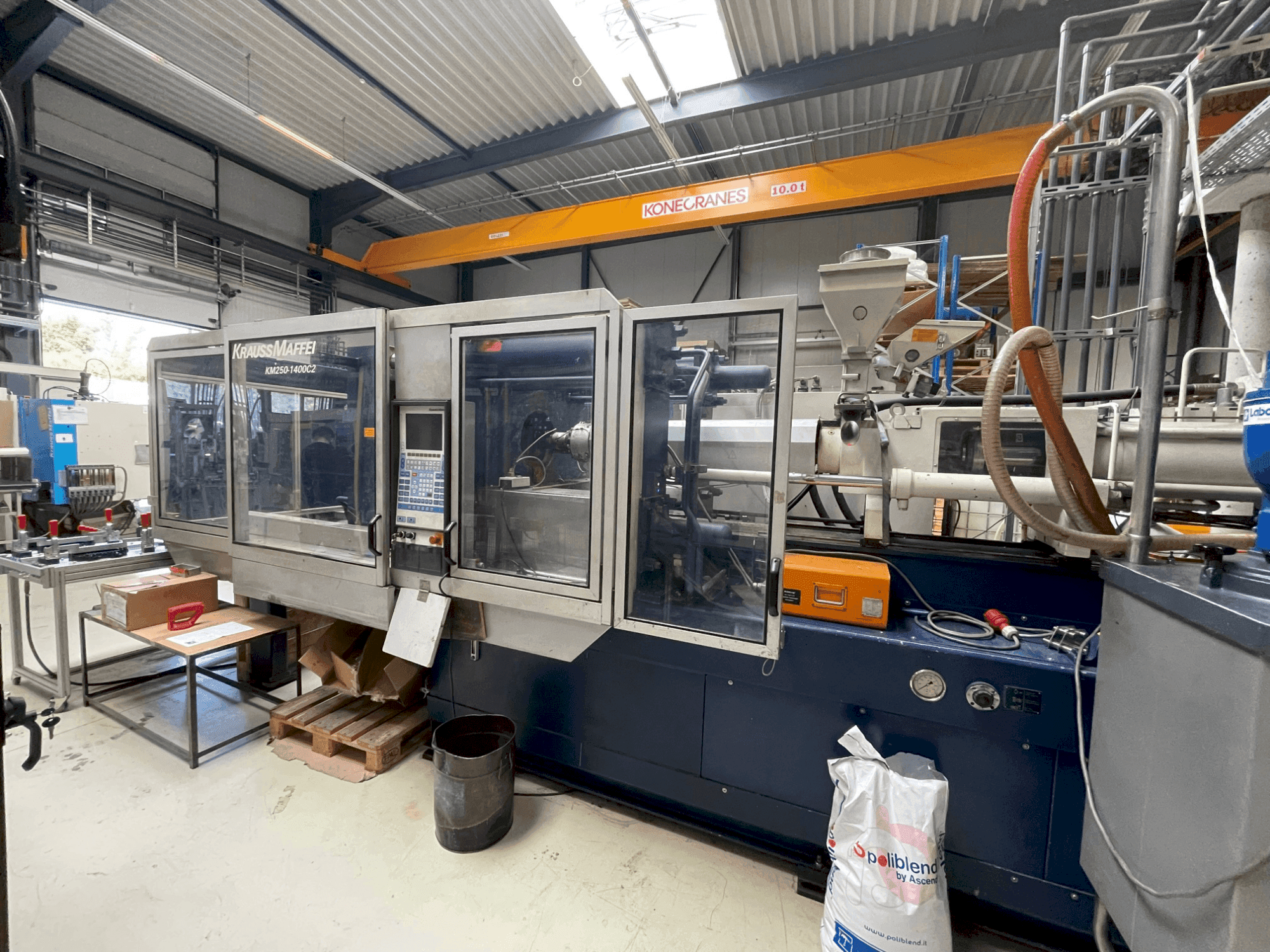

This Krauss Maffei 250-1400 C2 hydraulic injection moulding machine was manufactured in 1998. It features a clamping force of 2500/3000 kN, screw diameters of 55/60/70 mm, and a screw drive power of 58 kW. Ideal for precision molding with a shot weight up to 841 g in PS. Consider the opportunity to buy this Krauss Maffei 250-1400 C2 hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Krauss Maffei
year: 1998
MODEL: 250-1400 C2
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 250-1400 C2

General Data

Measurements width: 2040 mm
Measurements depth: 5970 mm
Measurements height: 2390 mm
Machine weight: 12000 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 55/60/70 mm
Shot weight: 519/618/841 g
Injection pressure: 2380/2000/1469 bar

Clamping unit

Clamping force: 2500/3000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - L/d ratio: 22/20/17
- - Stroke/d ratio: 4. 4/4. 0/3. 4
- - Swivel volume: 570/679/924 cm³
- - Injection flow: standard: 273/325/443 cm³/s increased: 713/848/1155 cm³/s
- - Screw drive power: 58 kw
- - Screw speed standard/ze: 259/368 rpm
- - Plasticizing flow for ps at max: standard: 49/58/80 g/s, ze: 70/83/113 g/s
- - Nozzle contact force: 110 kn

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
