KONDIA B-500

Photo Gallery

KONDIA - B-500ES-MIL-KON-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

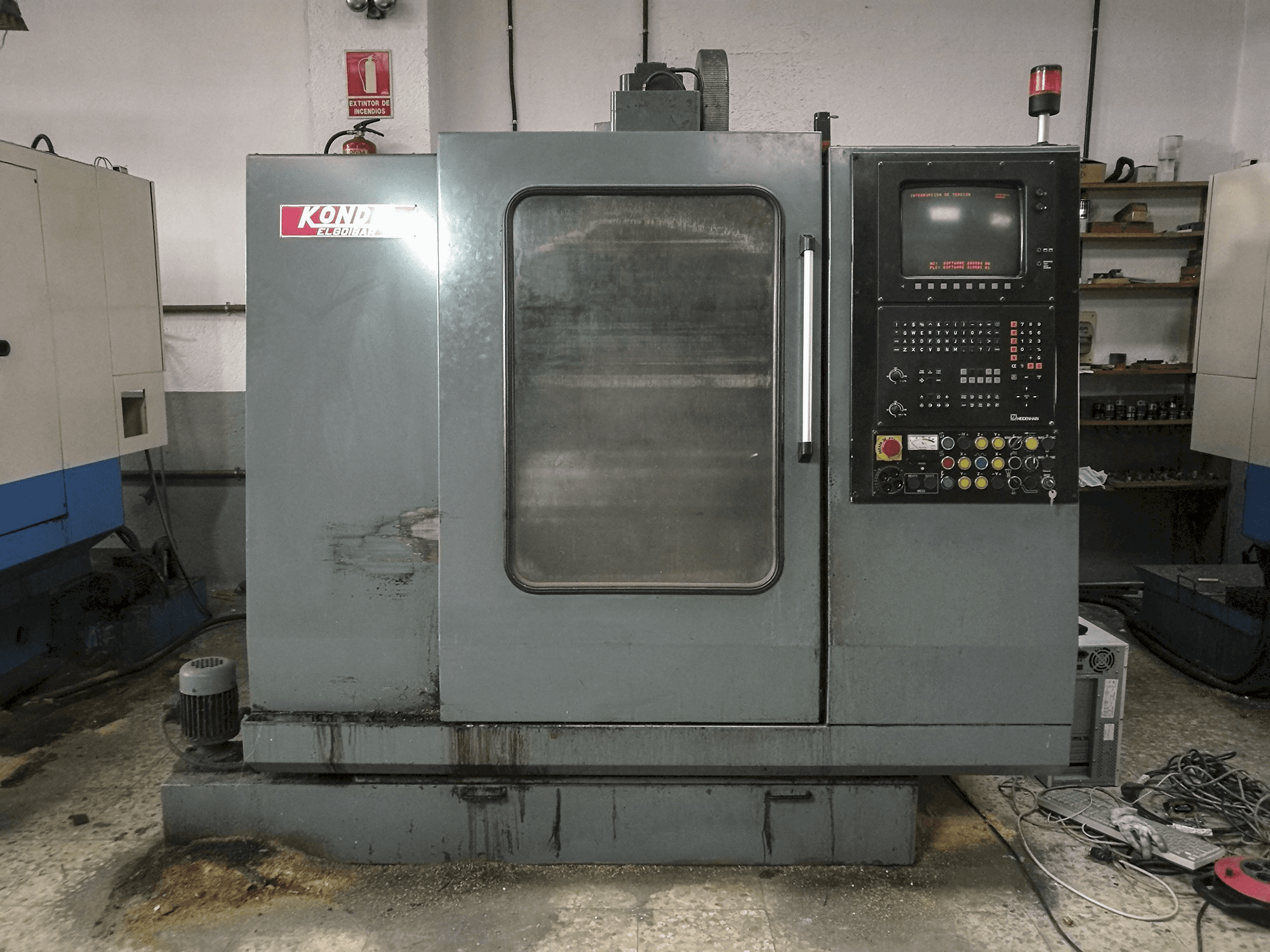

KONDIA B-500 Vertical Machining Center

Show in original language

This KONDIA B-500 Vertical Machining Center, built 1997 in Spain, has an estimated production time of 20000 working hours. Equipped with a Heidenhain TNC 415 Control unit, this machine has mainly worked with brass parts during the past.

Overview

brand: KONDIA
year: 1997
MODEL: B-500
production hours: 20000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KONDIA B-500

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 415

Dimensions

Machine Depth: 1950 mm
Machine Height: 2240 mm
Machine Weight: 3100 kg
Table Length: 700 mm
Table Width: 350 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 380 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Speed: 6000 RPM
Tool Stations: 18

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
