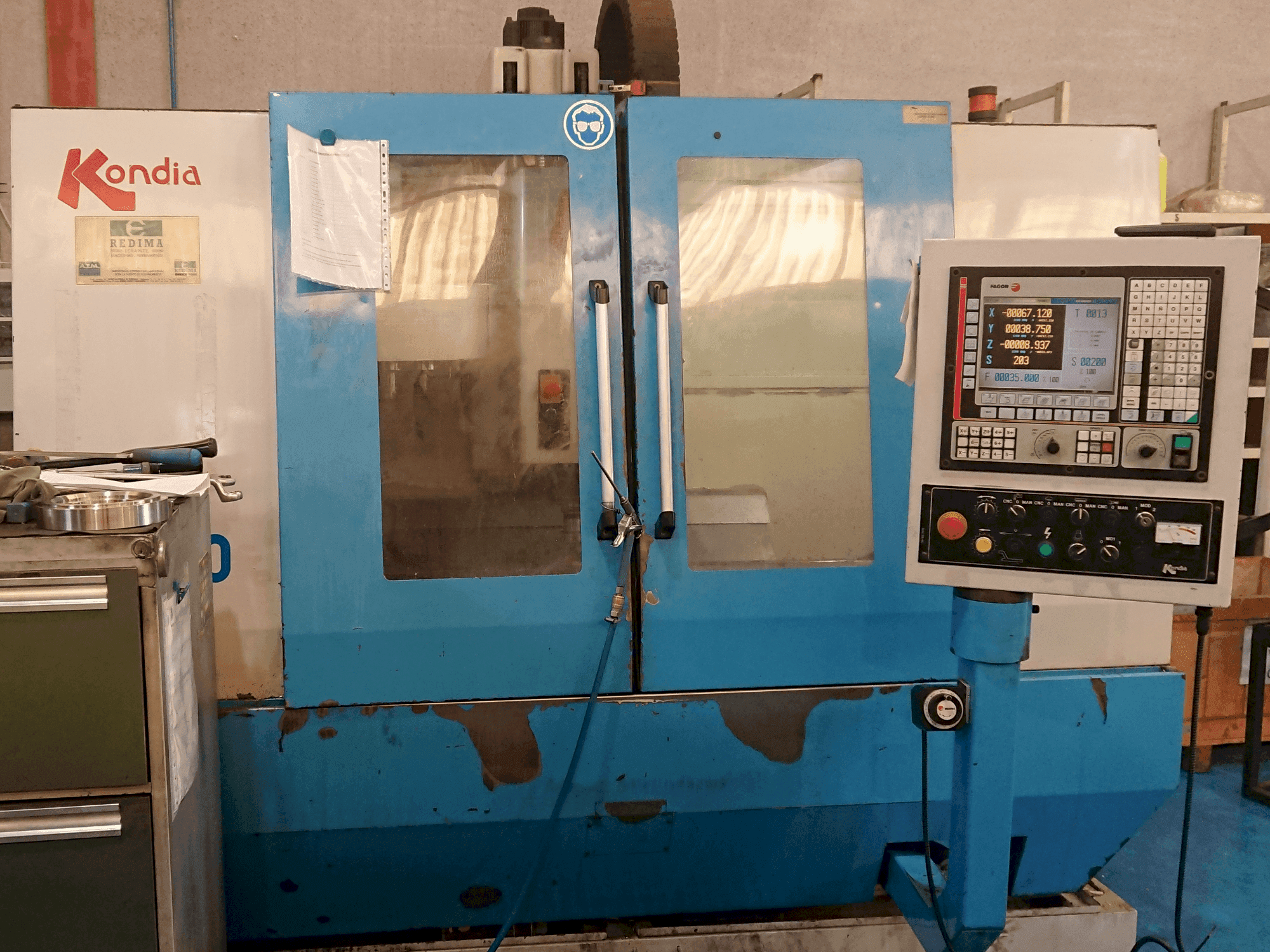

Front view of KONDIA B-1050  machine

KONDIA - B-1050ES-MIL-KON-2000-00005

£ 16,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis KONDIA B-1050 vertical machining centre was manufactured in 2000. It features a robust table with dimensions of 1200 x 500 mm and can handle a maximum weight of 450 kgs. Equipped with a high-speed spindle up to 6,000 r.p.m. and a 22-tool automatic changer, it ensures efficient operation. Rapid feeds reach up to 25,000 mm/min on X-Y axes. Ideal for precision machining, buy this KONDia B-1050 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: KONDIA
  • year: 2000
  • MODEL: B-1050
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - KONDIA B-1050

General Data

  • Measurements height: 2870 mm
  • Machine weight: 5000 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 100-6000 rpm 1/MIN
  • Spindle motor power: 7.5 kW
  • Tool taper: Size 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 610 mm

Table

  • Outer length: 1200 mm
  • Outer width: 500 mm

    Additional Equipment

    • - Spindle head cooling system.
    • - Tool cooling system.
    • - Automatic Tool Changer with 22 tool positions.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table dimensions: 1200 x 500 mm.
        • - Maximum recommended weight on the table: 450 kgs.
        • - Floor space occupied: 2450 x 2342 mm.
        • - High rapid feed rates, high accuracy
      • Qualitative Machine Benefits:
        • - High resolution for precise machining

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
