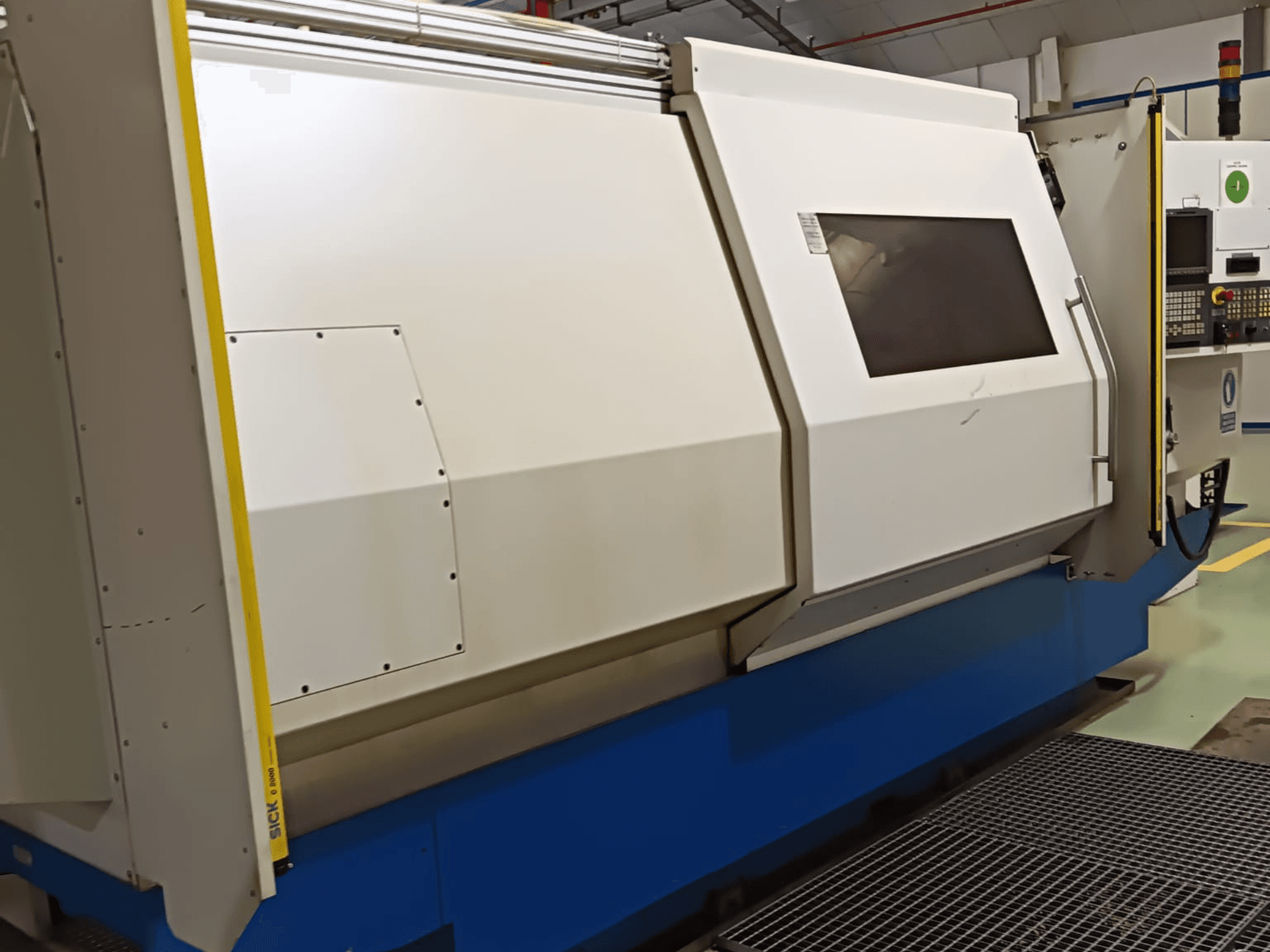

This JUNKER jucam 5002/51 cylindrical grinding machine was manufactured in 2002. It features a FANUC control system, MARPOSS verification, and a robust 24 kW main drive motor. Capable of grinding lengths up to 1000 mm and diameters up to 280 mm, it supports workpieces from 20 to 80 mm. Weighing 11,000 kg, it ensures stability and precision. Contact us for more information about this machine.
Overview
- brand: JUNKER
- year: 2002
- MODEL: jucam 5002/51
- application type: Grinding
- Location: Spain
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - JUNKER jucam 5002/51
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 11000 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 24 kW
Additional Information
Grinding length between centers: 1000 mm
Max grinding diameter: 280 mm
Workpiece diameter range: 20–80 mm
Turning diameter at wheel height: 70 mm
Workpiece spindle: 100 × 400 mm
Movable headstock: chain-adjusted
Workpiece clamping pressure: hydraulic
Axes: Z-axis CNC-controlled; wheel spindle head X-axis CNC-controlled
Wheel spindle: 180 × 400 mm
Wheel dimensions: 400 × 127 mm
Peripheral speed: 90 m/s
Standard collar (wheel bore) diameter: 127 mm
Balancing: electronic
Additional equipment
Verification system: MARPOSS (in-process gauging)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
