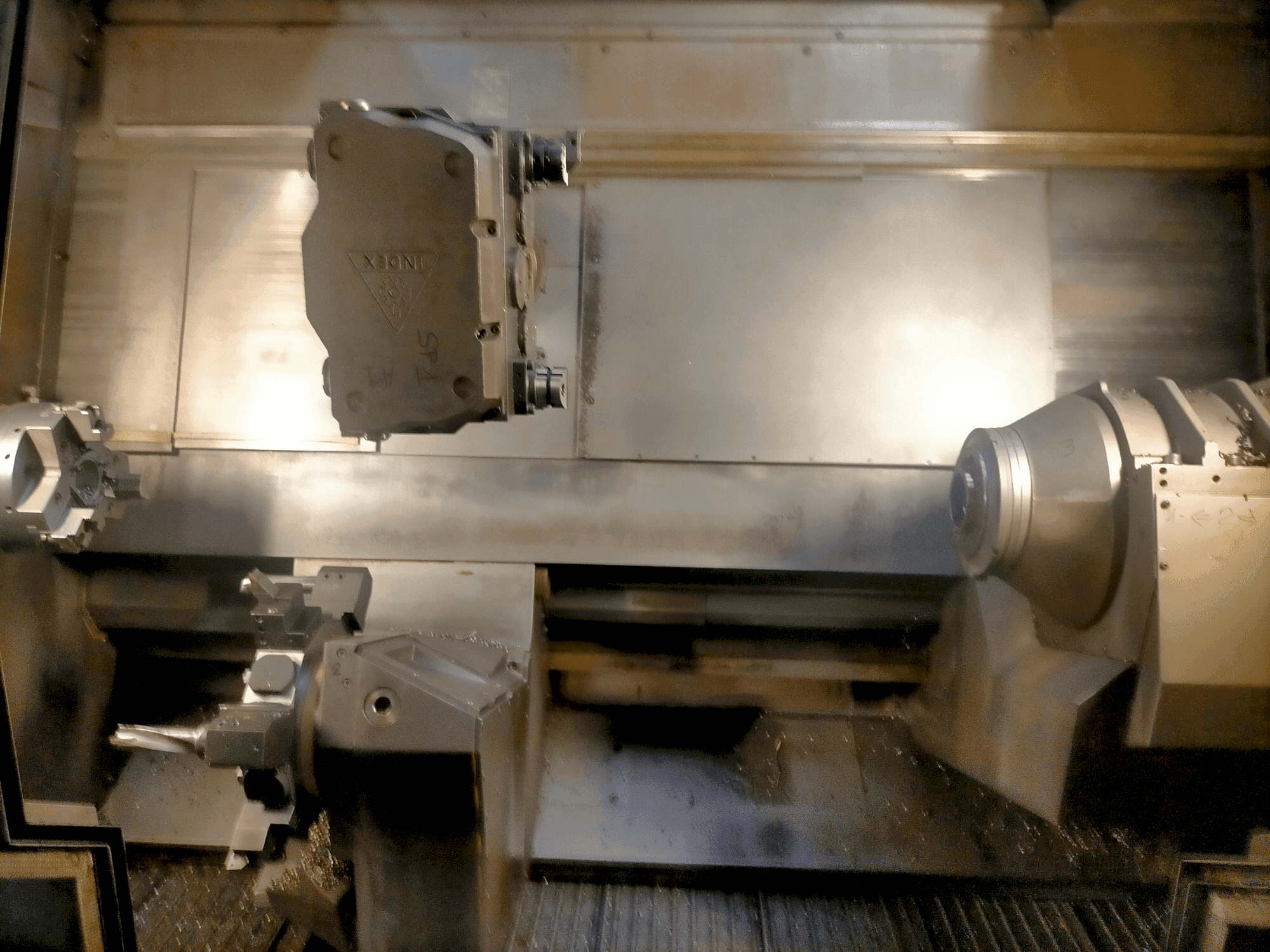

This 3-axis Index G300 FLEX horizontal turning machine was manufactured in 1999. It features a max workpiece diameter of 250 mm, HSK-B63 tool interface, and a tool spindle with a drive power of 15 kW. The machine offers a spindle speed up to 6000 rpm, with optional 8000 rpm, and includes internal and external coolant supply. Consider the opportunity to buy this Index G300 FLEX horizontal turning machine. Contact us for further details regarding this machine.

Overview

brand: Index
year: 1999
MODEL: G300 FLEX
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Index G300 FLEX

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 215 mm
X-AXIS Feed Force: 8000
Y-AXIS Movement: 180 mm
Y-AXIS Feed Force: 16000
Z-AXIS Movement: 950 mm
Z-AXIS Feed Force: 13000

Tools

Number of stations: 24
Max weight: 3 kg
Max tool length: 300 mm
Type of tool holder: HSK – B63

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter: 250 mm
- - Tool size: 125 x 150 mm
- - Bearing diameter: 30 mm
- - With internal & external coolant supply

Extra information

- Speed & Torque Gear stage 2 max speed: 1500 rpm (2000 rpm optional) Maximum torque at 40% duty cycle: Gear stage 1: 24–31 Nm Gear stage 2: 96–124 Nm Movement Axes: 3 Travel (X / Y / Z) in mm: 215 / 180 / 950 or 1490 Feed force (N): 8000 / 16000 / 13000 Rapid feed (m/min): 20 / 7.5 / 20 Resolution (µm): 0.05 / 0.05 / 0.1 B-Axis Swivel range: 360° Indexing steps with lock: 5° Angular resolution: 0.001° Swivel time for 180°: 1 sec Cross-Slide 2 Revolver head option with HSK-B63 interface Stations: 24 Tool Changer Swiveling double gripper, hydraulically actuated Gripper distance: 240 mm Swivel time for 180°: 0.5 s Stroke (hydraulic lifting): 150.3 mm Stroke (hydraulic feed): 5 mm Tool change time in work area: 6–11 s Tool Chain Magazine Tool stations: 80, 100, or 120 Tool diameter limit: 90 mm (tools over Ø85 require an empty slot next to them) Chain drive: NC-controlled Chain speed: 40 m/min Rotation angle for tool orientation: ±90° Tool magazine weight: 980 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
