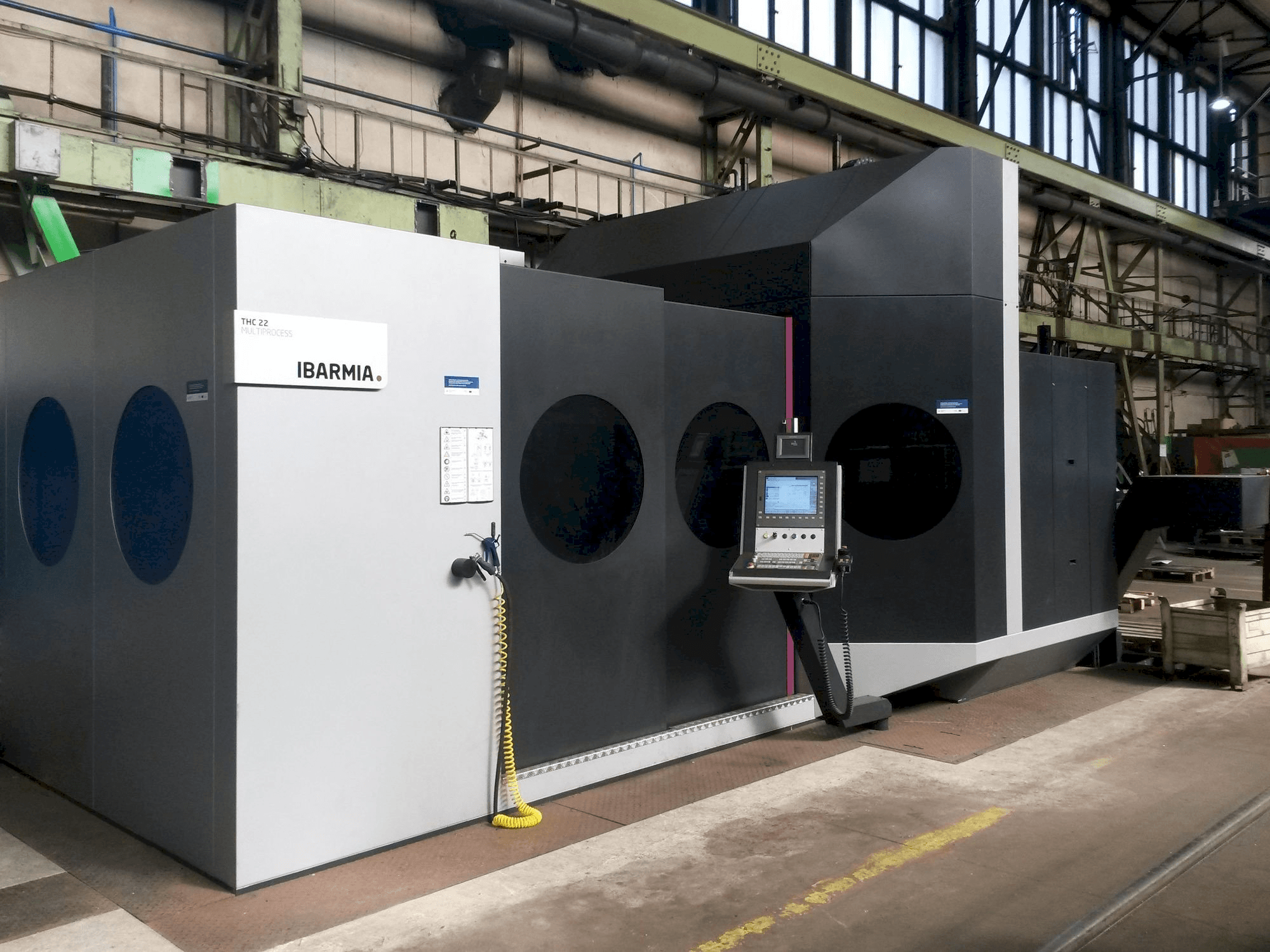

Front view of IBARMIA THC 22 MULTIPROCESS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

IBARMIA THC 22 MULTIPROCESS

Photo Gallery

IBARMIA - THC 22 MULTIPROCESSCZ-MIL-IBA-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
IBARMIA THC 22 MULTIPROCESS Vertical Machining Center

Show in original language

This IBARMIA THC 22 MULTIPROCESS Vertical Machining Center was manufactured in the year 2015 in Spain. It has been working for only 2500 hours. This 5 axis machine is equipped with a Heidenhain TNC i640 HSCI control unit. This machine can work with a spindle speed range up to 12000 rpm. Machine in very good condition, low hours.

Overview

brand: IBARMIA
year: 2015
MODEL: THC 22 MULTIPROCESS
production hours: 2500
application type: Milling
Location: Czech Republic
machine type: Mill-Turn Centre
control unit brand: HEIDENHAIN

Technical Information - IBARMIA THC 22 MULTIPROCESS

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC i640 HSCI

Movement

Number of Axes: 5
X-axis Travel: 2200 mm
Y-axis Travel: 1600 mm
Z-axis Travel: 1500 mm

Technical Specification

Max. Tool Weight: 20 kg
Number of Tools: 60
Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition, low hours!
Machine manual included

Technical Machine Benefits

Turn table diameter 1600 mm, max. Turning dia. 2200 mm
Table rpm 400, power (s1-100%) 81 kw
Min. -max. Distance spindle nose/table 0-1500 mm
Tilting head (b axis) range 180 deg. +/- 15 degrees
Spindle motor power (s6-40%/s1-100%) 74/48 kw
Spindle torque (s6/s1) 452/303 nm
Cooling through spindle, outer tool cooling
Remote hand wheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
