- ➤ Used Mazak INTEGREX J-200 S For Sale | gindumac.com

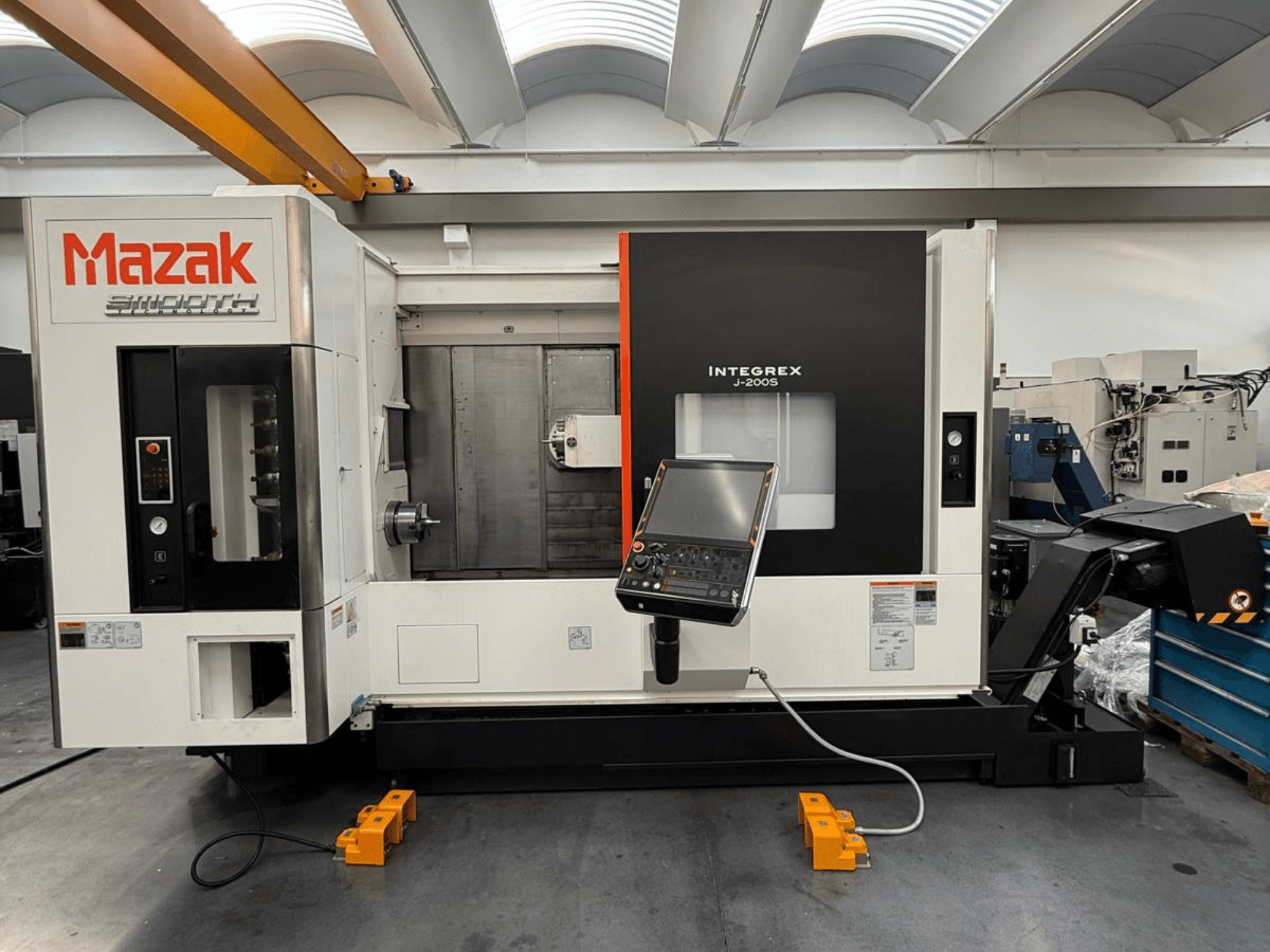

This 5-axis Mazak INTEGREX J-200 S was manufactured in 2021. It features a maximum machining diameter of 500 mm, X-axis travel of 450 mm, Y-axis travel of 200 mm, and Z-axis travel of 960 mm. The machine is equipped with a 36-tool magazine and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality mill-turn capabilities, consider the Mazak INTEGREX J-200 S machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2021
- MODEL: INTEGREX J-200 S
- application type: Milling
- Location: Italy
- machine type: Mill-Turn Centre
Technical Information - Mazak INTEGREX J-200 S
Movement
- Number of Axes: 5
- X-axis Travel: 450 mm
- Y-axis Travel: 200 mm
- Z-axis Travel: 960 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Control: Smooth G
Distance between spindles: 1000 + 440 mm
Max machining diameter: 500 mm
Spindle attachment: A2-6
Max bar capacity: 65 mm
Spindle bore: 76 mm
Tool magazine: 36 Capto
Additional equipment
Chip conveyor: Mayfran belt type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
