DOOSAN - DNM350/5AXHU-MIL-DOO-2017-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DOOSAN DNM350/5AX For Sale | gindumac.com

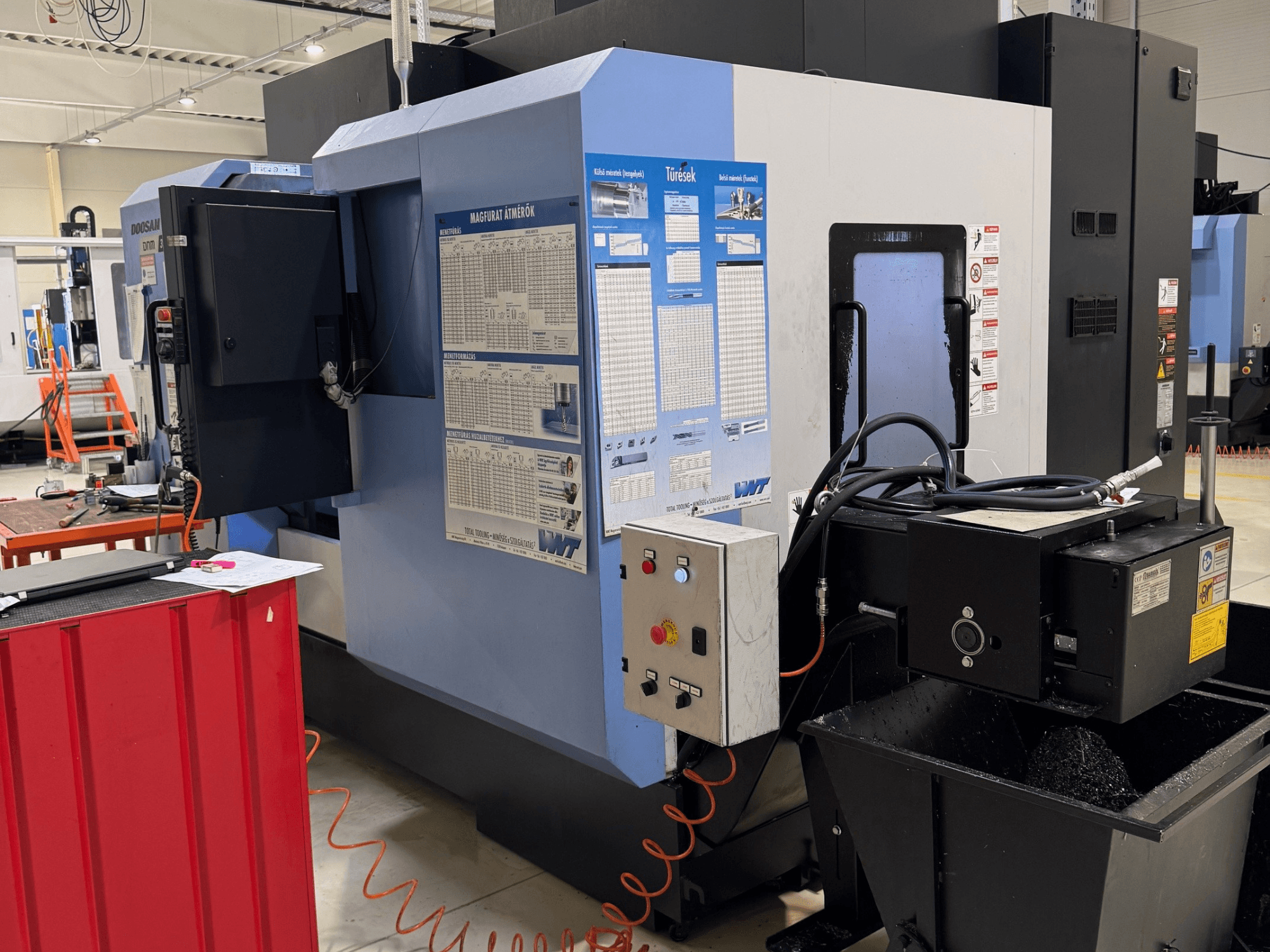

This 5-axis DOOSAN DNM350/5AX was manufactured in 2017. It features a tool turret with 30 stations and utilizes BT40 tool holders. The machine is fully functional and has operated for 5500 hours. If you are looking to get high-quality milling and turning capabilities, consider the DOOSAN DNM350/5AX mill-turn centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: DNM350/5AX
- application type: Milling
- Location: Hungary
- machine type: Mill-Turn Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM350/5AX
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 8500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
- Tool Stations: 30
Additional Information
Tool holder type (tool turret 2): BT40
Operating hours: 5,500
Power supply: AC 380 V, 50/60 Hz
Rated power: 40,61 kVA
Transformer capacity: 5 kVA
Full-load current: 64,67 A
Short-circuit capacity: 10 kA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
