HWACHEON VT 1150 MC
HWACHEON - VT 1150 MC
2011
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HWACHEON VT 1150 MC Vertical Lathe

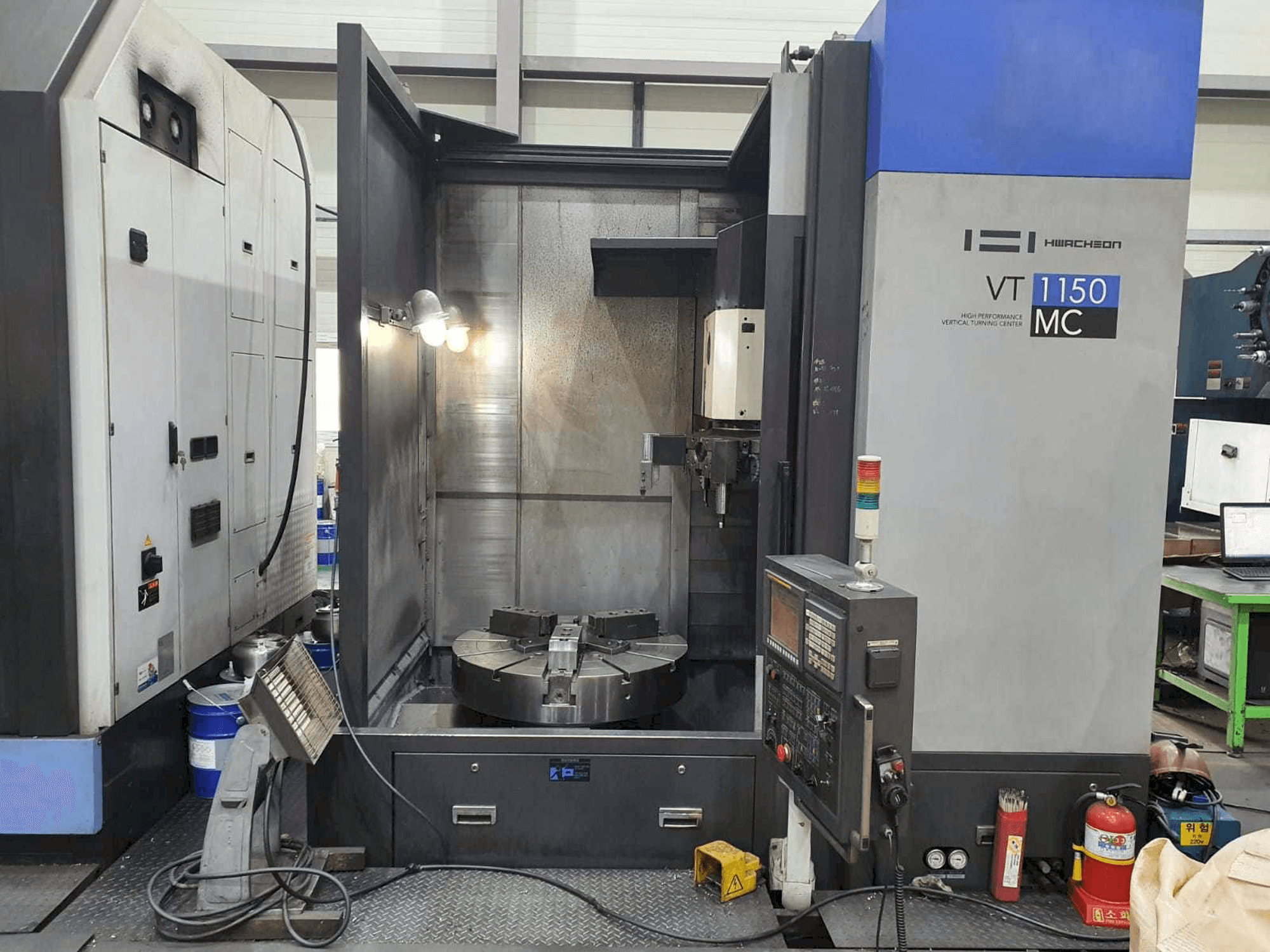

This HWACHEON VT 1150 MC Vertical Lathe was made in the year 2011. It has been on for 10886 hours, of which 3087 are cutting hours. It is equipped with a FANUC Oi-TD control unit. The machine operates with a spindle speed up to 1250 rpm. Includes driven tools and milling function.
Overview
- brand: HWACHEON
- year: 2011
- MODEL: VT 1150 MC
- production hours: 3087
- application type: Turning
- Location: South Korea
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: KR-TUR-HWA-2011-00001
Technical Information
Control Unit
- Brand: FANUC
- Model: Oi-TD
Main drive
- Spindle speed range: 1250 1/MIN
- Spindle motor power: 55 / 45 kW
Tools
- Slots in storage: 24 pos
Additional Information
- Technical Machine Benefits:
- - Driven tools / milling function included
- - Tool size: 32 x Ø60 mm
- - Swing over bed: Ø1350 mm
- - Max. Turning dia. : Ø1320 mm
- - Std. Turning dia. : Ø900 mm
- - Max. Turning length: 950 mm
- - Chuck size: 40"
- - Spindle nose: Ø520 flat
- - Spindle bearing dia. : Ø200 mm
- Qualitative Machine Benefits:
- - Rapid (x / y - axis): 24 m/min
- - Traverse (x / y - axis): 610 / 950 mm
- - Feed motor (x / y - axis): 6 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
