Huron EX-C

Photo Gallery

Huron - EX-CES-MIL-HUR-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Huron EX-C For Sale | gindumac.com

Show in original language

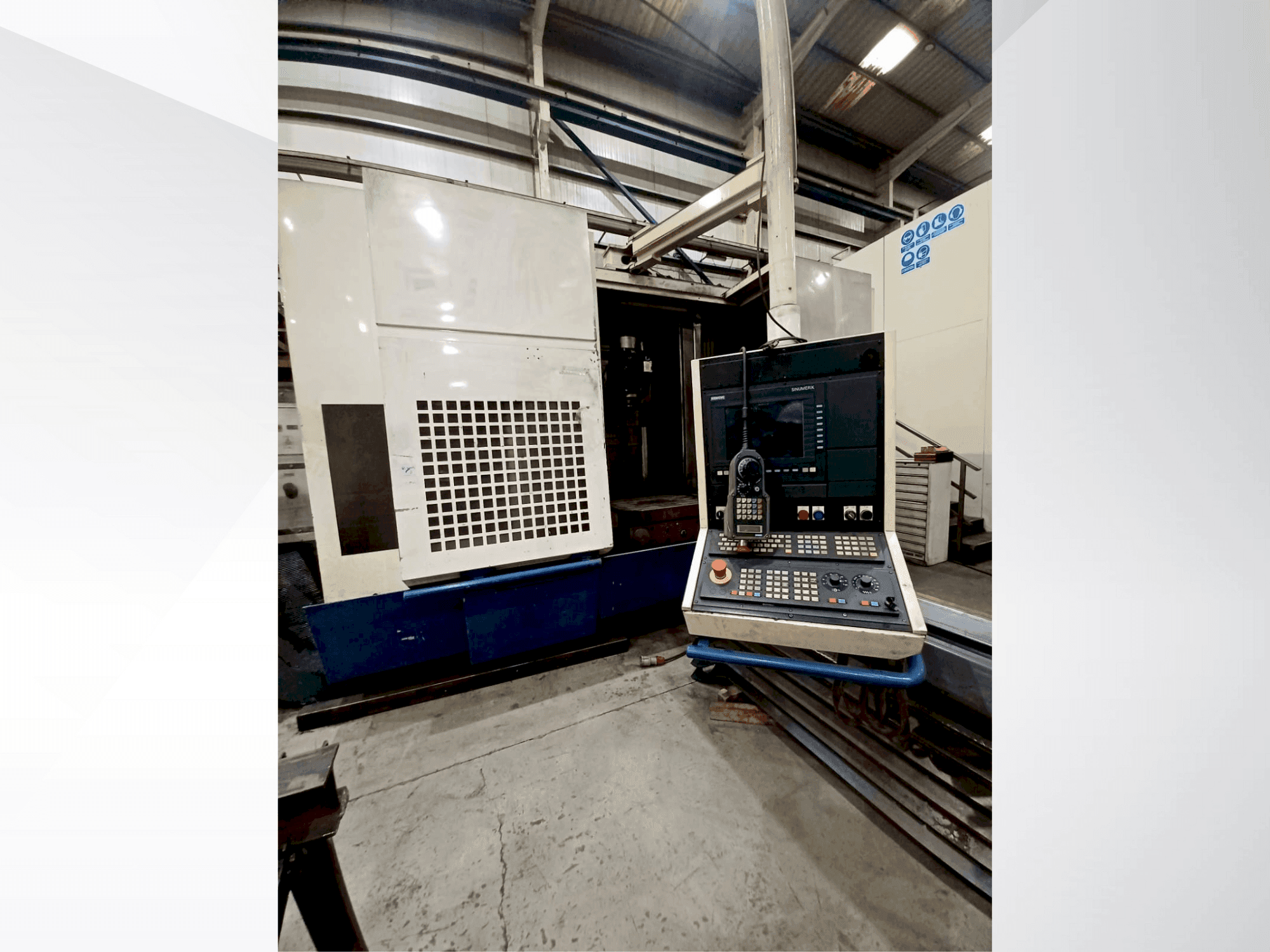

This 5-axis Huron EX-C vertical machining center was manufactured in 1998. Ideal for complex and precise machining tasks, it offers enhanced flexibility and productivity for your workshop. If you are looking to get high-quality milling capabilities, consider the Huron EX-C machine we have for sale. Contact us for more information.

Overview

brand: Huron
year: 1998
MODEL: EX-C
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Huron EX-C

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840-D

Dimensions

Table Length: 2000 mm
Table Load: 3000 kg
Table Width: 600 mm

Movement

A-axis Max: 360000°
B-axis Max: 100°
B-axis Min: 0.001°
Number of Axes: 5
X-axis Travel: 1600 mm
Y-axis Travel: 700 mm
Z-axis Travel: 800 mm

Technical Specification

Tool Stations: 32

Additional Information

Machine Benefits

Qualitative Machine Benefits

Various hsk63-a tooling (+/- 50 tool holders, some unused)
Technical documentation
2 fixed linear tables (x-y): 520 x 700 mm each
Integrated central rotary table (x-y): 800 x 700 mm
T-slot type, number, and spacing: 18h8 / 6 slots / 100 mm
18h8 / 6 slots / 100 mm
Total installed power: 60 kw, 380v, 50 hz
Required installation space (l x w): ~6000 x 4100 mm x 3720

Technical Machine Benefits

Min-max table-to-spindle height (horizontal spindle): 505 - 1305 mm
Min-max table-to-spindle height (vertical spindle): 230 - 1030 mm
High-quality, robust machine
Mobile column and fixed table design
Table composed of three sections: 2 fixed linear sections and 1 centrally controlled rotary section
Tilting spindle head with a high-speed, high-power electro-spindle
Spindle cooling system
Internal high-pressure cooling through the spindle
Chip extractor
External cooling system

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
