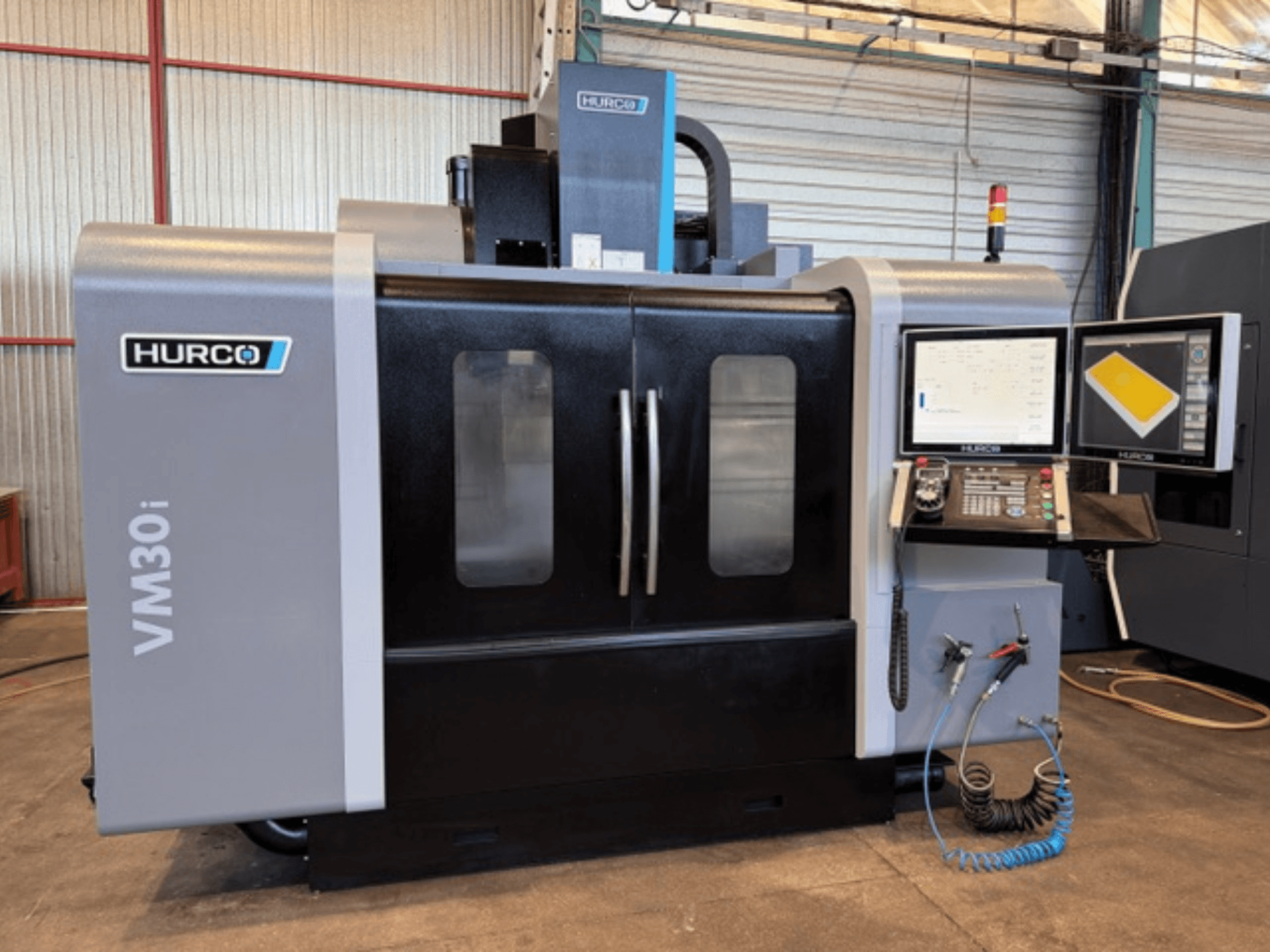

This 3-axis Hurco VM30I was manufactured in 2019. It features a table size of 1320 × 508 mm and a maximum table load of 1,800 kg. With an impressive X travel of 1270 mm, Y travel of 508 mm, and Z travel of 508 mm, this vertical machining centre is designed for high-quality machining capabilities. Consider the opportunity to buy this Hurco VM30I vertical machining centre. Contact us for further details.
Overview
- brand: Hurco
- year: 2019
- MODEL: VM30I
- production hours: 2500
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
Technical Information - Hurco VM30I
Dimensions
- Machine Weight: 5000 kg
- Table Load: 1800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Power: 15 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table size: 1320 × 508 mm
T-slot size: 5 × 18 mm
Max spindle torque: 82.3 Nm @ 1740 rpm
Tool changer: 24-position random arm ATC
Max tool diameter: 80 mm
Max tool length: 250 mm
Rapid traverse: 28 m/min
Through-spindle coolant: 20 bar
Spindle chiller
Control: WINMAX 5 CNC with dual screens
Air-conditioned electrical cabinet
Electronic handwheel
RJ45 & USB ports
3-color status light
Coolant and air guns
Dimensions: 4100 × 2500 (3300) × 2550 mm
Condition: Excellent
Additional equipment
Screw chip conveyor
Machine vise
Set of tool holders
3D probe
Documentation (CD-ROM)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
