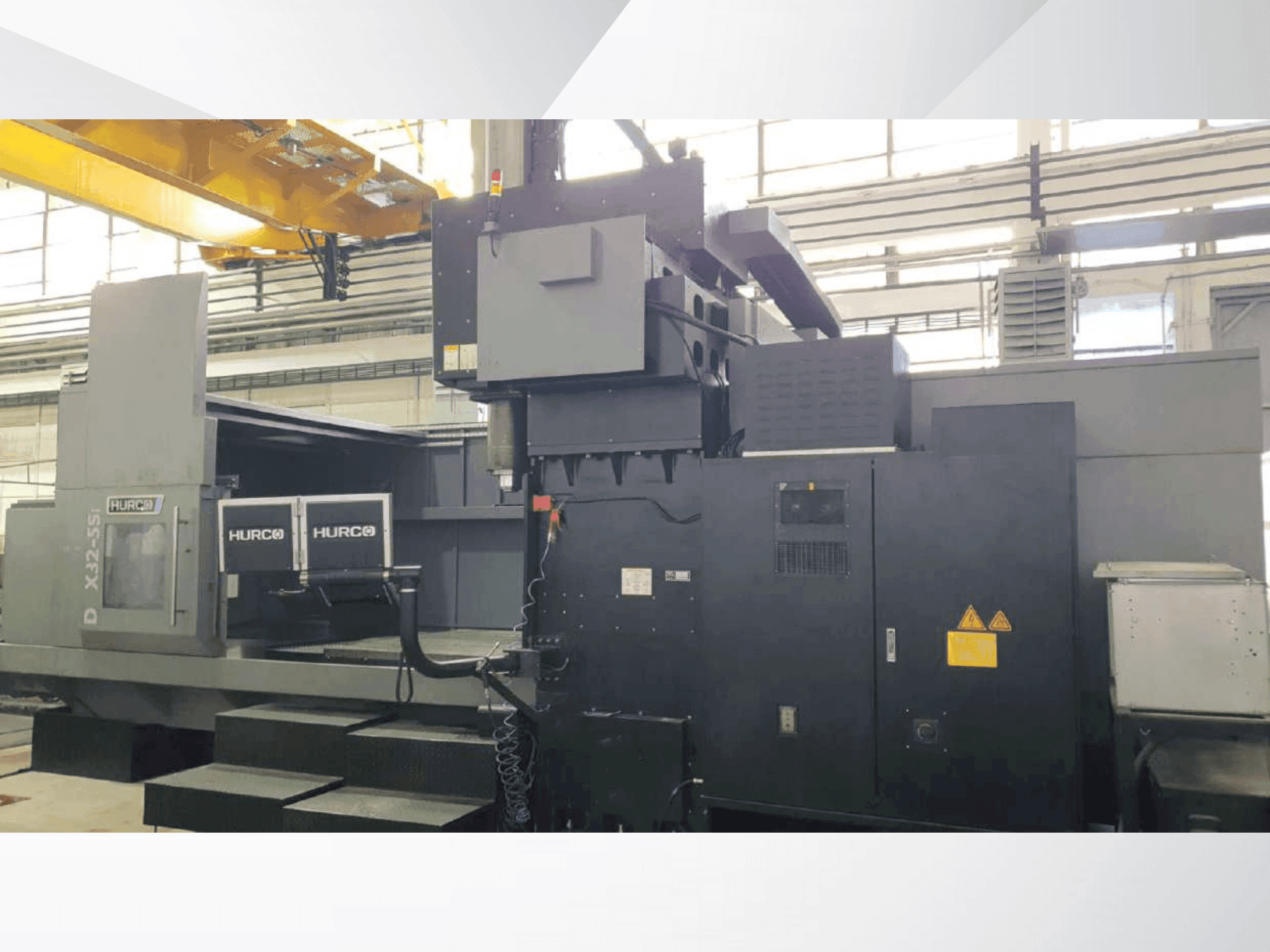

This 3-axis Hurco DCX32-5Si vertical machining centre was manufactured in 2016. It features a large work surface of 3,000x1,700 mm, supports a maximum table load of 11,000 kg, and offers extensive travel distances with X at 3,200 mm, Y at 2,100 mm, and Z at 920 mm. Equipped with a high-speed main spindle capable of 18,000 rpm and a robust 40-position tool magazine, this machine is ideal for complex, large-scale machining tasks. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2016
- MODEL: DCX32-5Si
- production hours: 27000
- application type: Milling
- Location: Romania
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco DCX32-5Si
Control Unit
- Control Brand: HURCO
- Control Model: WinMax 5
Dimensions
- Machine Depth: 9960 mm
- Machine Height: 4724 mm
- Machine Weight: 35000 kg
- Table Length: 3000 mm
- Table Load: 11000 kg
- Table Width: 1700 mm
Movement
- X-axis Travel: 3200 mm
- Y-axis Travel: 2100 mm
- Z-axis Travel: 920 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Number of Tools: 40
- Spindle Power: 35 kW
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- Oversized linear guides and ultra-rigid roller linear guides
- Ball screws with double nut and automatic centralized lubrication system
- Screw chip conveyor and chip conveyor with scrapers
- Machine interior washing system with emulsion gun/compressed air
- Ring with emulsion nozzles in the shaft head
- Large side doors for access
- LED-illuminated workspace
- Heat exchanger in the electrical cabinet
- Premium remote control equipped with LCD display
- IKZ-20 Spindle cooling CTS20 (20 bar)
Machine Benefits
Qualitative Machine Benefits
- Wired remote control
- Advanced graphic verification with 3d part model simulation
- Conversational pocket and island programming
- Ac main spindle motor with double coil
- Main shaft cooling system
- Automatic tool change
- Laser tool length measurement (renishaw nc4)
- Synchronized rigid threading without special tool
- Part measurement with probe, radio connection (renishaw rmp 40)
- Linear scales for x, y, and z axes
Technical Machine Benefits
- Work advances: 10 m/min
- X/y/z positioning accuracy: 0. 025 mm
- Repeatability: 0. 015 mm
- T-channels: 7x22x220 mm
- Atc tool change time (dry): 5 sec
- Advanced graphic verification and simulation features
- Extensive material and tool library
- Enhanced control and measurement systems
- Robust construction and maintenance features
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
