Hurco TMX 8MY Turning

Show in original language

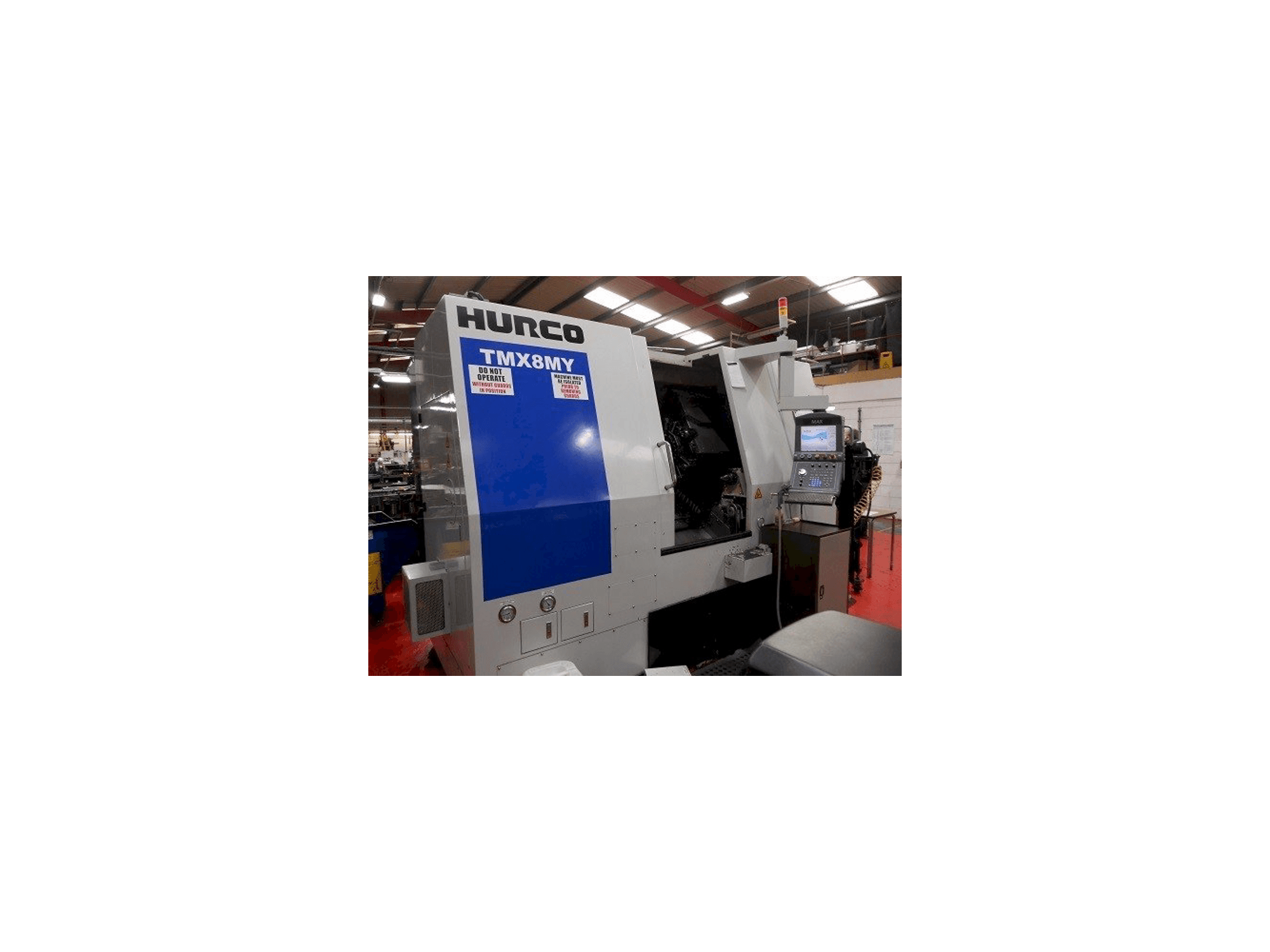

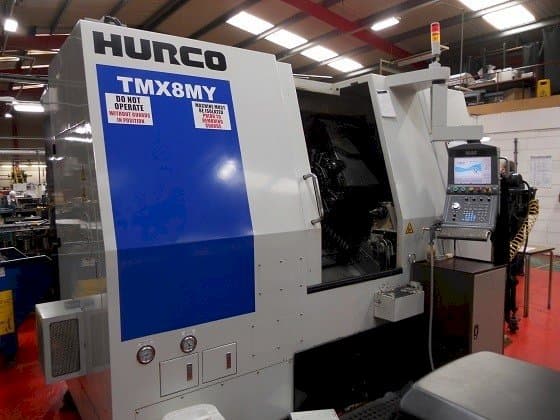

This Hurco TMX 8MY lathe machine was manufactured in 2012 in Taiwan. It is operated through a Hurco WinMax control unit. This 3 axis machine has a spindle speed up to 4500 rpm. It is in a very good working conditions.

Overview

brand: Hurco
year: 2012
MODEL: TMX 8MY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco TMX 8MY

General Data

Measurements width: 3149 mm
Measurements depth: 2377 mm
Measurements height: 1208 mm
Machine weight: 6068 kg

Control Unit

Model: Winmax
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 290 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 558 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 508 mm
- - Maximum cutting diameter 335 mm
- - Maximum cutting length 527 mm
- - Bar capacity 64 mm
- - Spindle motor 30 hp
- - 4000 rpm milling
- - 3-jaw chuck diameter 200 mm
- - 0. 001 degree c axis
- - Tool setter, parts catcher
- - Tailstock, tooling
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
