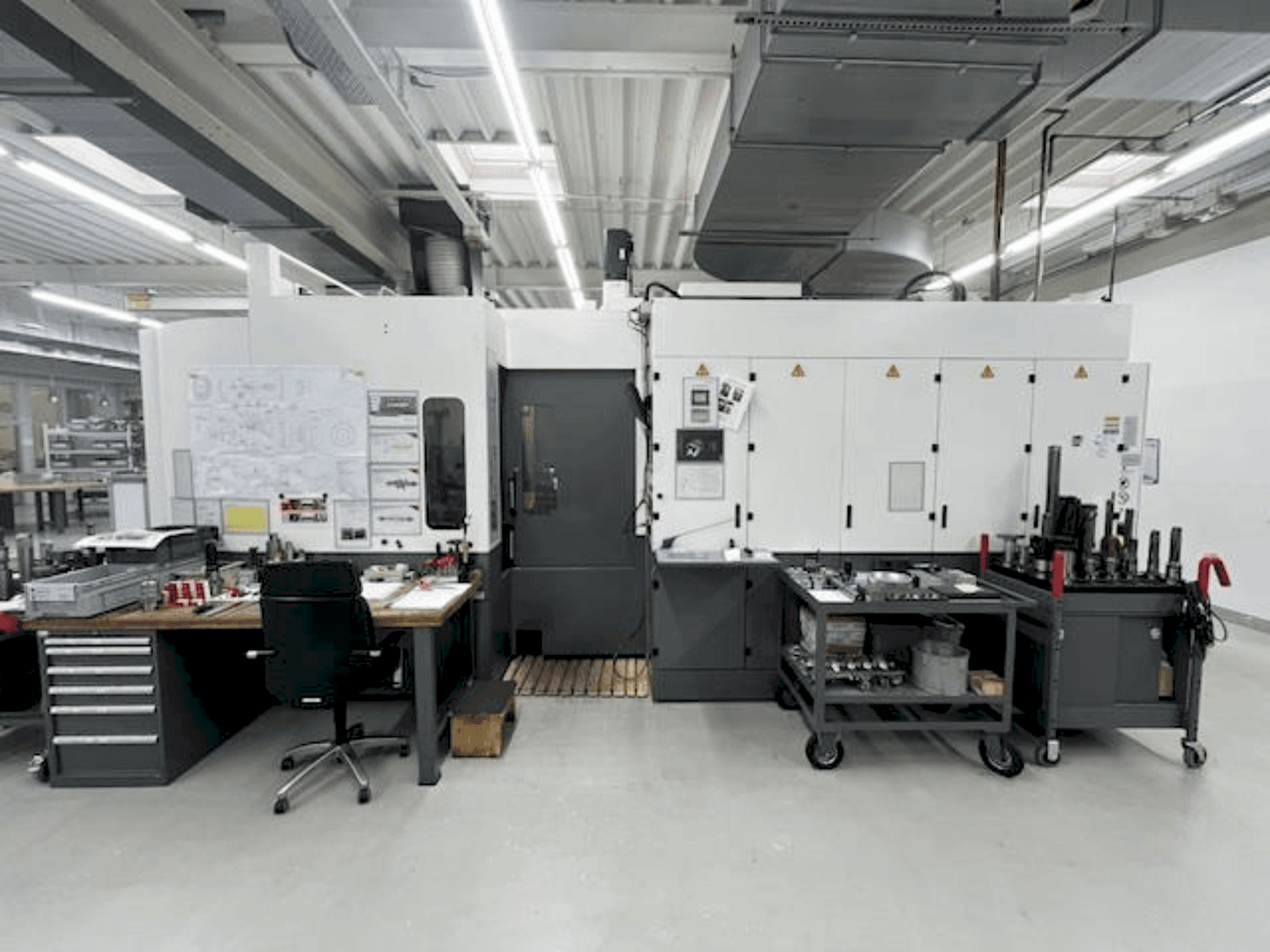

HULLER HILLE - Nbh 170DE-MIL-HUL-1998-00001

Additional equipment

• Table: 1 NC Table (B-Axis): Smallest Step Size: 0.001 degrees / Repeatability: ± 0.001 degrees / Accuracy Across All Positions: ± 0.002 degrees / Allowable Moments on Locked Table: Max Tangential Moment: 7000 Nm/ Max Tilting Moment: 16000 Nm
• Clamping Forces: At Table: 147000 Nm / At Pallet: 84600 Nm
• Tools: Tool Holder: HSK-A100, per DIN 69 893 / Tool Magazine holds 2 magazine cassettes / 1 Magazine Cassette with 50 tool slots for SK50 tools / Tool Cone Cleaning System for HSK-A100
• Coolant System: with integrated chip conveyor / Coolant Pump: Q = 30 l/min, 10 bar for internal and external coolant supply via the work spindle
• System Pressure: Up to 50 bar for internal coolant supply / Flow Rate: 30 l/min at 10 bar to 10 l/min at 50 bar
• Filter: Bagless trough belt filter / 2 Cross Conveyors in the X-axis / Chip Conveyor with 1200 mm discharge height
• Automatic Central Lubrication
• Extraction Connection for oil and coolant mist separator
• Rotating Clear View Window: VISIPORT

Machine Benefits

Technical Machine Benefits

• Spindle stock with ceramic bearings
• Power: 36. 0 kw (100% duty cycle)
• Torque: 344 nm (100% duty cycle)
• Extension of the base machine: y = 800 mm
• 180° pallet change system: with 4 x 90° pallet rotation mechanism / 2 pallets with clamping surface of 500 mm x 630 mm
