➤ Used HOMAG WEEKE BHX 055 For Sale | gindumac.com

Show in original language

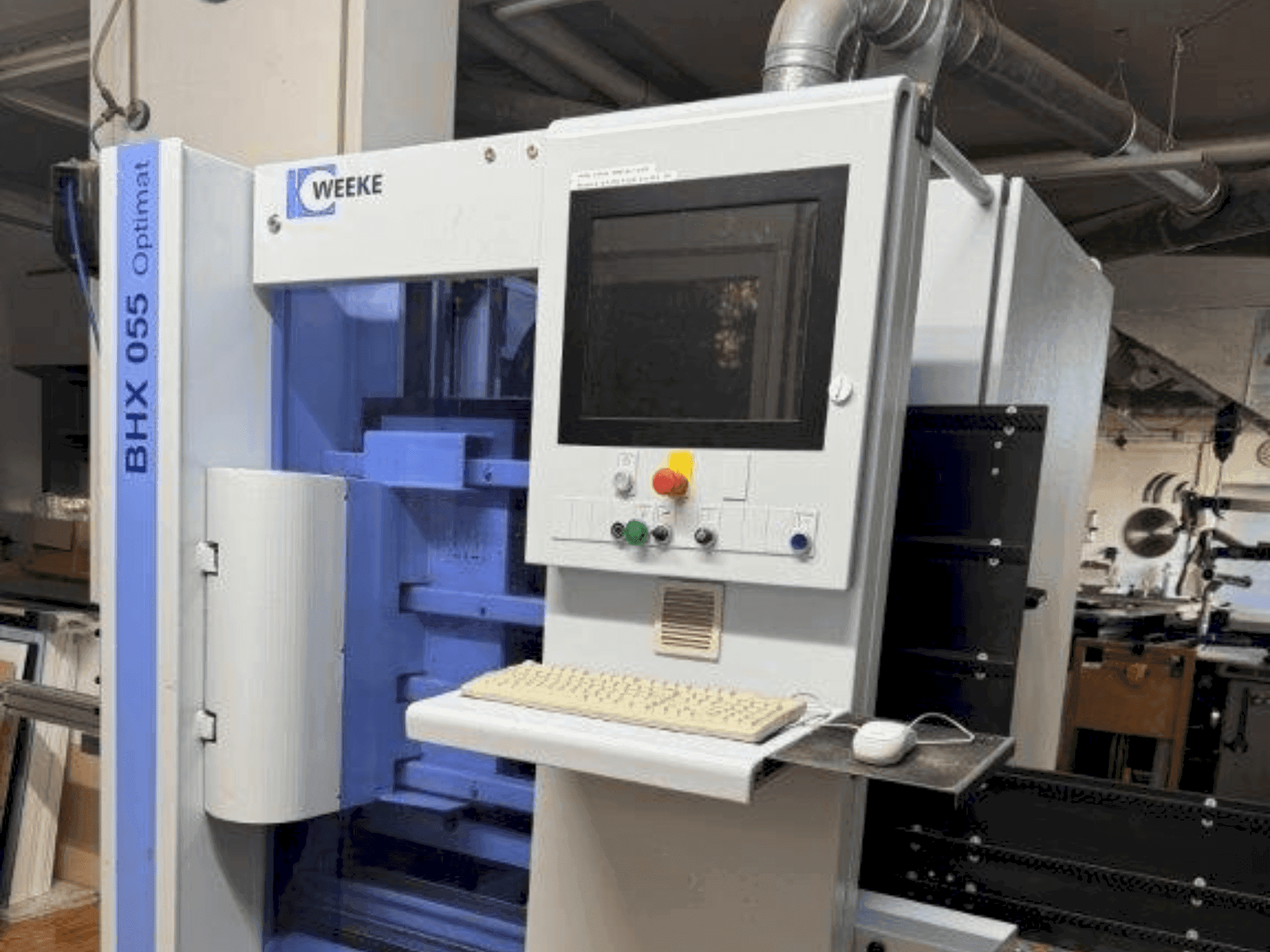

This 3-axis HOMAG WEEKE BHX 055 was manufactured in 2012. It features a vertical drilling gear with high-speed selectable spindles and a grooving saw integrated into the drilling head. The milling motor ranges from 6,000 to 18,000 rpm. It includes a Power Control PC 85 with a 17-inch TFT screen and Woodwop software for CNC program creation. Consider the opportunity to buy this HOMAG WEEKE BHX 055 CNC processing center. Contact us for more information.

Overview

brand: HOMAG WEEKE
year: 2012
MODEL: BHX 055
application type: CNC Wood Machining
Location: Germany
machine type: CNC Processing Center

Technical Information - HOMAG WEEKE BHX 055

Main drive

Number of axis: 3

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Minimum workpiece length: 200 mm
- - Maximum workpiece length: 3050 mm
- - Minimum workpiece width: 70 mm
- - Maximum workpiece width: 850 mm

Extra information

- Tools Vertical Drilling Gear: V13 High Speed, with individually selectable spindles Spindle Distance: 32 mm Horizontal Drilling Gear 4 spindles in X direction 2 spindles in Y direction Grooving Saw: Integrated in the drilling head, with Diameter 100 mm Milling Motor: 5 kW, 6000 - 18000 rpm with manual hydro quick-change system Control Unit Control: Power Control PC 85 Screen: 17-inch TFT screen Woodwop: For graphical, dialogue-oriented creation of CNC programmes Features: Graphical user guidance for managing tool data and workpiece length-dependent machining in the X direction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
