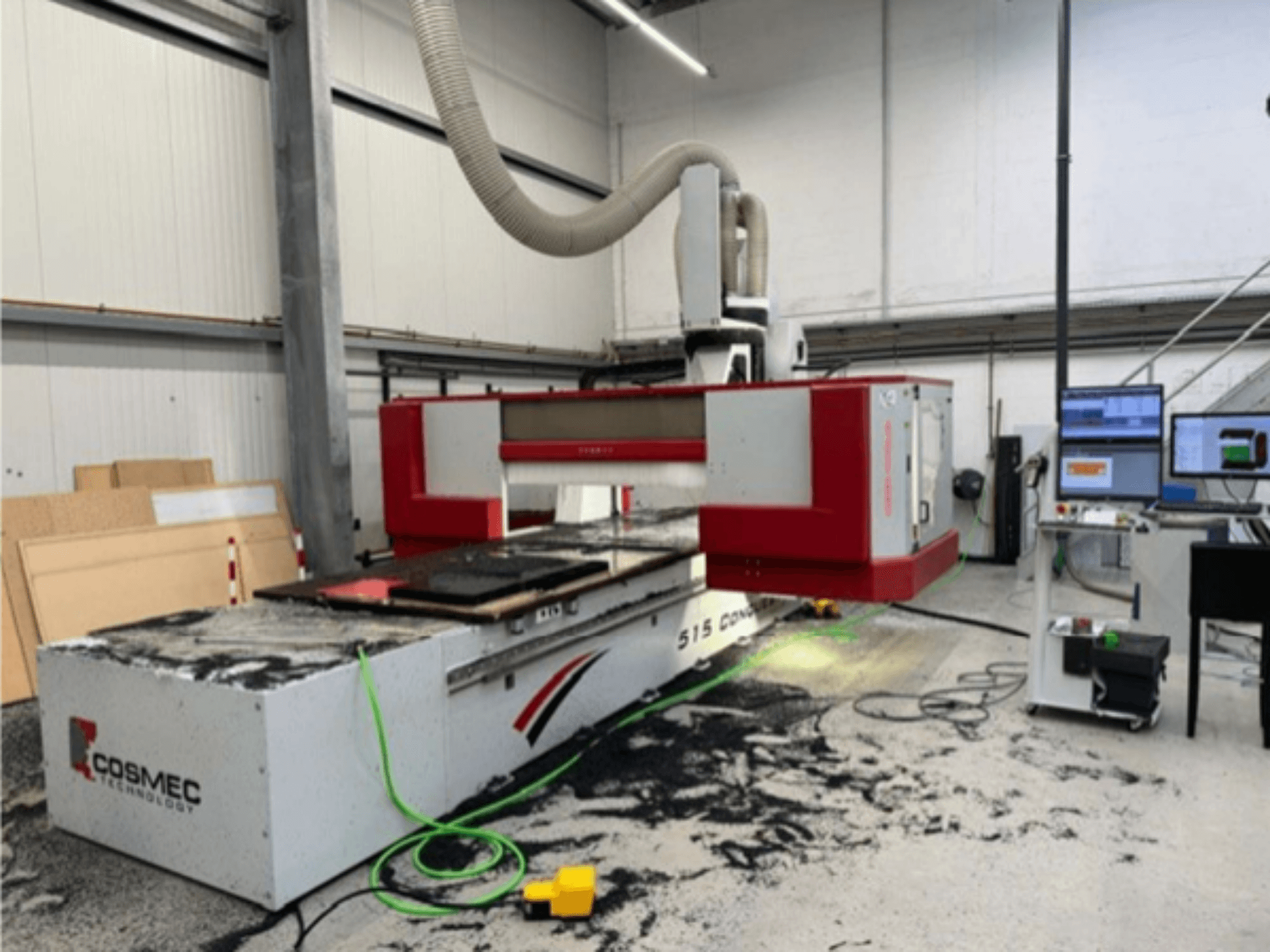

COSMEC - Conquest 515DE-CNC-COS-2021-00001

• Applications: Machining solid wood, wood-based materials, and various plastics

• Configuration: Fixed work table, double-sided driven traveling gantry, continuously interpolating 5-axis milling spindle

• Base/Gantry: Ribbed welded steel construction for high rigidity

• Guide system and drives:

  • X/Y axes: Rack and pinion with servo drives

  • Dual gantry motorization on X: two synchronized servo motors

  • Z axis: Ball screw with servo drive

  • Dust-protected linear guides

• Safety: Three-part safety mats for loading in inactive area; traveling partial enclosure with Lexan protective window

• Central lubrication: Automatic

• Vacuum system: For pendulum machining with constant suction power in both working areas

• Operation: Cable-operated remote control for basic functions; mobile control panel

• Electrical: Dust-protected control cabinet (CE) to IP55 with air-conditioning unit

• CNC control: OSAI Open Numerical Control

• 5-axis fork head Z 700:

  • Brushless servo drives on B and C axes

  • Max rotation speed: 750°/2 sec

  • C-axis rotation: +/- 360°

  • B-axis (swivel) rotation: +/- 110°

• Technical data:

  • Vector speed: 80 m/min

  • Max workpiece height: 500 mm

  • Machining area: 4210 x 1605 mm (enlarged working area)

• Utilities/requirements:

  • Compressed air supply: 7 bar

  • Extraction capacity: min. 2200 m3/h; extraction speed min. 28 m/s

  • Suction connection: Ø 160 mm

• Work table (Comec designed):

  • Phenolic resin grid table, 50 x 50 mm grid

  • Compatible with Cosmec suction system and templates

  • Divided into two working areas

  • Threaded holes for mechanical fixing; 3 retractable stops

• Main spindle:

  • 5-axis, liquid-cooled, HSK 63 F

  • ceramic bearings; CW/CCW rotation

• Extraction hood: NC-controlled, height-adjustable

• Tool changers: 2 integrated 12-station tool changers for HSK 63 F

  • Max tool Ø 150 mm (if adjacent station free)

  • Max tool Ø 120 mm (if adjacent station occupied)

  • Max tool + holder weight: 40 kg

• Tool measurement: Automatic tool length measurement station

Additional equipment

• Vacuum pump: 250/300 m³/h (50/60 Hz), 5.5 kW

• Software: Latest version of 5-axis simultaneous machining software (via maintenance contract)
