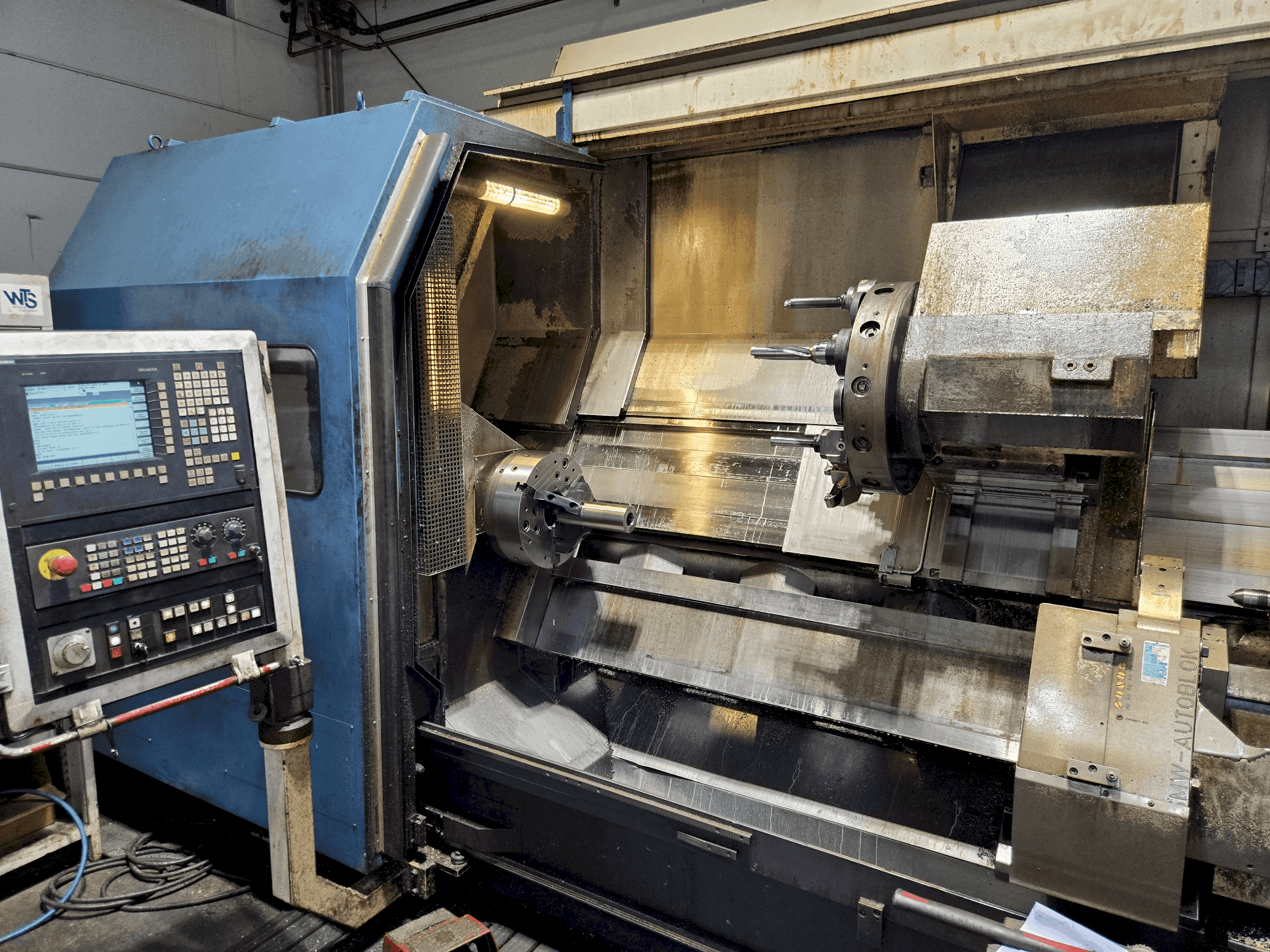

This HEYNUMAT 21 U/2500 horizontal turning machine was manufactured in 2004. It features a spindle bore of 105 mm and a centre distance of 2500 mm, suitable for various turning tasks. The machine includes a CNC control Sinumerik 840C, enhancing precision and efficiency. It also comes equipped with a steady rest type SLU with a centring range of 50-295 mm. A great opportunity to buy this HEYNUMAT 21 U/2500 horizontal turning machine. Contact us for further details regarding this horizontal turning machine.
Overview
- brand: HEYNUMAT
- year: 2004
- MODEL: 21 U/2500
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - HEYNUMAT 21 U/2500
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840C
Movement
- Number of Axes: 2
- X-axis Travel: 340 mm
- Z-axis Travel: 2500 mm
Technical Specification
- Spindle Speed: 2240 RPM
Additional Information
Additional equipment
- Steady rest type SLU, single version, centring range: 50-295 mm
- Chip conveyor: Conveying direction along the machine, discharge height approx. 1200 mm
Machine Benefits
Technical Machine Benefits
- Workpiece length: 2500 mm
- Adjustable axial force: 2500-16000 n
- Spindle diameter in front bearing: 160 mm
- Spindle head: din 55022 size 11
- Quill diameter/stroke: 125/140 mm
- Tool shank diameter: 60 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
