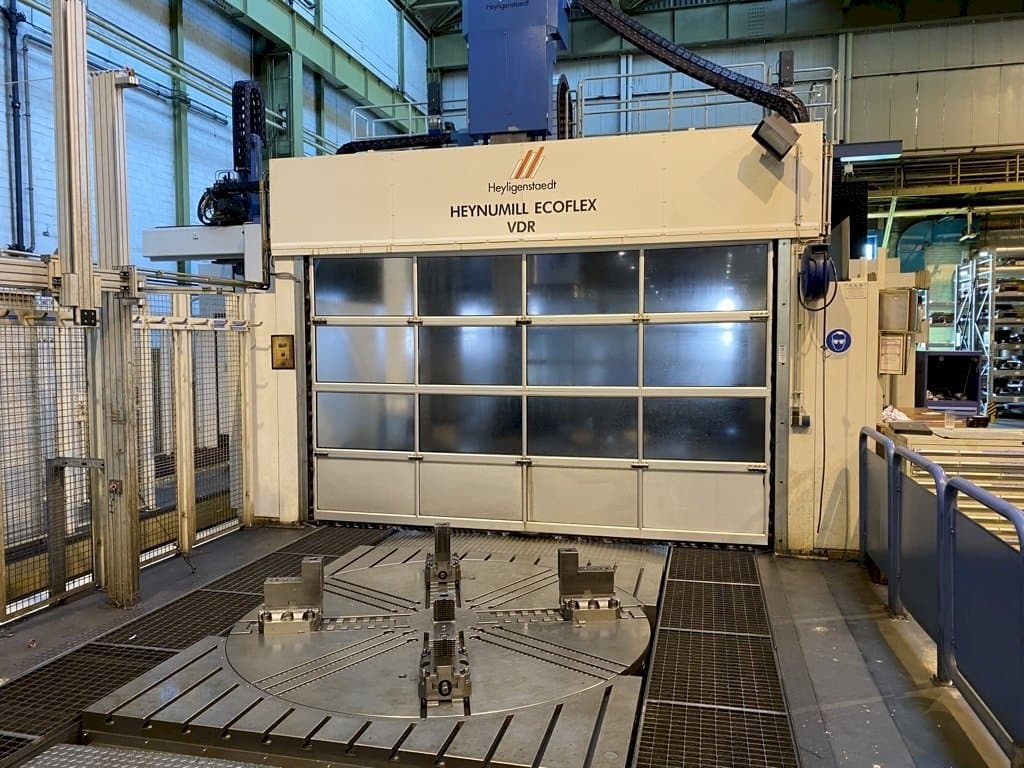

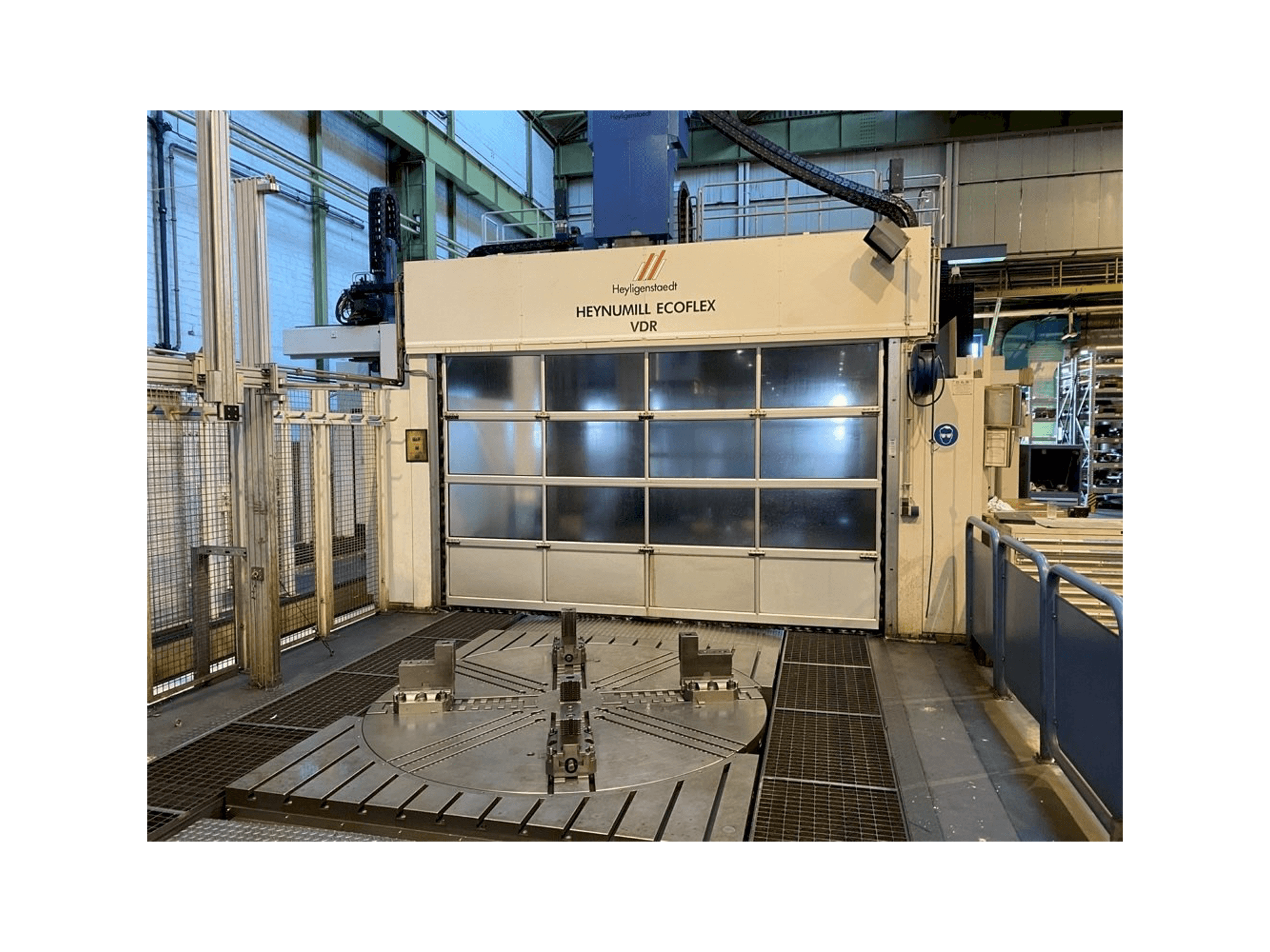

Front view of HEYLIGENSTAEDT HEYNUMILL ECOFLEX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HEYLIGENSTAEDT HEYNUMILL ECOFLEX

Photo Gallery

HEYLIGENSTAEDT - HEYNUMILL ECOFLEXDE-MIL-HEY-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
This HEYLIGENSTAEDT HEYNUMILL ECOFLEX Milling Machine was manufactured in Germany in 2009.

Show in original language

This HEYLIGENSTAEDT HEYNUMILL ECOFLEX Milling Machine was manufactured in Germany in 2009. This multiple axis machine can perform with a spindle speed up to 5000 rpm. This powerful machine incorporates an HSK 100 tool holder.

Overview

brand: HEYLIGENSTAEDT
year: 2009
MODEL: HEYNUMILL ECOFLEX
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - HEYLIGENSTAEDT HEYNUMILL ECOFLEX

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 4500 mm
X-AXIS Feed Force: 32 m/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 4000 mm
Y-AXIS Feed Force: 32 m/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 1500 mm
Z-AXIS Feed Force: 32 m/min
Z-AXIS Rapid traverse: 40 m/min
W-Axis Movement: 1500 mm
B-AXIS Movement: 360°
C-AXIS Movement: + - 110°

Table

Outer length: 2500 mm
Outer width: 3000 mm
Table load: 15000 kg

Tools

Type of tool holder: HSK 100

Additional Information

Machine Benefits

Qualitative Machine Benefits

Spindle orientation
Steel cover x axis (three-part) and bellows y axis
2 machine chip conveyors
Laser tool measurement, system: blum
Coolant supply inside and outside and coolant system
Air shower
Emulsion mist ww filter systems
Extended tool plan system
Process monitoring cameras
Adjustable crossbeam

Technical Machine Benefits

Free passage between the columns 3700 mm
1 turning table Ø face plate 1. 250 mm / max. Load 3. 000 kg
1 turning table Ø face plate 2. 500 mm / max. Load 10. 000 kg
Milling plunger Ø 480 x 580 mm
Roboter for tool change
Digital radio probe, system: renishaw rmp60 with 2 probes
Division of the hirth coupling 144 x 2,5°
Tool changer rack-type magazine 144-slot + 32-slot load module
Pick-up machining module magazine with 9 places

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
