HERMLE - C 52 UDE-MIL-HER-2015-00002

Name: HERMLE C 52 U
Brand: HERMLE
SKU: DE-MIL-HER-2015-00002
Price: 389050 GBP
Availability: InStock

£ 389,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HERMLE C 52 U For Sale | gindumac.com

Show in original language

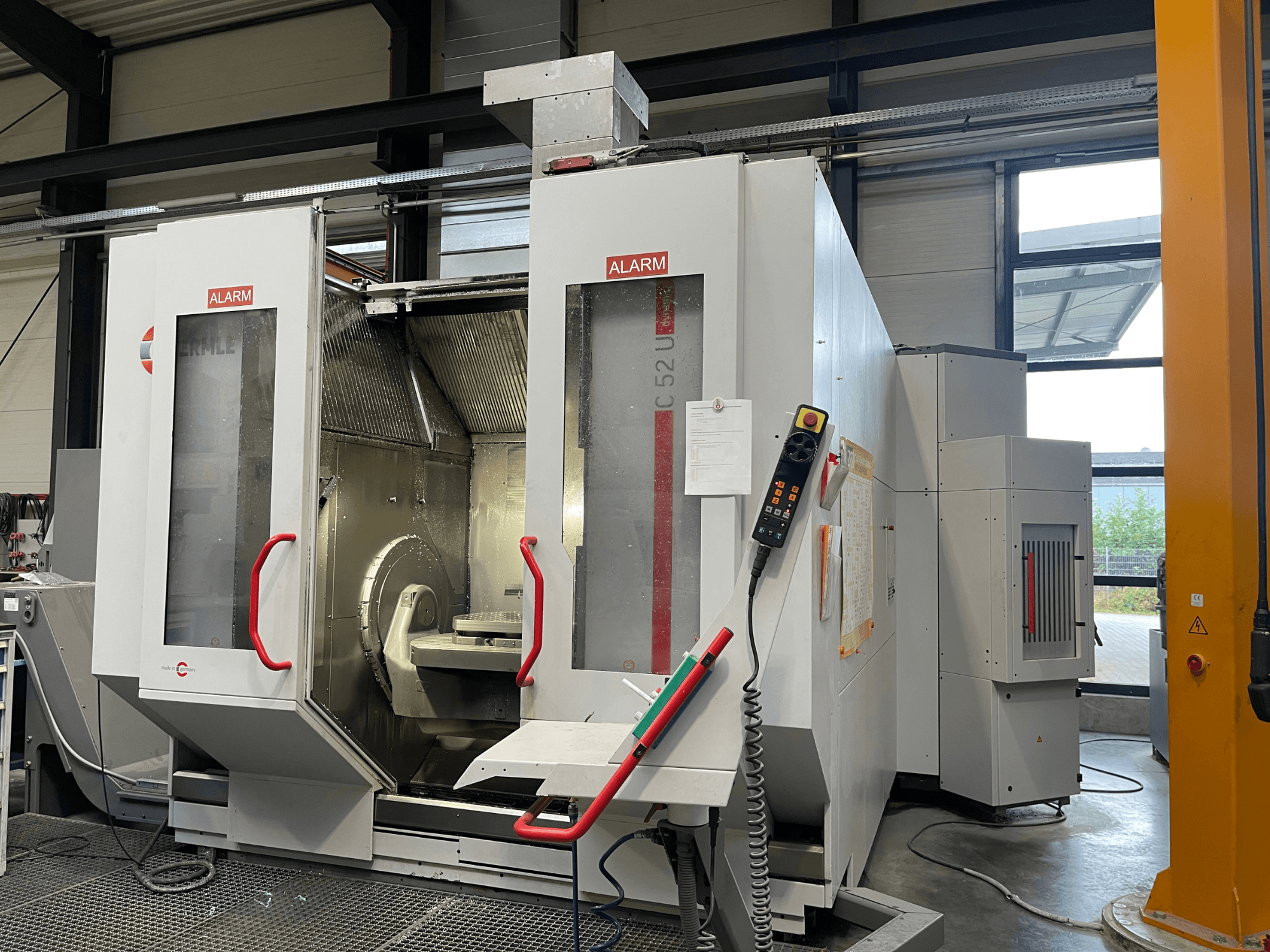

This 5-axis HERMLE C 52 U was manufactured in 2015. It features an impressive X-axis travel of 1000 mm, Y-axis travel of 1100 mm, and Z-axis travel of 750 mm. The machine is equipped with a spindle speed of 18000 rpm and a table load capacity of 2000 kg. If you are looking to get high-quality machining capabilities, consider the HERMLE C 52 U vertical machining centre we have for sale. Contact us for further details.

Overview

brand: HERMLE
year: 2015
MODEL: C 52 U
production hours: 45092
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
Available from: 01/10/2026
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 52 U

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 21500 kg
Table Load: 2000 kg

Movement

Number of Axes: 5
X-axis Travel: 1000 mm
Y-axis Travel: 1100 mm
Z-axis Travel: 750 mm

Technical Specification

Spindle Power: 35 kW
Spindle Speed: 18000 RPM
Taper Size: HSK 63
Tool Stations: 60

Additional Information

- Main Drive Power (100%/20% ED): 17.5 / 35 kW

- Torque (100%/20% ED): 108 / 215 Nm

- Table Clamping Surface: Ø 1150 x 900 mm

- Swivel Range: +100° to -130°

- Tool Places in Internal Magazine: 60

- Tool Places in Additional Magazine (ZM135): 135

- Max. Tool Diameter: 95 mm (160 mm with free adjacent spots)

- Max. Tool Length: 500 mm

- Max. Tool Weight: 15 kg

- Internal Coolant Supply: 80 bar

- Coolant Tank Capacity: 1500 l

- Voltage: 400 V / 50 Hz

- Nominal Current: 100 A

- Power Consumption: 68 kVA (Max 71 kVA)

- Additional Equipment: Paper band filter, chip conveyor, blow-off device, glass safety windows with rotating clear view window, Heidenhain electrical thermal compensation, Heidenhain HR handwheel module, BLUM tool breakage/measurement A2, chip flushing gun, emulsion mist extraction, m&h 25.50 HSK-A63 infrared touch probe, DCM collision monitoring

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
