HELLER - MCi 25TR-MIL-HEL-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

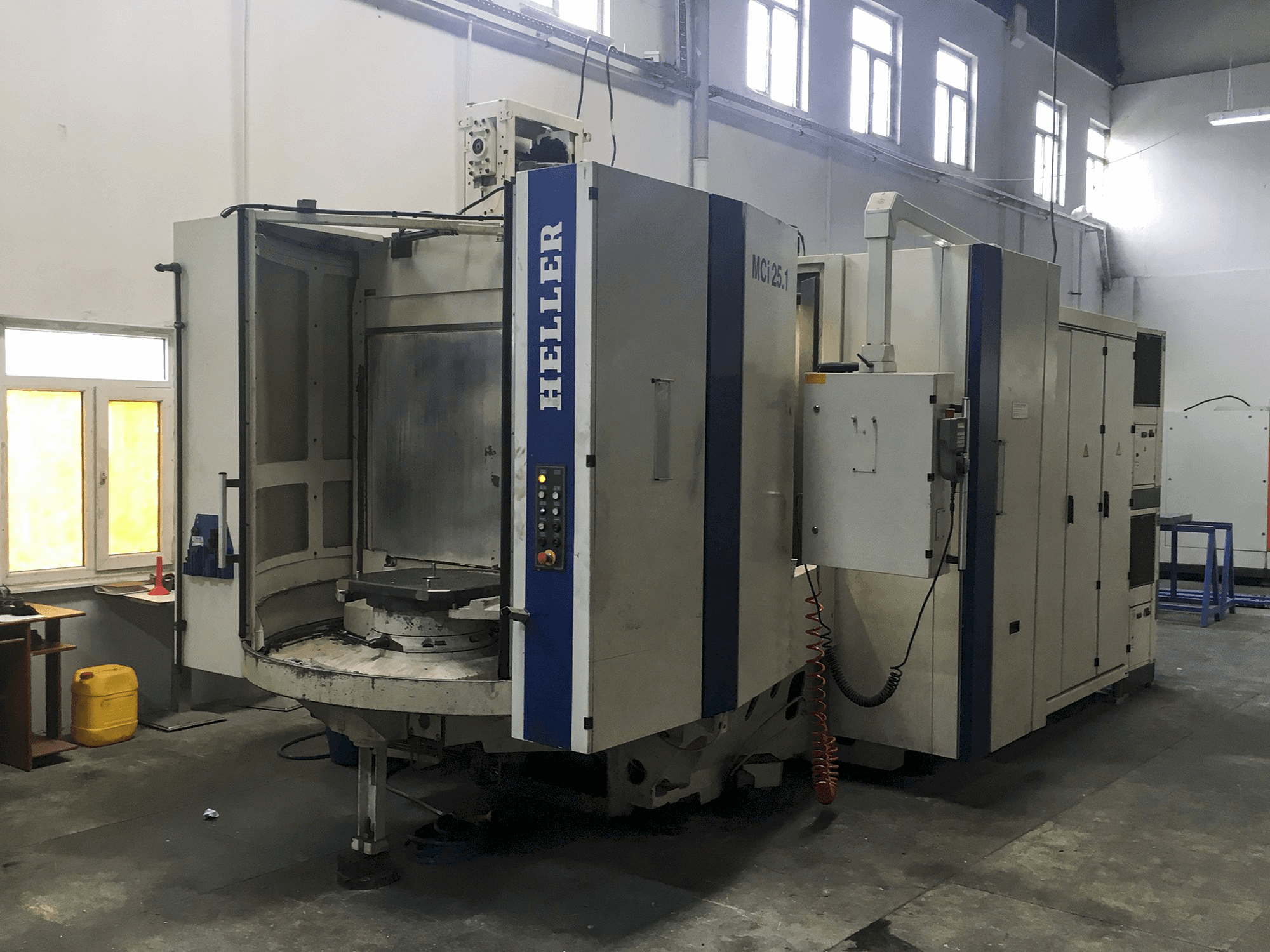

This HELLER MCi 25 Horizontal Machining Center from 2005 was made in Germany and has been operative for approximately 78000 production hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine has mainly been producing tool and machine components for the automotive industry. With 2 Control units and 2 pallets which are exchanged in ~14 seconds, this machine is suitable for serial production.

Overview

  • brand: HELLER
  • year: 2005
  • MODEL: MCi 25
  • production hours: 78000
  • application type: Milling
  • Location: Turkey
  • machine type: Horizontal Machining Centre
  • control unit brand: SIEMENS

Technical Information - HELLER MCi 25

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840D

Dimensions

  • Machine Depth: 3500 mm
  • Machine Height: 3600 mm
  • Machine Weight: 19000 kg
  • Table Length: 500 mm
  • Table Width: 630 mm

Movement

  • B-axis Max: 360°
  • B-axis Min: 0.001°
  • X-axis Travel: 800 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Max. Tool Weight: 12 kg
  • Spindle Speed: 16000 RPM
  • Through-spindle Coolant: Yes
  • Tool Stations: 80

Additional Information

Additional equipment

  • Cooling System
  • Chip Conveyer KNOLL
  • Infrared Measuring Probe RENISHAW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
