HELLER - H2000SI-MIL-HEL-2017-00001

Name: HELLER H2000
Brand: HELLER
SKU: SI-MIL-HEL-2017-00001
Price: 211470 GBP
Availability: InStock

£ 211,470

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER H2000 For Sale | gindumac.com

Show in original language

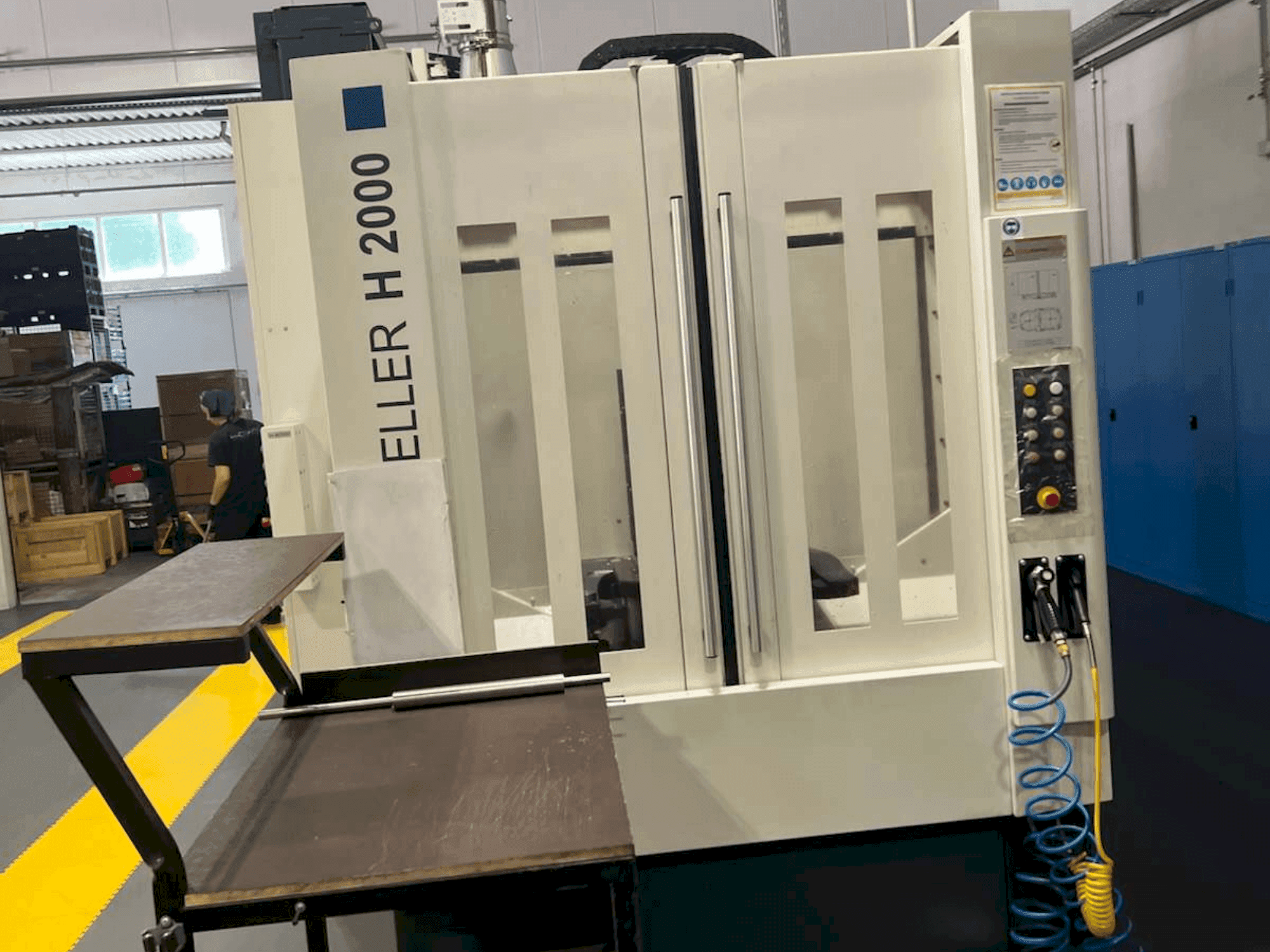

This 4-axis HELLER H2000 horizontal machining center was manufactured in 2017. It features a Siemens 840D Solution Line control, rapid traverse of 60,000 mm/min, and a spindle speed of 10,000 rpm. The machine can handle workpieces up to 720 mm in diameter and 850 mm in height, with a maximum table load of 600 kg. Consider the opportunity to buy this HELLER H2000 horizontal machining center. Contact us for more information about this machine.

Overview

brand: HELLER
year: 2017
MODEL: H2000
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER H2000

Control Unit

Control Brand: SIEMENS
Control Model: 840D Solution line

Dimensions

Table Load: 600 kg

Movement

Number of Axes: 4
X-axis Travel: 630 mm
Y-axis Travel: 630 mm
Z-axis Travel: 630 mm

Additional Information

Additional equipment

Chip conveyor
Coolant filtration with paper filter KF 400
Through-spindle coolant, 50 bar
Work area flushing

Machine Benefits

Technical Machine Benefits

Acceleration: 8 m/s²
Standard color: grey-white / sand grey / ultramarine blue
Max. Workpiece diameter: 720 mm
Max. Workpiece height: 850 mm
Nc rotary table, indexing 360000 × 0. 001°
Clamping station, manually operated pallet, 4 × 90°
2 pallets, 400 × 500 mm
Tool magazine positions: 54

Extra Information

Operating mode: Mode 3 Electrical: 50 Hz, 400 V Hydraulic interface for tool clamping, 5-fold, 60 bar Additional hydraulic control line Hydraulic connection kit with couplings (2 units) Nosepiece for multi-spindle head Infrared receiver for RENISHAW probe RENISHAW probe Drill breakage detection system Signal tower (red-yellow-green) Technology cycles package Additional operating panel at tool magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
