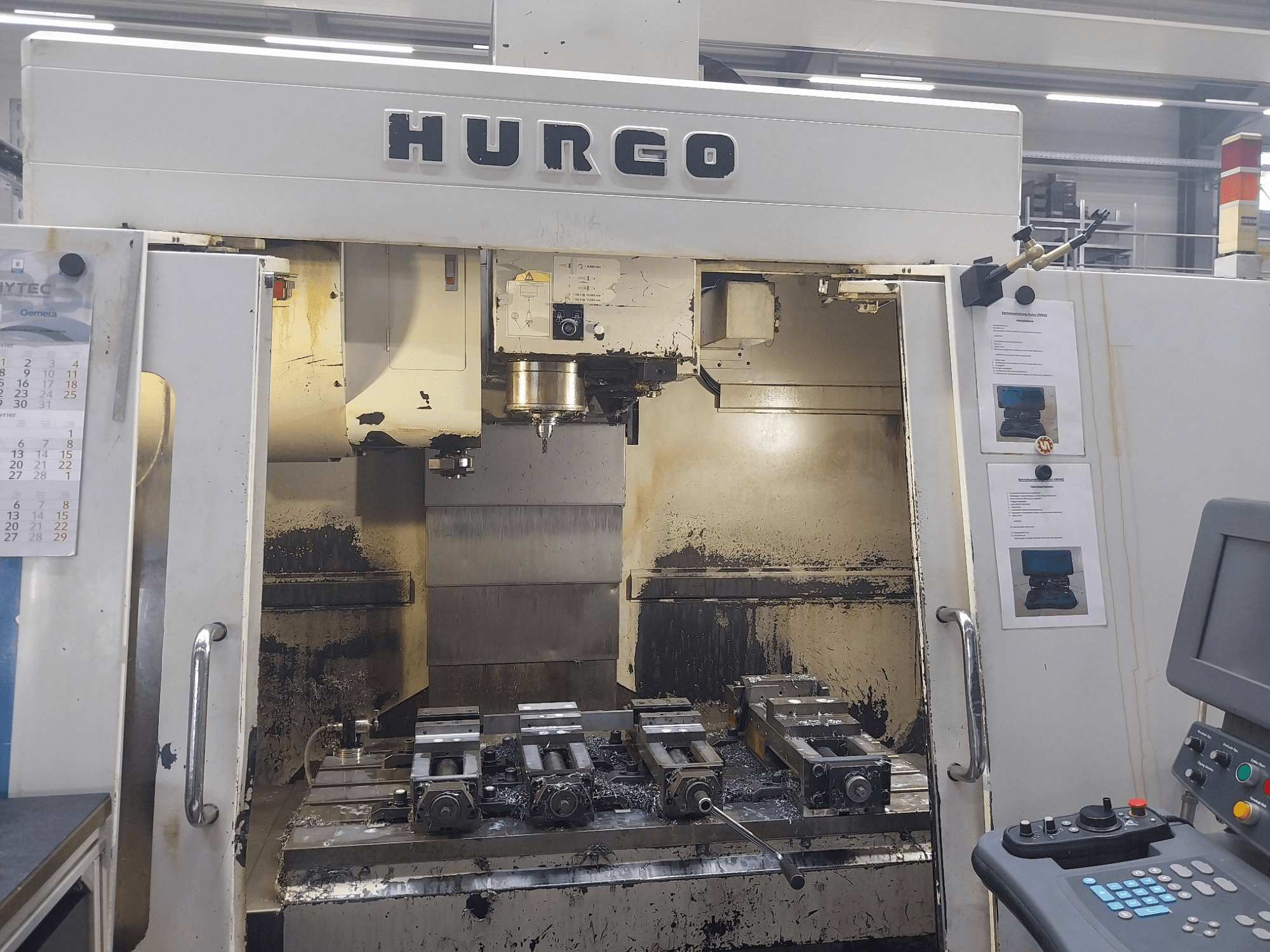

Hurco - VMX 42DE-MIL-HUR-2007-00006

Spindle Nose to Table: 150 – 760 mm

Feed Rate Programmable: 3 – 7600 mm/min

Feed Rate via Console: 3 – 11400 mm/min

Rapid Traverse X/Y/Z: 35 / 35 / 30 m/min

Guideways: Linear guideways (X, Y, Z)

Positioning Accuracy: ±0.01 mm

Repeatability: ±0.005 mm

Table Size: 1270 × 610 mm

T-slots: 5 (DIN 650) T-slot

Width: 18 mm

Distance Between T-slots: 100 mm

Maximum Table Load: 1100 kg

Automatic Tool Changer Type: Drum magazine

Number of Tool Positions: 24

Maximum Tool Diameter: 80 mm

Maximum Tool Weight: 7 kg

Maximum Tool Length: 300 mm

Tool Holder: SK 40 (DIN 69871)

Pull Stud: ISO 7388/II Type B

Coolant Tank Capacity: 340 liters

Machine-Specific Data

Spindle Drive Power (Continuous): 18.0 kW

Maximum Torque: 720 Nm

Torque at 1 min ED: 237 Nm

Spindle Speed Range: 10 – 12000 rpm

Mount Position (Assembly)

Measuring System: Photoelectric

Standard: Rotary motor encoder

Central Lubrication System: 1 pump (X, Y, Z)

Electrical Connection: 38 kVA / 55 A

Voltage: 400 V

Compressed Air Connection: 6 bar / 0.3 m³/min
