HEDELIUS BC-50
HEDELIUS - BC-50
1998
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HEDELIUS BC-50 Vertical Machining Center

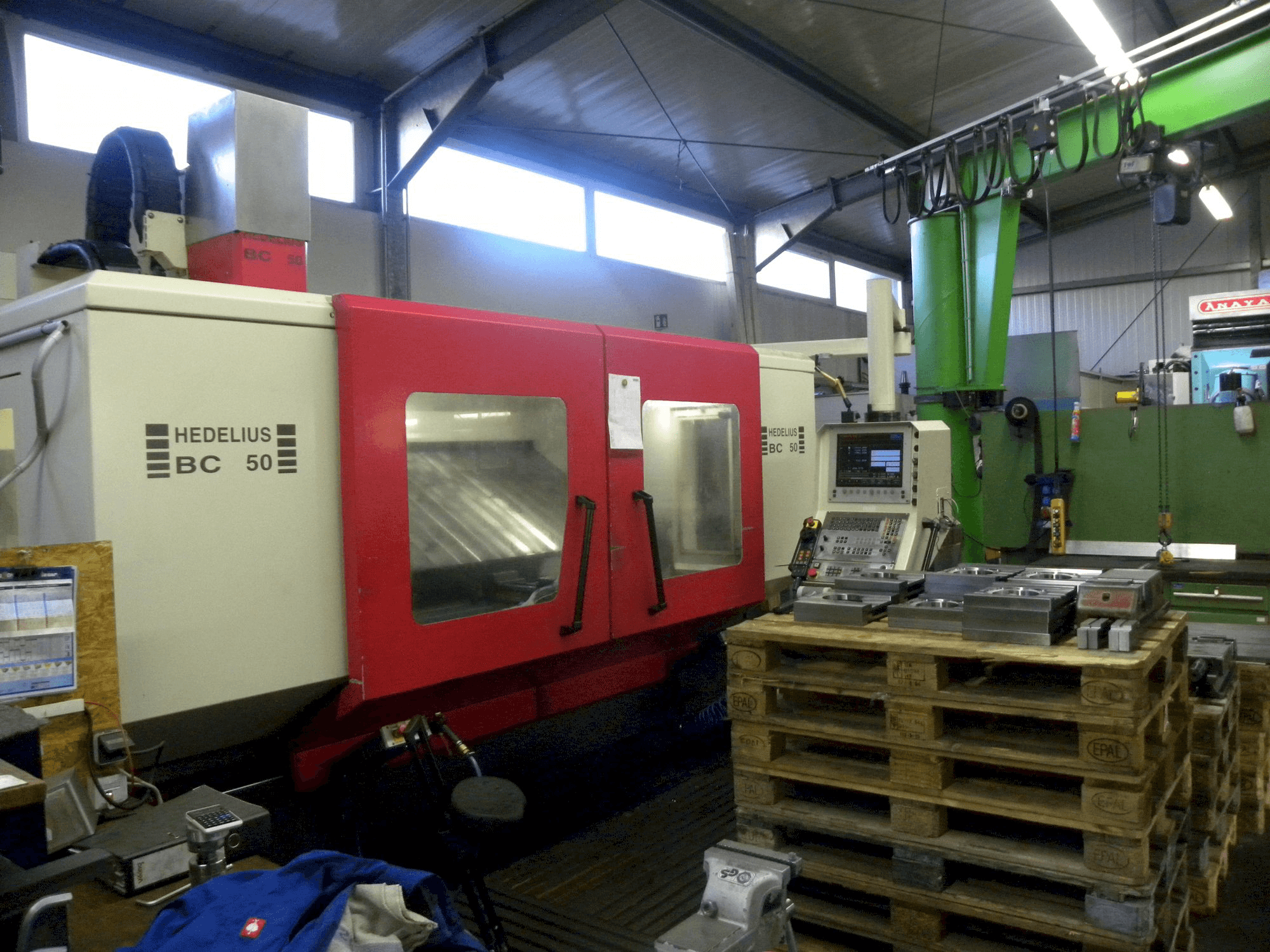

This HEDELIUS BC-50 Vertical Machining Center was made in 1998. This 5 axis machine incorporates a spindle speed range 30 - 8000 rpm, and a max. tool diameter 80 mm. It is equipped with a Heidenhain TNC 430 PA.
Overview
- brand: HEDELIUS
- year: 1998
- MODEL: BC-50
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: DE-MIL-HED-1998-00001
Technical Information
Control Unit
- Brand: Heidenhain
- Model: TNC 430 PA
Main drive
- Number of spindles: 1
- Spindle speed range: 30 - 8000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 2100/3200 mm
- Y-AXIS Movement: 520 mm
- Z-AXIS Movement: 500 mm
Additional Information
- Technical Machine Benefits:
- - The monitor is an industrial flat screen, retrofit
- - Dividing head 4+5 axis and partition
- - Max. Tool diameter : 80 mm
- - With free auxiliary platens 35 mm : 125 mm
- - Max. Tool length: 330 mm
- - Max. Tool weight: 15 kg
- - Tool holder: iso 40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
