➤ Used HAUSER S3 - 1988 - Grinder For Sale | gindumac.com

Show in original language

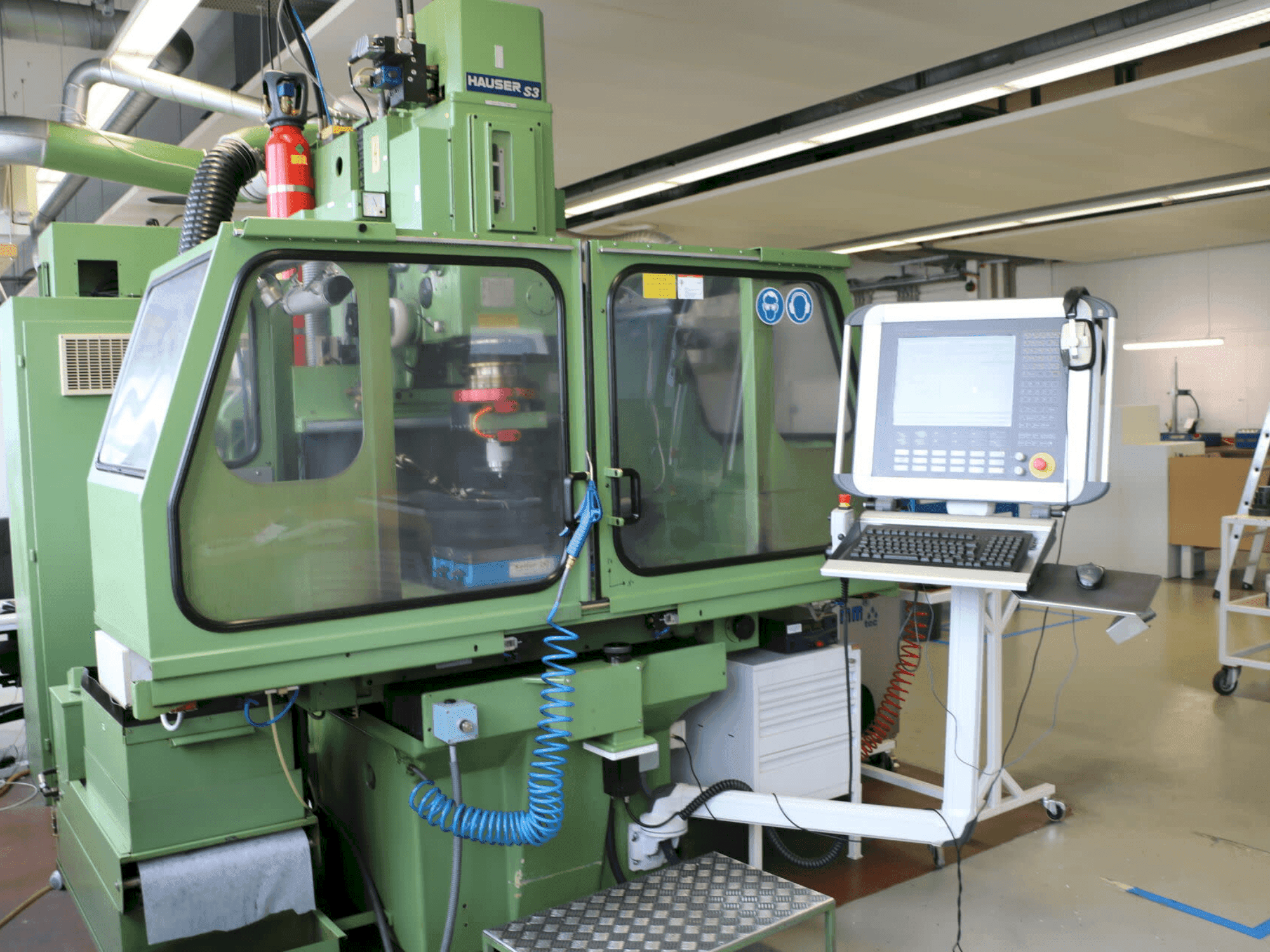

This 3-axis HAUSER S3 grinding machine was manufactured in 1988. Consider the opportunity to buy this HAUSER S3 grinding machine. Contact us for more information.

Overview

brand: HAUSER
year: 1988
MODEL: S3
application type: Grinding
Location: Slovenia
machine type: Cylindrical Grinding Machine

Technical Information - HAUSER S3

Dimensions

Table Load: 200 kg

Movement

Number of Axes: 3
X-axis Travel: 400 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Additional Information

Additional equipment

Dressing Spindle System: KAISER C 42 DC
Magnetic Clamping Plate
Fire Extinguishing Device: Kraft Bauer
Oil Mist Collector: LTA Industrial Air Cleaning

Machine Benefits

Technical Machine Benefits

Feed rates: x and y: 0 to 1800 mm/min w: 0 to 3000 mm/min
Planetary rotation: stepless 5 to 300 rpm
Stroke speed of grinding spindle sleeve with quick stroke: 0. 5 to 12000 mm/min
Stroke of grinding spindle sleeve: 110 mm
Diameter of grinding spindle sleeve: 100 mm
Table dimensions: 600 x 380 mm
Grinding spindle speeds with electric motor: 9 to 45000 rpm
Grinding spindle speeds with air turbines: up to 100000 and 160000 rpm

Extra Information

Complete Documentation: Hauser and Adcos

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
