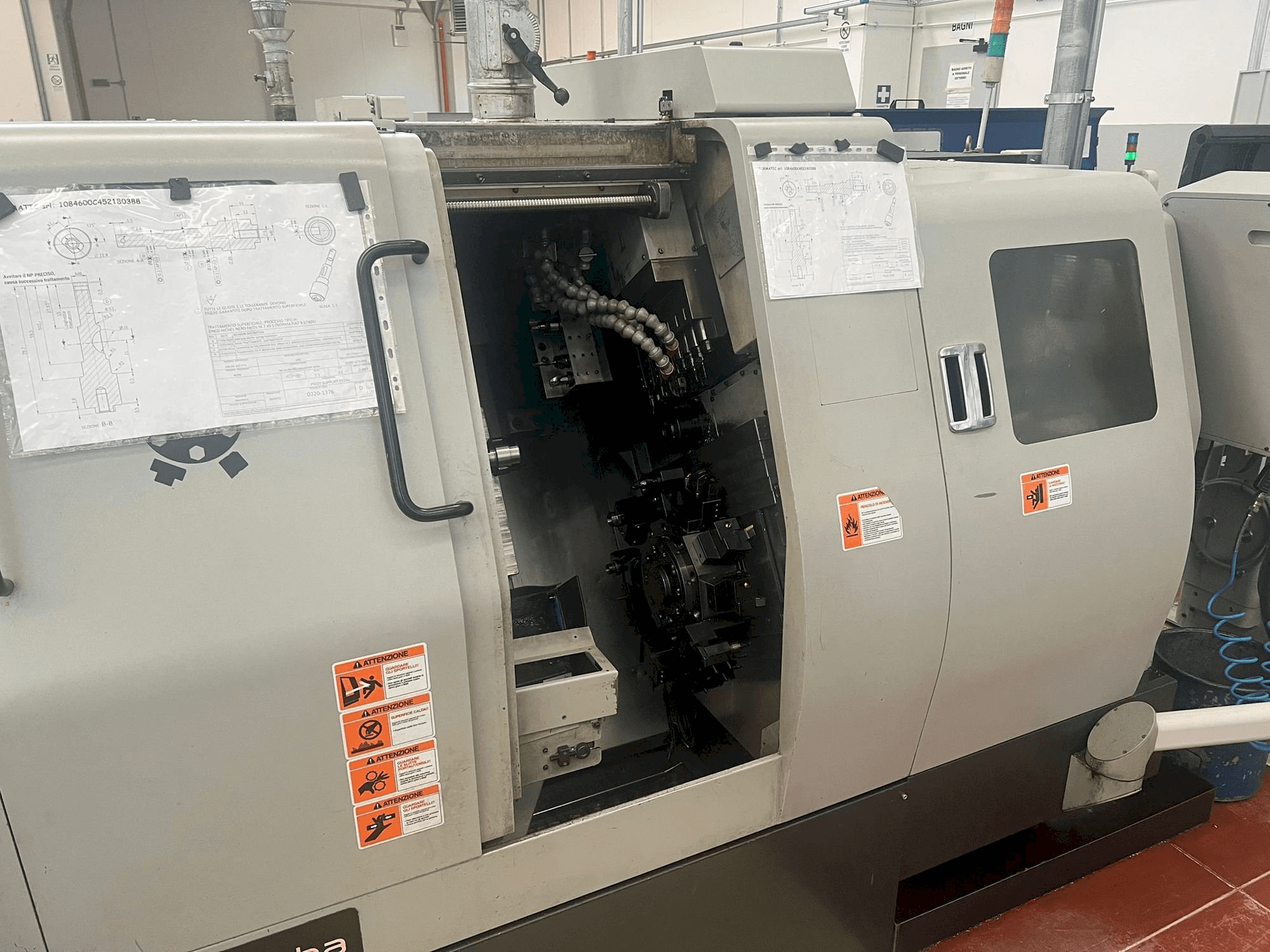

Front view of Hanwha STL 38 H  machine

Hanwha - STL 38 HIT-TUR-HAN-2014-00001

£ 66,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Hanwha STL 38 H Lathe was manufactured in the year 2014. It is equipped with a SIEMENS 840 D control unit. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: Hanwha
  • year: 2014
  • MODEL: STL 38 H
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - Hanwha STL 38 H

Control Unit

  • Brand: SIEMENS
  • Model: 840 D

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 11 Kw

Movement

  • X-AXIS Movement: 140 mm

Additional Information

    Extra information

    • - Siemens CNC model Version of the 840 D CNC Main spindle power 11 Kw Main spindle bar passage 38 mm Headstock stroke (Z1) 320 mm Number of revolutions of the main spindle 8000 Number of linear axes 8 Number of fixed tool places on the tool holder plate 5 Number of motorized tool places on the tool holder plate 4 High refrigerant pressure yes Number of tool turrets/slides 1 Number of tool places first turret/slide 10 Number of motorized first turret/slide 10 Type of tool attachment first turret/slide VDI 30 First turret/slide X-axis travel 140 mm Y axis travel first turret/slide + - 50 mm Counter spindle yes Number of counter spindle revolutions 8000 Power against spindle 11 Kw Bar passage 38 mm Counter spindle Z stroke 320 mm Number of fixed rear tools 4 Coolant used neat oil Model and brand of TOP bar loader model Record - S Belt chip conveyor Number of powered tool holders supplied 9

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
